| Prod Model: |
GPS tracking unit TK103B+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Applying Directions: |
Large Scale Vehicle Fleet/Logistics/Vehicle Renta |
| Shipment: |
DHL, UPS, EMS etc |
| Arm Alarm: |
Shock Sensor/Door/Acc Alert |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Central Lock System: |
Close/Open Car Door |
| Car Security: |
Cut Car Engine Remotely, Central Locking System |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Brand: |
Coban GPS Tracker |
| Free Tracking Platform: |
Www.Gpstrackerxy.COM with Andorid Ios Apps |
Product Description

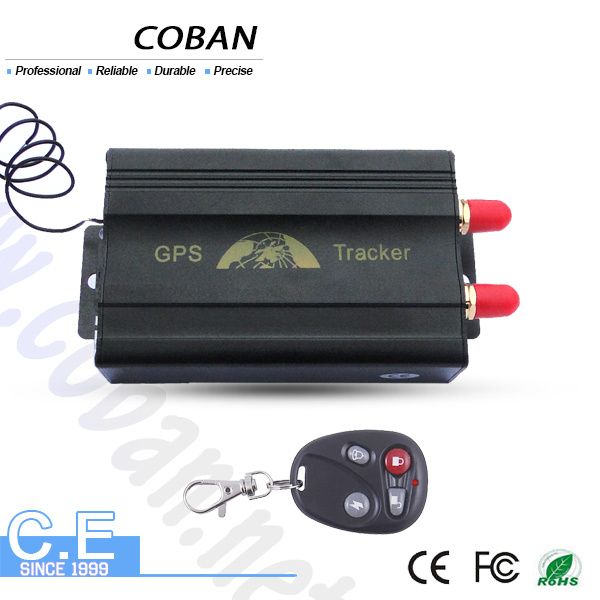

Dual SIM Card Vehicle GPS Tracking Device with Remote Controller
This tracker is a newly product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
1.Function Description
*Lock/unlock the door by SMS or by remote controller (GPS103B+) vehicle car gps tracker
* vehicle car gps tracker TK103A gps GSM tracker with SOS and dual sim card Coban gps tracker 103a
*Work with dual sim/gsm card
*Support dual fuel sensor for fuel level monitor
*Get location in real street/address name, send "address+password to tracker.
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low batttery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
New Functions:
1.ACC working inform when track with unlimited times upon time interval
2.Decide how many times of alarm message
3.Calibration of fuel sensor
4.Built in Acceleration Sensor Alarm
Optional function:
*Quiver / Sensor alarm
*Siren
*Extra remote control
*SD card
*Accident alarm
*Optional 24V relay for 24V vehicle
*USB cable to send commands on PC
tracking ways:
- SMS tracking by calling with latitude & longitude, speed, battery status, google map link
- Absolute street address by sms
- Andriod IOS app tracking

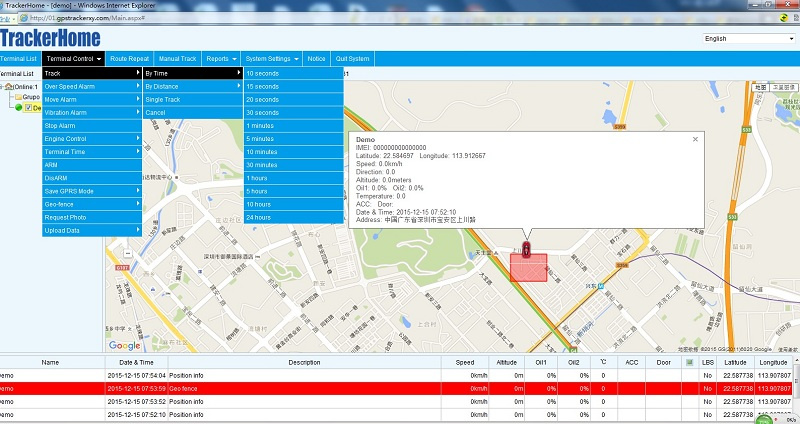

- Optional web server www.baanool.net(user id demo ,password 8888
Applying directions:
Large Scale Vehicle fleet/logistics/Vehicle rental (12-24V)
Vehicle gps tracker Specifications
| Content | Specification |
| DIM. | 87*54*26mm |
| Weight | 130g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable 3.7V 500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

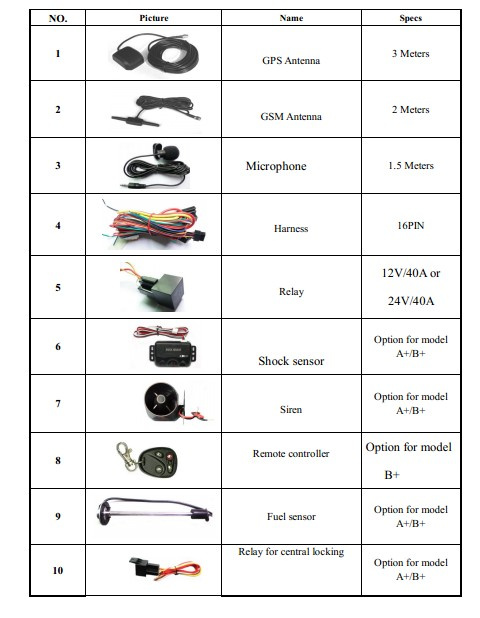

GPS103 Standard Package Content:
1 x GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 x Harness
1 X Relay(12V)
1 X Manual
Accessories (Relay for central lock ,fuel sensor, shock sensor , siren , SD card ) are optional , pls contact the seller for them .
FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
