Prod Model: |
dual sim vehicle gps tracking system TK105 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
Ce, FCC |
Warranty Time: |
1 Year |
Network: |
GSM/GPRS |
Weight: |
170g |
Dual SIM: |
Yes |
GSM Network: |
850/900/1800/1900MHz |
Optional: |

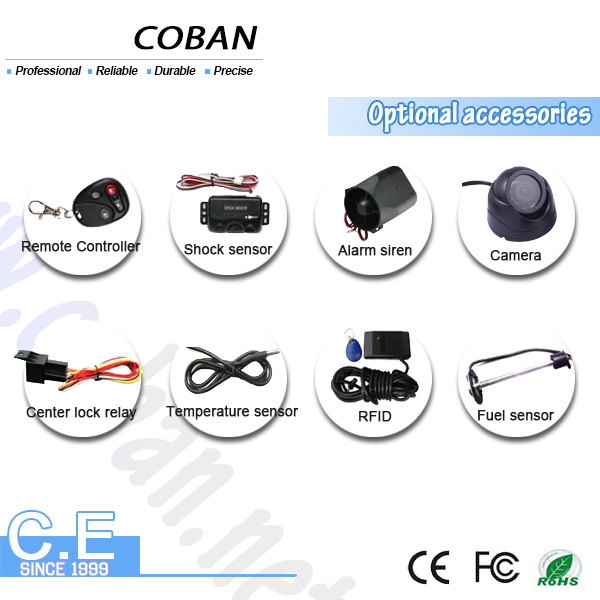

Fuel Sensor, Camera, Shock Sensor, Siren |
Central Lock System: |
to Lock/Unlock Car Door Remotely |
Car Security: |
RFID, Speed Detect, Cut Engine, Real Time Track |
Type: |
GPS Tracker |
Use: |
Automotive |
Screen Size: |
No Screen |
Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
Port Number: |
20 |
Model: |
Camera GPS105b |
Brand: |
Coban |
Chip: |
No |
Certification: |
ISO9001 |
Product Description

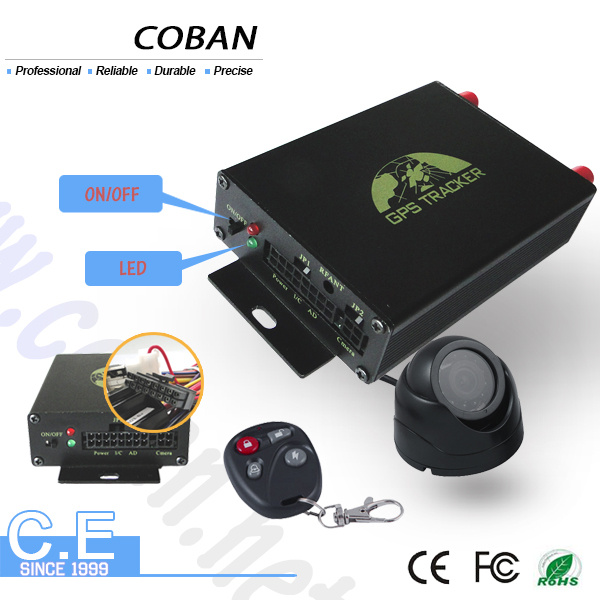

dual sim Vehicle GPS Tracking System Support Android Ios APP
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways
Basic functions:
AVL GPS Tracking System with Location Memorization GPS105
Description:
It is based on GSM/GPRS (850/900/1,800/1,900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel&temperature detection and tracking in its entirety.
Track by multiple tracking 5 ways:

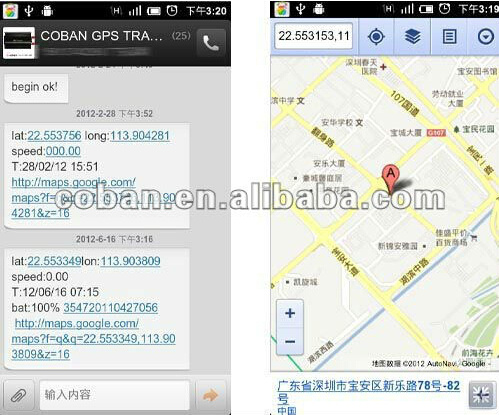

1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Optional web server www.baanool.net( user id demo,password 8888)
5.Optional Android IOS APP
Basic functions:
* Location based service (LBS) if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
* Get location in absolute street address
*Show location directly on mobile phone with HTTP Google map link
* Single tracking/ Auto track continuously
*Five authorized phone number to protect tracker information and assets
* View photos on cell phone
* Storage& Data Load (optional)
*Engine-cut and restore alarm by SMS/GPRS
*Fuel alarm (optional) If the tracker device detects the fuel decrease by 8% in three minutes, then it will send oil leak or theft alarm "oil: xx%+latitude/longitude" to authorized numbers
* Photograph
*SD card (optional)
* Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
* Alarms under Arm State: Door alarm, ACC alarm, Shock Sensor alarm, Photograph
*Movement alert
*Compatible with car original anti-theft system
speed limiter (Governor mode
When speed approach max speed, siren beeps 5 times to warn the driver; when speed reaches or exceed the max speed, relay will be activated to limit the speed.
19.IOS Android APP tracking

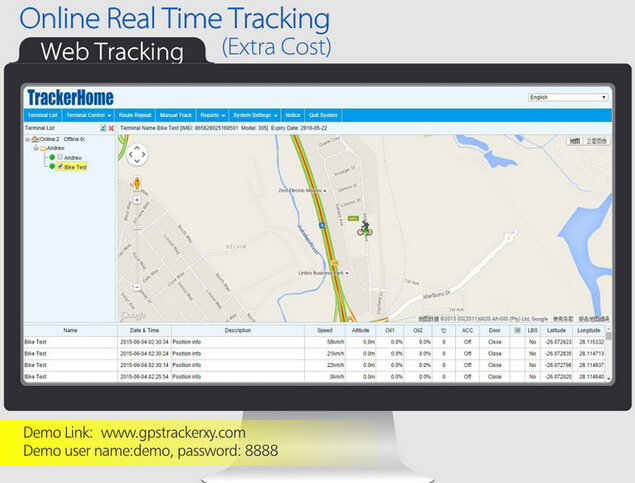

20.GPRS Web platform tracking
Applying directions:
*Vehicle fleet/logistics/vehicle rental (12 to 24V)


Specifications
Content | Specifications |
Size | 92*71*26mm |
Weight | 120g |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V/24V |
Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
Storage Temp | -40°C to +85°C |
Operation temp | -20°C to +65°C |
humidity | 5%--95% non-condensing |
Real time track on cell phone by APP
