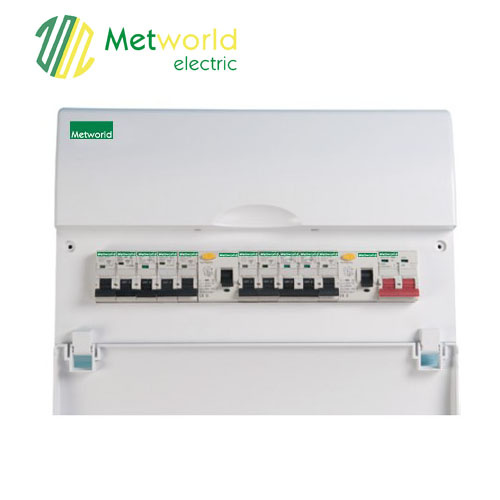

Dual Split Load Consumer Units

Prod Model:	STDB1086,STDB1088,STDB1126,STDB1128,STDB1165,etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Modules:	8,12,16,22,30
Series:	Stdb
Current:	100A
Standards:	CE
Brands:	Metworld
Main Switch:	RCD
Color:	White ,etc.
Application:	Insulated and Metal Versions
Catagory:	Dual Split Load
Package:	Customized
Type:	Distribution Metering Box
Structure:	Fixed Board
Size:	All
Shell Material:	Plastic
Shell Protection Grade:	Customized
Brand:	Metworld

Product Description

The SETEN range of insulated domestic consumer units have a modern style designed to match SETEN wiring devices. They support compliance with the latest 17th Edition Wiring Regulations, with flexibility designed in to provide maximum circuit combinations, and have been designed to provide the fastest and simplest installation.

Available in insulated and metal versions (metal versions have metal base and insulated cover and visor. Allow for protected and unprotected ways, with a choice of Main Switch, Split load (one RCD), Dual RCD and option for three RCDs in 30 module unit.

Catalogue Number	Dual Split Load Consumer Units	Modules
ST DB1086	8Way Dual Split Load Board complete With 2X63A RCDs and 1X100 Amp DP Isolator	8
ST DB1088	8Way Dual Split Load Board complete With 2X80A RCDs and 1X100 Amp DP Isolator	8
ST DB1126	12Way Dual Split Load Board complete With 2X63A RCDs and 1X100 Amp DP Isolator	12
ST DB1128	12Way Dual Split Load Board complete With 2X80A RCDs and 1X100 Amp DP Isolator	12
ST DB1165	16Way Dual Split Load Board complete With 2X63A RCDs and 1X100 Amp DP Isolator	16
ST DB1168	16Way Dual Split Load Board complete With 2X80A RCDs and 1X100 Amp DP Isolator	16
ST DB1226	22Way Dual Split Load Board complete With 2X63A RCDs and 1X100 Amp DP Isolator	22
ST DB1228	22Way Dual Split Load Board complete With 2X80A RCDs and 1X100 Amp DP Isolator	22
ST DB1306	30Way Dual Split Load Board complete With 2X63A RCDs and 1X100 Amp DP Isolator	30
ST DB1308	30Way Dual Split Load Board complete With 2X80A RCDs and 1X100 Amp DP Isolator	30
