Dual Standard Coaxial Cable Rg405

Dual Standard Coaxial Cable Rg405
Price: US $ 0.01/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 100000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RG405
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor: 1.63mm Bc/CCS
Dielectric: 7.11mm Foam PE
Shielding: Al Foil+Al Braiding
Coverage: 40-95%
Jacket: 10.16mm PVC/PE
Impedance: 75 Ohm
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: UL
Type: Coaxial Cable

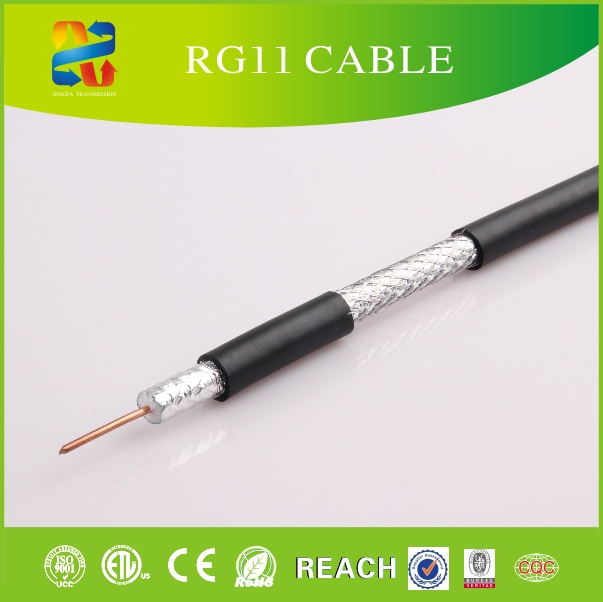

Model: Rg11

Product Description

Dual Standard Coaxial Cable Rg405
BASIC CONSTRUCTION


STANDARD SHIELDTRI-SHIELDQUAD-SHIELD
CONDUCTORMATERIALBC/CCSBC/CSSBC/CSS
Nom.Dia.14AWG14AWG14AWG
DIELECTRICMATERIALFoam PEFoam PEFoam PE
Nom.Dia.7.11mm7.11mm7.11mm
SHIELDMATERIALAl foil+Al braidingAl foil+Al braiding+Al foil(Al foil+Al braiding)*2
COVERAGE40%-95%40%-95%60%/40%
JACKETMATERIALPVC/PE >PVC/PEPVC/PE
Nom.Thick.1.07mm0.94mm0.86mm
Nom.Dia.10.16mm10.16mm10.34mm
  BASIC CHARACTERISTICS
Nominal Impedance(ohm)75±3
Nominal Velocity of Propagation(%)85
Nominal Capacitance(pF/m)50
Sparker Test(vac)4000
SRL(dB) 2020
Attenuation

[68°F(20ºC)]

Frequency(MHz)Maximum(dB/100ft)Maximum(dB/100m)
50.381.25
550.963.15
2502.056.72
3002.257.38
4502.759.02
6003.1810.43
7503.6511.97
8653.9813.05
10004.3514.27

Remarks
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
