Dual Thermostat Zr 011

Name: Dual Thermostat Zr 011
Brand: all-electronics-online.com
SKU: 793711655
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZR011
Service Life:	> 100 000 Cycles
Mounting:	Clip for 35mm DIN Rail, En60715
Dimension:	67 X 50 X 46mm
Weight:	Approx. 90g

Product Description

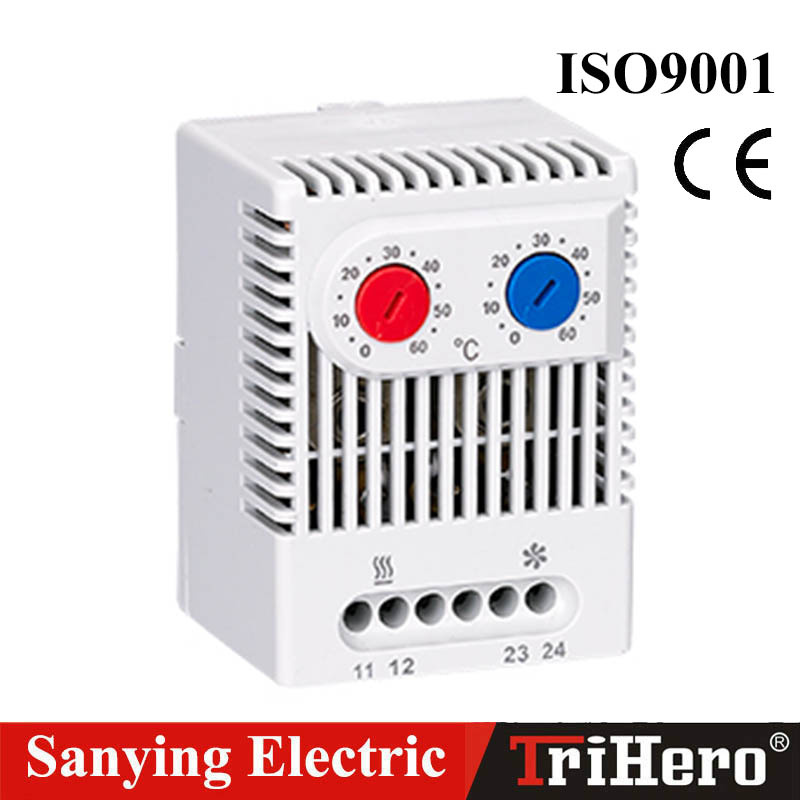

Dual Thermostat ZR 011

Features:
1. No and Nc in one casing
2. Separate adjustable temperatures
3. High switching capacity
4. Terminals easily accessible
5. Clip fixing

Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters.
Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.

Technical Data:

Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
Connection	4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0. light grey
Dimensions	67 x 50 x 46mm
Weight	approx. 90g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type	IP20
Approvals	UL File No. E164102

Ordering code:

Code	Setting range	Setting range	Setting range	Setting range
01172.0-00	contact breaker, normally closed	0 to +60°C	contact maker, normally open	0 to +60°C
01172.0-01	contact breaker, normally closed	+32 to +140°F	contact maker, normally open	+32 to +140°F
01175.0-00	contact breaker, normally closed	-10 to +50°C	contact maker, normally open	+20 to +80°C
01175.0-01	contact breaker, normally closed	+14 to +122°F	contact maker, normally open	+68 to +176 °F
01176.0-00*	contact maker, normally open	0 to +60°C	contact maker, normally open	0 to +60°C
01176.0-01*	contact maker, normally open	+32 to +140°F	contact maker, normally open	+32 to +140°F
For regulating heat exchangers and fans (e.g LE 019) and as an alarm contact for monitoring the interior temperature of electronic enclosures. at 20°C (68°F) ambient temperature

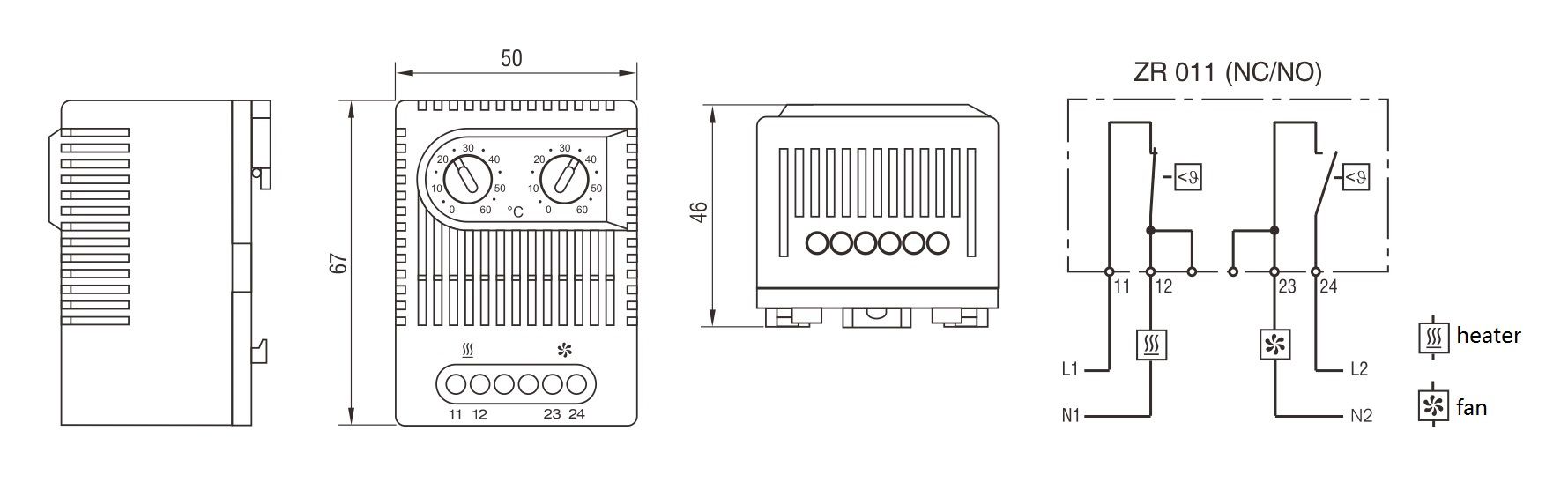

Wiring diagram:
