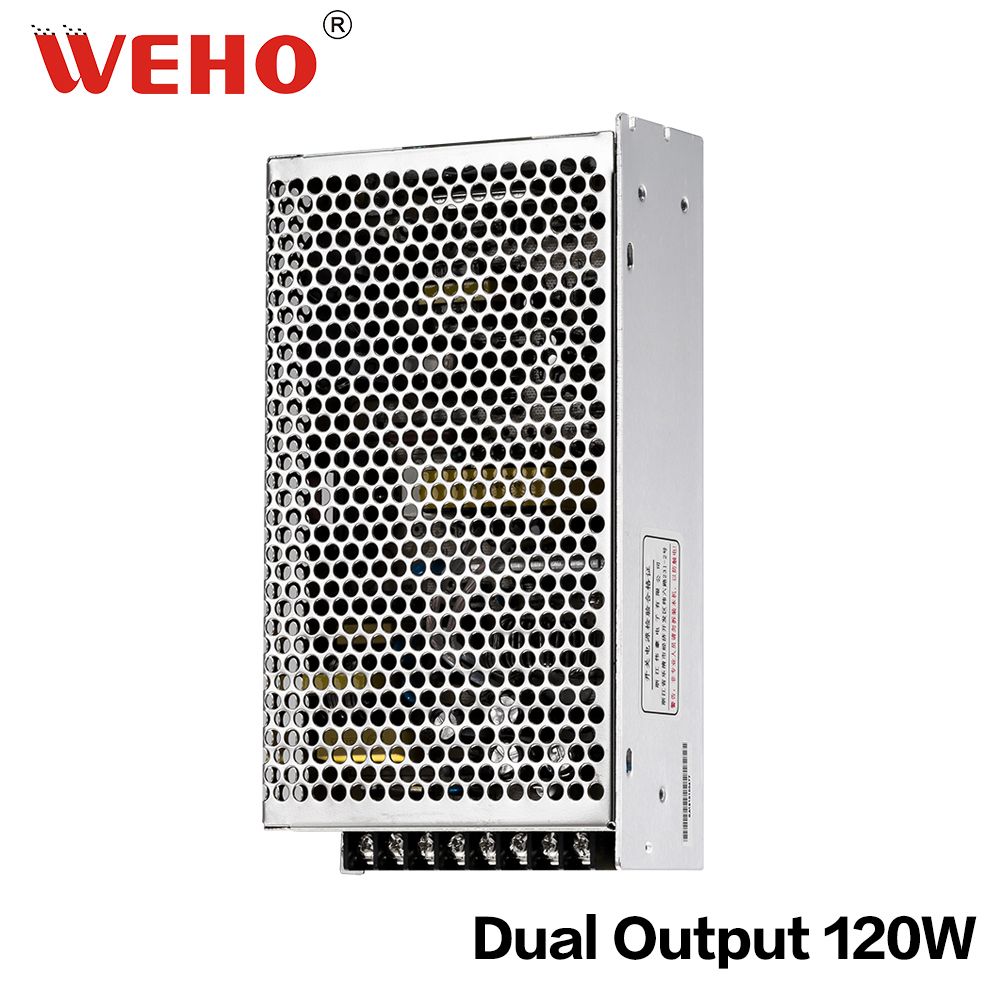

Dual Voltage 120W LED SMPS Switching Power Supply

Name: Dual Voltage 120W LED SMPS Switching Power Supply
Brand: all-electronics-online.com
SKU: 690884151
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 10.99-17.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-120
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Dual
Warranty:	2 Years
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

Dual voltage 120W LED SMPS switching power supply

MODEL		D-120A		D-120B		D-120C		D-120F
OUTPUT	DC VOLTAGE	5V	12V	5V	24V	12V	-12	12V	24V
	CURRENT RANGE	0 ~ 12A	0 ~ 5A	0 ~ 6A	0~ 4A	1 ~ 5A	0.5 ~ 5A	1 ~ 5A	0.4 ~ 2.5A
	RIPPLE & NOISE	60mVp-p	120mVp-p	60mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	CH1 : ±10%	CH2 : ±5%	CH1 : ±10%	CH2 : ±5%	CH1 : ±10%	CH1 : ±10%	CH1 : ±10%	CH1 : ±10%
	LINE REGULATION	0.5%	1.0%	0.5%	1.0%	1.0%	1.0%	1.0%	1.0%
	LOAD REGULATION	0.5%	5.0%	0.5%	6.0%	0.5%	5.0%	0.5%	8.0%
	SETUP, RISE TIME	200ms, 50ms, 20ms at full load
INPUT	VOLTAGE RANGE	90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	78%		76%		80%		80%
	AC CURRENT (Typ.)	0.8A/115VAC 0.45A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 18A/115VAC 36A/230VAC
PROTECTION	OVER LOAD	105 ~ 150% rated output power
		Protection type : Fold back current limiting, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-10 ~ +50oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85oC , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/oC (0 ~ 50oC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction
OTHERS	MTBF	417.6K hrs min. MIL-HDBK-217F (25 )
	DIMENSION	19911050mm (LWH)
	PACKING	0.9Kg; 2431.526CM/20PCS/18KG

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
