Duct Installation 6 Cores Singlemode Optical Fiber Cable

Name: Duct Installation 6 Cores Singlemode Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 817827365
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 0.12-0.3/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW
Fiber:	G652D
Fiber Type:	Singlemode
Applications:	Duct
Strength Member:	Steel Strength Member
Armoured:	Steel Tape Armoure
Installation Temperature:	-40~+70
Fiber Count:	6 Cores 12 Cores
Application:	Telecommunication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yueyou
Sheath Material:	Black UV and Waterproof Polyethylene (PE)

Product Description

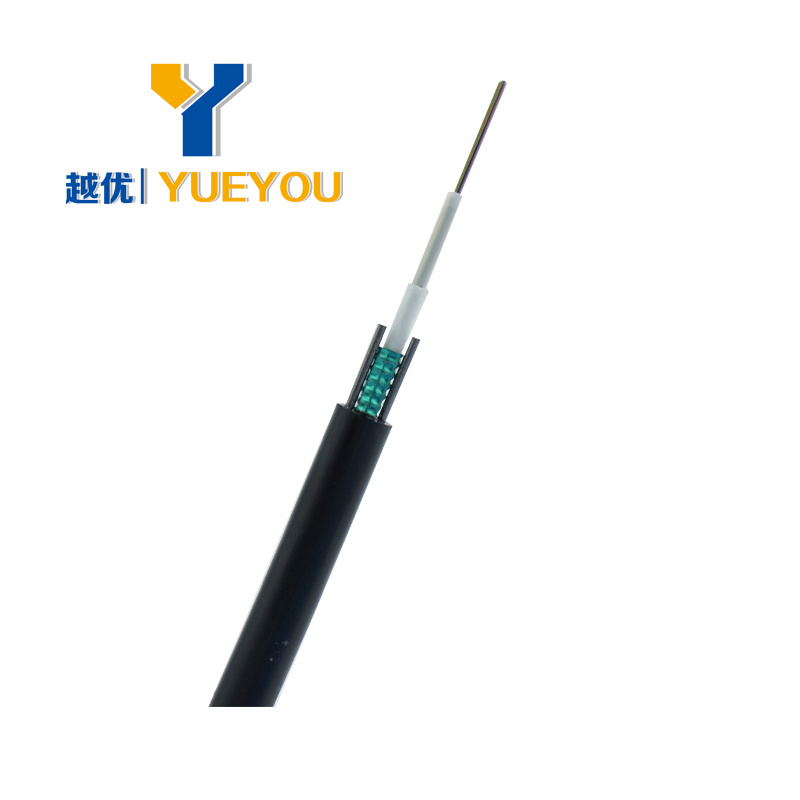

Duct installation 6 cores singlemode optical fiber cable

Description:

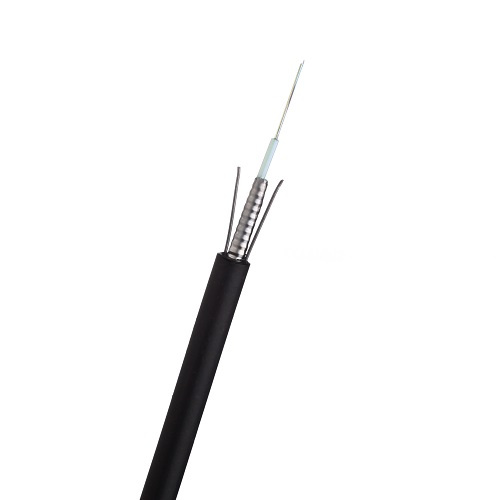

Outdoor Armoured cable is used for Duct ,direct buried.The fiber are positioned in a loose tube made
of high modulus plastic,PBT loose tube are filled with water-resistance filling compound,The corrugated steel
tape is applied which provide for crush resistant.Two parallel steel wires are placed at the two sides of
the steel tape.Outer sheath is made of UV resistance PE jacket.

Features:

fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Armored: Steel tape armoured.

Gel filled loose tubes for a critical protection of fiber.

Steel Wire offers desirable tensile strength and crush resistance.

Small diameter, Light, easy installation.

Steel Tape armored enhanced rodent protection and mechanical protection.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1 standard.

Application:

Duct,direct buried.

Fiber datasheets:

Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km

Cable datasheets

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-12	7.8±0.2	60±10	1500/600	1000/500	20D/10D	-40~+70
14-24	8.5±0.2	65±10	1500/600	1000/500	20D/10D	-40~+70

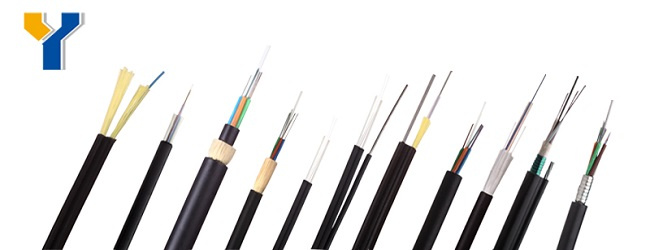

More popular products:

About us:

Contacto:

Si usted está interesado en nuestros productos,por favor contacta con nosotros,podemos hablar espanol. También puede enviarnos un correo o nos llama por el teléfono.

Atencion en 24 horas.
Muchas gracias.

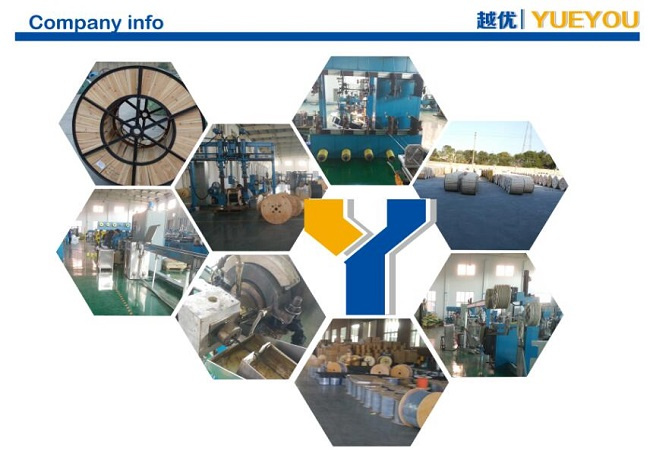

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
