| Prod Model: |
VELDLION4535 |
| Capacity (Load): |
30-40ton |
| Model Number: |
Zz3317 |
| Brand Name: |
Sinotruk HOWO |
| Dimensions (L X W X H) (mm): |
10245X2496X3450mm |
| Curb Weight: |
15390kg |
| Transmission Type: |
Manual |
| Power: |
Diesel |
| Load Capacity: |
31-40t |
| Emission Standard: |
Euro 2 |
| Drive Wheel: |
8?á4 |
| Engine Capacity: |
＞8L |
| Seats: |
≤5 |
| Horsepower: |
351-450hp |
| Tire Type: |
Inner Tube |
| Tire Certification: |
DOT |
| Tire Design: |
Tubeless |
| Dumping Type: |
Front Lifting Style |
| Condition: |
New |
Product Description

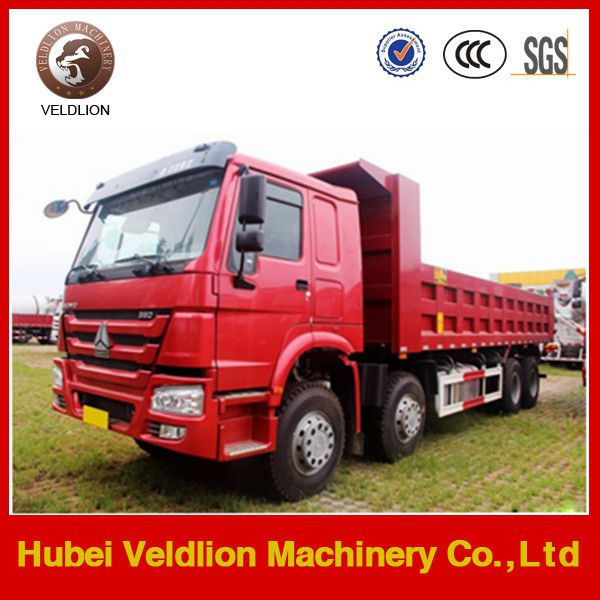

Features of our dump truck :
*Powerful and reliable engine.
*Large loading capacity.
*Strong bucket.
*Reliable and Popular, especially in Africa, south America, Middle East and south East Asia.
*Better servce.
*Technology and parts supports, one year warranty for engine, gearbox, axle, etc.
» I.Product Describution:
Manufacturer: Hubei Veldlion Machinery Co.,Ltd.
Main Feature of the dump truck:
1. About howo dump truck
Be comprehensive with Euro2 - Euro5 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc.
Power range: 266PS - 420PS
2..High Level Comfortable:
Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,
Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox ,bunk with AC.
3.High Security
The key parts adopt the world's top products
4.Top configration
Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system.
High Quality base on Strong technical support and top level technology
» II. Dump Truck Specification :
| Chassis | ZZ3317 |
| Drive type | 8x4 |
| Vehicle Main Dimensions | L×W×H(mm) | 10245x2496x3450 |
| Wheel base(front/rear) (mm) | 1800+3800+1350 |
| Approach/Departure angle | 14/23 |
| Weight in KGS | Curb weight(kg) | 15390 |
| Loading Weight for Sand full filled Cargo Box ( kg ) | 31000 |
| Actual Loading Weight | 50000-60000KG |
| Engine | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| (Steyr technology, made in China) | Fuel type | Diesel |
| | Horse Power, max(kw/rpm) | 336HP |
| | Emission | EURO2 |
| Fuel tanker capacity(L) | 300 |
| Transmission | Model | HW19710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | Model | ZF8098 |
| Front axle | HF9 Drum, Steering with double T-cross section beam, |
| 2*9400KG capacity |
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| 2*15000KG capacity |
| Tyre | 12.00R20 |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Dump Body |
| Thickness | Side | 6mm in high tensile strength steel Q345B |
| Front | 8mm in high tensile strength steel Q345B |
| Bottom | 8mm in high tensile strength steel Q345B |
| Dump Body Size | L×W×H | 7300x2300x1120 |
| Tipping Hydraulics | Tipping Type | Middle tipping type |
| Tipping System | Complete set of T type hydraulics system |
» III.Our Advantages
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.
» IV.Company Introduce:
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.
» V.Packaging & Shipping
Thick wax polished on products before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers
»VI.Contact us
Atten:Mrs.Elaine lee
Mobile:0086-15926229900
www.veldlion.com
HUBEI VELDLION MACHINERY Co., Ltd, is a high-tech enterprise approved by the Chinese government, specializing in the production of a variety of special-purpose vehicles. Our company possess legal import and export license and occupy large scales of foreign markets. The main productions of our company include more than 100 types of trucks, such as: Sprinkler Truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
Our company VELDLION has strong technical force, professional QC process, advanced production equipment, stable product quality, and flexible operation modes. What's more, Production lines has roundly passed the ISO9001-2000 quality management system certification and the 3C(China Compulsory Certification).
Good quality and business reputation is guarantee of our success. We will do as we can that treating customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency.
We promise that all our products, will enjoy one year quality guarantee (for repair, replacement or compensation of faulty products) and free technical services lifetime.
Look forward to cooperate with you! Let's join hands and create a better tomorrow!
