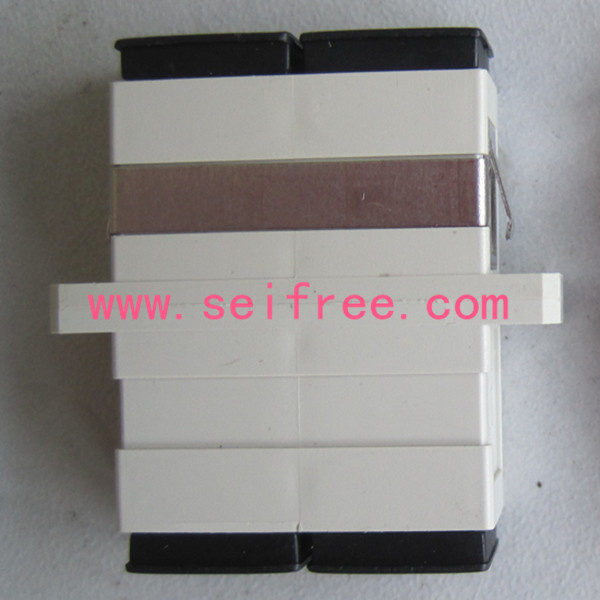

Duplex Fiber Optic Connector/Adaptor of Multi-Mode (CATV FTTX)

Name: Duplex Fiber Optic Connector/Adaptor of Multi-Mode (CATV FTTX)
Brand: all-electronics-online.com
SKU: 772276075
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 0.25-0.45/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-A-M-D-S-SC-FPC-SC-FPC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Mode:	Multi Mode
Adaptor:	Sc-Upc
Core:	Duplex
Config:	Adaptor
Type:	Standard
Ferrule Type:	FPC/Mpc
Connector:	Sc Upc
Jacket:	Plastic
Feature:	Low Insertion Loss
Sleeve:	Zirconia
Transmission Medium:	Multimode
Structure:	SC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)

Product Description

Optical Fiber Adaptor
Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications                                                                                        Features
Optical Network Wiring                                                                       Low Excess Loss
Test Equipment
Telecommunication Networks
CATV System
Telecommunication network
CATV/LAN
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland)                       Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve                                       Leadtime: 2 weeks

Company Profile
Business type:Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.

Ordering Information
SADP-       -       -       -       -       -       -       -

Config	Fiber mode	Core	Type	Housing of 1st End	Ferrell Type	Housing of 2nd End	Ferrell Type
A=Adaptor	S=Single mode	S=Simplex	S=Standard	FC	MPC= Male PC	FC	MPC= Female PC
C=Converter	M=Milt-mode	D=Duplex	F=Flange	SC	MPC= Male PC	SC	MPC= Female PC
P=Plug	/	Q=Quad	0=Oval		FAPC= Female APC		FAPC= Female APC
/			P=Pismatic	LC	FAPC= Female APC	LC	FAPC= Female APC

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20 (Plug≤0.30)
Repeatability	Time	>1000

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
