Duplex LC Fiber Optic Uniboot Patchcord

Name: Duplex LC Fiber Optic Uniboot Patchcord
Brand: all-electronics-online.com
SKU: 681531381
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 2pcs
Trade Terms:	FOB,CFR,CIF
Min Order:	1pcs
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fiber optic Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optical Fiber Diameter:	125( 657A / 652D )
Tight Buffer Diameter:	250
Fiber Mode:	Single Mode
Operation Time:	About 60s(No Fiber Cut)
Insert Loss:	0.3dB(1310nm-1625nm)
Return Loss:	-45dB
Fastening Strength Of Naked Fiber:	>5 N
Fastening Strength Of Naked Fiber Holder:	>10 N
Tensile Strength:	>50 N
Using Temperature:	-40~+75
Transmission Medium:	Multimode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC/Upc/APC
Fabrication Process:	Uniboot
Connector Type:	LC/St/FC/St/Mu/E2000

Product Description

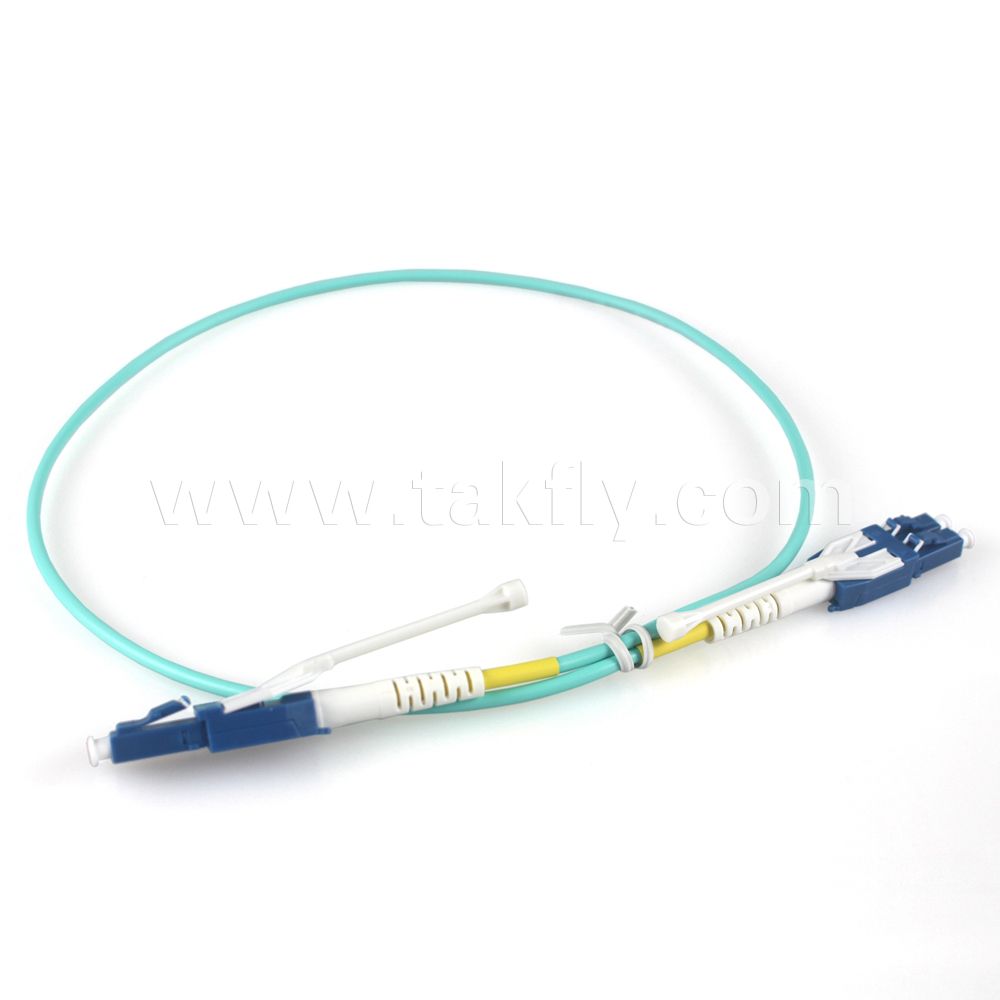

Duplex LC Fiber Optic Uniboot patchcord

Offering the ability to accommodate two connectors in a single boot, Takfly LC Uniboot Reverse Connectors provide convenience and space savings with a unique duplex head/one-boot design. The LC Uniboot is ideal for dual fiber cable or zip cable applications, often cutting the number of fiber cables in half. In addition, this design provides for a more organized appearance in optical systems, as well as easier cable management. These unique connectors also enable easy polarity change with one simple tool.

Features
Accommodates two connectors in a single boot
Unique duplex head/one-boot design
Long latches for easy unlocking
Stop-ring and Kevlar crimp sleeve best supports cable retention

Applications
1. FTTH
2. WAN
3. LAN
4. Telecommunication
5. CATV
6. Optical Distribution Frame

Ferrule Hole Sizes
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

Performance Index

Parameter	Unit	FC,LC,SC				ST,MU,SMA905			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

For furter information,please don't hesitate to contact me!
