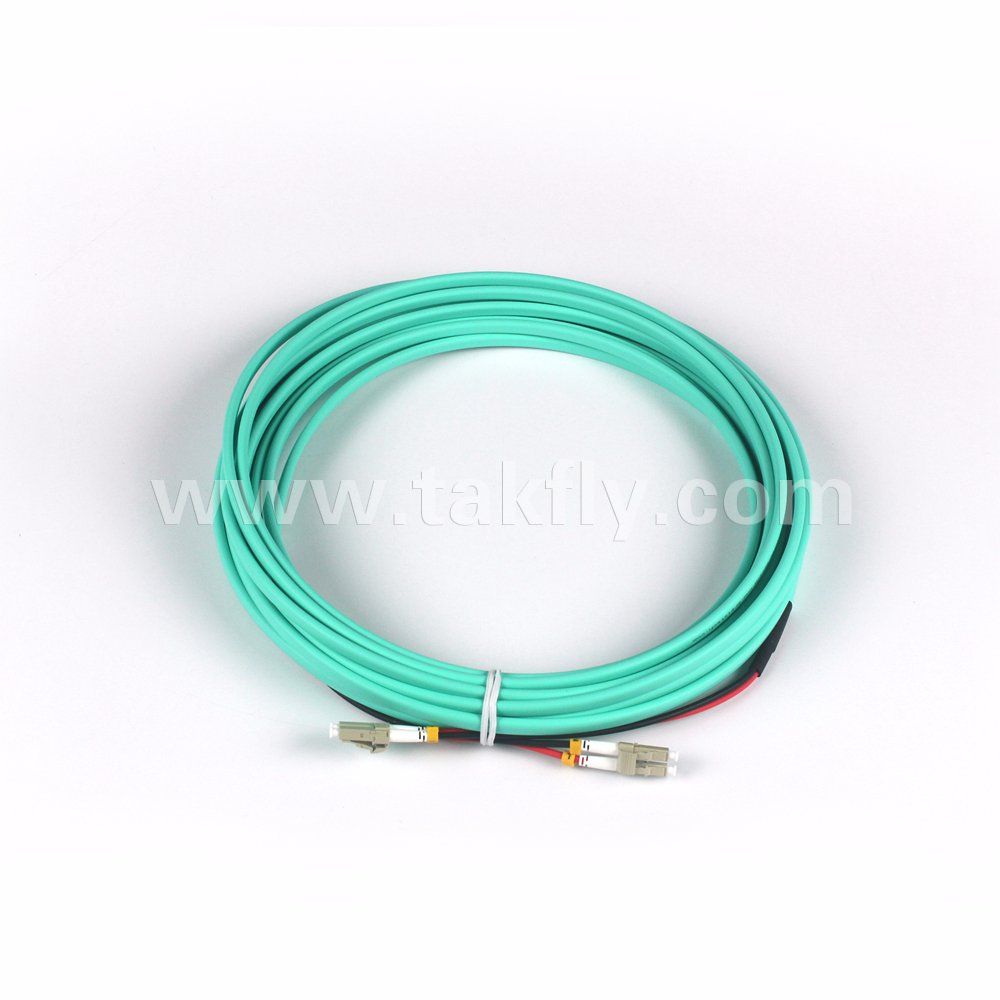

Duplex LC-LC Indoor Om3 Fiber Optic Patch Cord
| Price: |
US $ 0.5-2.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
LC-LC Fiber Optic Patch Cord |
| Item Name: |
LC Om3 Fiber Patch Cord |
| Body & Cover Material: |
LSZH |
| Body & Cover Color: |
Aqua |
| Operating Temperature: |
-40°c to +75°c |
| Delivery Time: |
1~5days |
| Sample Order: |
Available |
| Certificate: |
SGS/Ce/Rosh/ISO9001/ISO14001 |
| Business Type: |
Manufacturer&Trading |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
| Sheath Material: |
LSZH |
Product Description

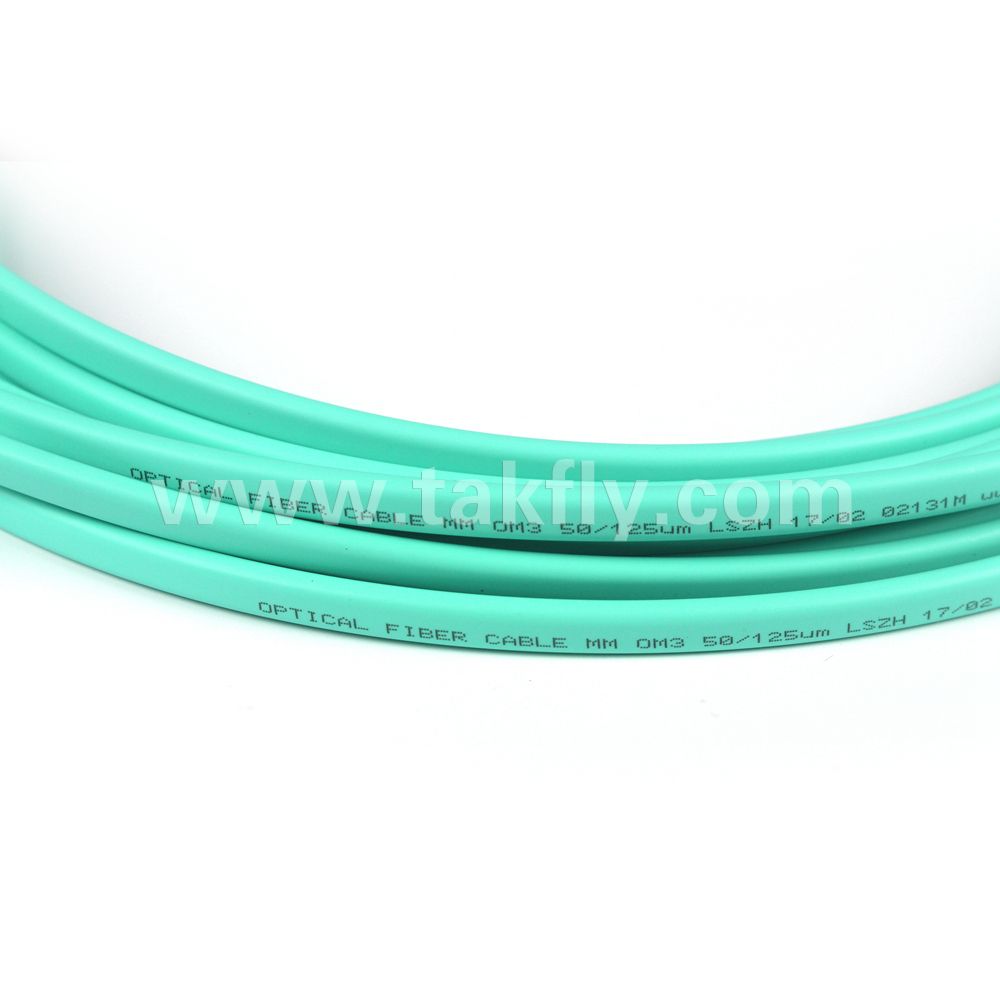

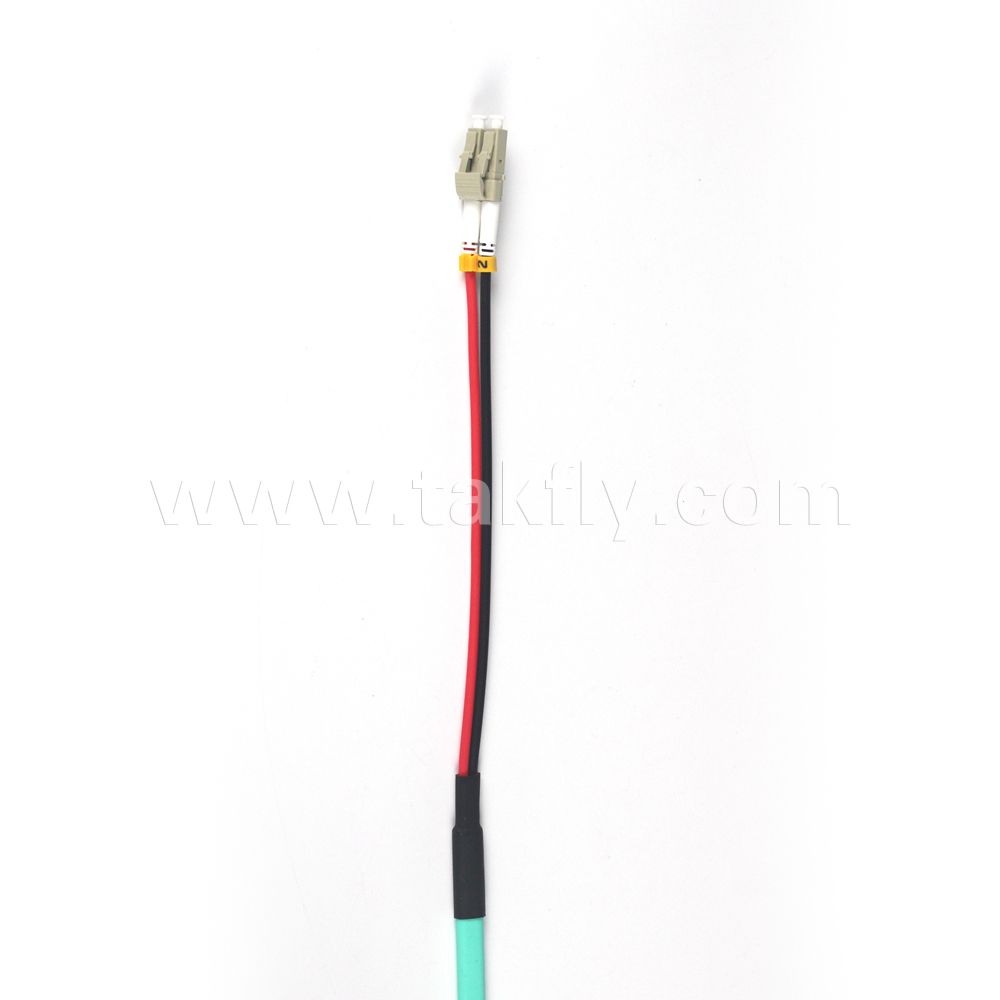

Takfly ISO Om3 Duplex LC-LC Fiber Cable/Fiber Optic Patch Cord
Features:LC Duplex Om3 fiber optic patch cord
ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mmPrecision mechanical dimensions
Zirconia ferrule PC or APC UPC diameter125~128 um high concentricity
Single mode, Multimode and Angle PCMulti-piece type or one-piece type is available
All parts compliant with ROHS CE ISO9001Product Panel Figure:Front pa
Technical Specifications
| | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information:| ODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H01 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black |
Factory information:
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Contact
1.Our working time:8:30am~5:30pm (if urgent, please call +86 13632482450)
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number,
and your E-mail address, we will reply to you within 24hours too.
Dear friend * if you have any questions* please don't hesitate to contact me * ^-^ *
My Name: Luis Lee *^-^*
Telephone: 86-755-2810 6528;
Have a happy shopping time *^-^*
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
