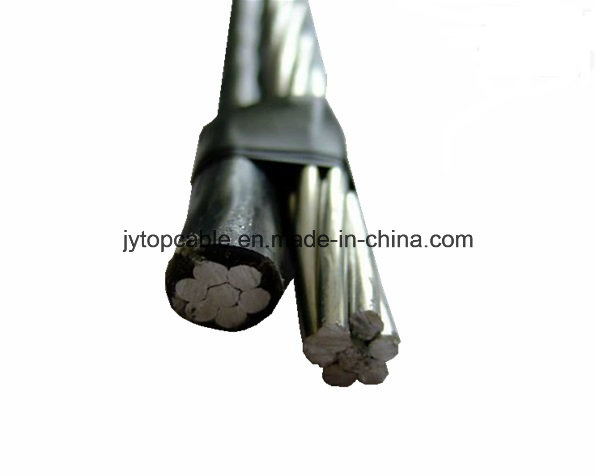

Duplex Service Drop Wire with Aluminum Conductor

Name: Duplex Service Drop Wire with Aluminum Conductor
Brand: all-electronics-online.com
SKU: 707830932
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 0.064-0.066/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	abc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
None:	None
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Certification:	CE
Sheath Material:	None
Insulation Material:	XLPE or PE
Range Of Application:	Overhead
Brand:	Jinyuan

Product Description

duplex service drop wire with aluminum conductor:

Standard: ASTM B230,B231,B232, B399,B498,ICEA S-76-474
Capacity: 10000km/week
Delivery Length: accord with the request
Min.Order Qty : 1km

Application
Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltage of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.

Construction
The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.

Specification
ASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474 Standard

Code Name	Phase Conductor			Bare Neutral		Approx.Weight		Code Name	Phase Conductor				Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE		Size		Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft			AWG		-	mil	AWG	-	lbs/1000ft
AAC Neutral Messenger								ACSR Neutral Messenger
Pekingese	6	Solid	45	6	7/w	63.5	61.7	Setter	6		Solid	45	6	6/1	75.0	73.2
Collie	6	7/w	45	6	7/w	66.8	63.1	Shepherd	6		7/w	45	6	6/1	78.3	74.6
Dachshund	4	Solid	45	4	7/w	95.5	93.4	Eskimo	4		Solid	45	4	6/1	113.7	111.6
Spaniel	4	7/w	45	4	7/w	100.5	95.4	Terrier	4		7/w	45	4	6/1	118.7	113.6
Doberman	2	7/w	45	2	7/w	152.7	145.7	Chow	2		7/w	45	2	6/1	181.7	174.7
Malemute	1/0	19/w	60	1/0	7/w	242.6	234.2	Bull	1/0		19/w	60	1/0	6/1	288.7	280.3
6201 Alloy Neutral Messenger
Chihuahua	6	Solid	45	6	7/w	67.6	65.8	Whippet		4	7/w	45	4	7/w	107.0	101.9
Vizsla	6	7/w	45	6	7/w	70.9	67.2	Schnauzer		2	7/w	45	2	7/w	163.3	156.2
Harrier	4	Solid	45	4	7/w	102.0	99.9	Heeler		1/0	19/w	60	1/0	7/w	259.2	250.8
Note:
(1)Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
(2)Conductor temperature of 90°C for XLPE, 75°C for PE; ambient temperatures of
40°C; emissivity 0.9; 2ft./sec/wind in sun.

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
