Product Description

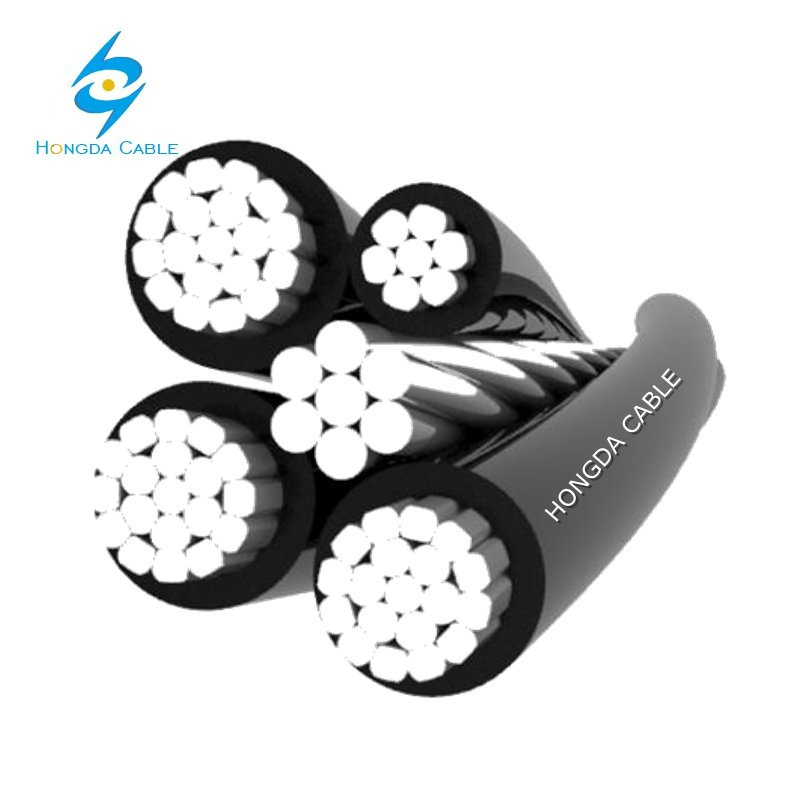

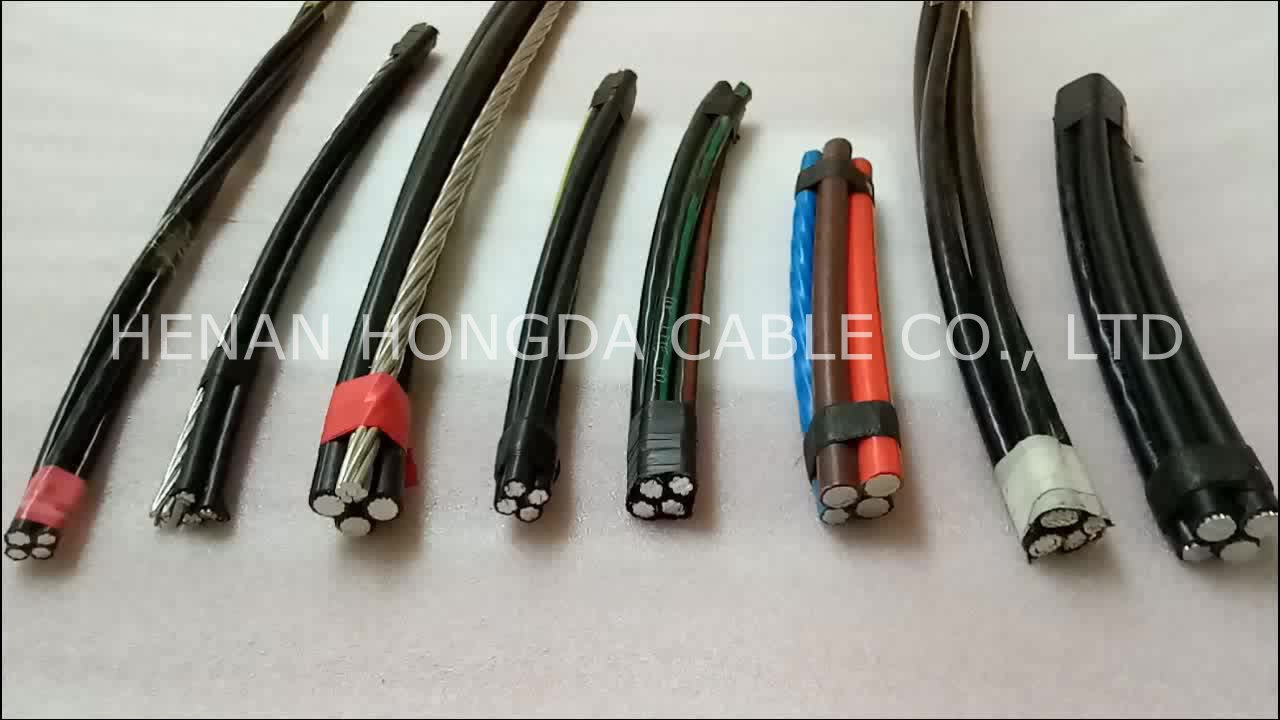

SERVICE DROP AND SECONDARY CABLES
Duplex, Triplex, Quadruplex Aluminum
Application
- Duplex: Neutral supported secondary distribution cables and neutral supported service drop cables, one (1), 2 or 3 black polyethylene insulated stranded aluminum (AAC) conductor and one (1) bare ACSR neutral conductor as supporting/messenger member, for use in circuits not exceeding 600 volts phase to phase at maximum conductor temperature of 75°C (LDPE or LLDPE), 90 C (XLPE)
- Triplex: Self-supporting secondary and service drop cable, two (2) black polyethylene insulated stranded aluminum (AAC) conductor and one (1) bare ACSR neutral conductor as supporting member, for use in circuits not exceeding 600 volts phase to phase at maximum conductor temperature of 75°C
- Quadruplex: Self-supporting secondary and service drop cable, three (3) black polyethylene insulated stranded aluminum (AAC) conductor and one (1) bare ACSR neutral conductor as supporting member, for use in circuits not exceeding 600 volts phase to phase at maximum conductor temperature of 75°C
Specifications
- ASTM B230
- ASTM B231
- ASTM B232
- ASTM B498
- ANSI/ICEA S 70 - 547
- ICEA S-76-474
- ICEA S 61-402
Features
- Economical
- Lightweight
- Weather resistant
- High dielectric strength
- High impact/Abrasion resistant

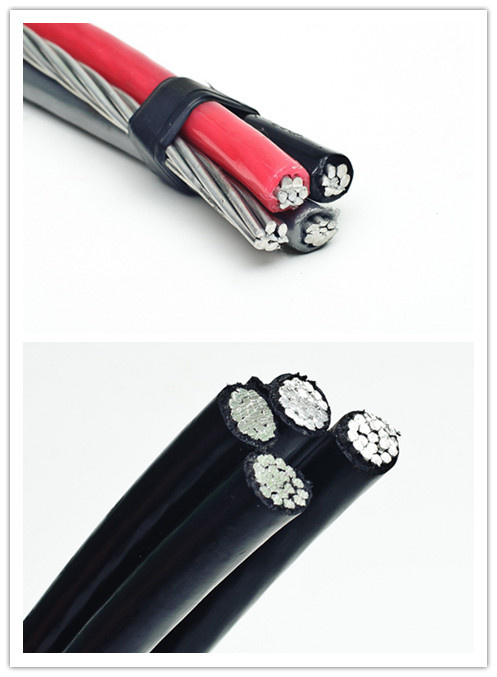

SERVICE DROP AND SECONDARY CABLES STRUCTURE:
Construction:
Three insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR.
Phase
Conductor | stranded aluminum wires (AAC) |
| Insulation | black thermosetting cross-linked polyethylene (XLPE) |
| thermoplastic low density polyethylene (LDPE) |
| thermoplastic high density polyethylene (HDPE) |
| Neutral | stranded aluminum wires (AAC) |
| stranded aluminum alloy wires (AAAC) |
| stranded aluminum conductor steel reinforced (ACSR) |
SERVICE DROP AND SECONDARY CABLES Specifications: | Code Word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities |
| AAC | Rated Strength | AAC | insul. Thick. mm | XLPE | PE |
| Number | Dia. mm | Number | Dia. mm |
| Pekingese | 1x6+1x6 (AWG) | 7 | 1.56 | 563 | 1 | 4.11 | 1.14 | 92 | 85 | 70 |
| Collie | 1x6+1x6 (AWG) | 7 | 1.56 | 563 | 7 | 1.56 | 1.14 | 94 | 85 | 70 |
| Dachshund | 1x4+1x4 (AWG) | 7 | 1.96 | 881 | 1 | 5.19 | 1.14 | 139 | 115 | 90 |
| Spaniel | 1x4+1x4 (AWG) | 7 | 1.96 | 881 | 7 | 1.96 | 1.14 | 141 | 115 | 90 |
| Doberman | 1x2+1x2 (AWG) | 7 | 2.47 | 1350 | 7 | 2.47 | 1.14 | 216 | 150 | 120 |
| Malemute | 1x1/0+1x1/0 (AWG) | 7 | 3.12 | 1990 | 19 | 1.89 | 1.52 | 347 | 205 | 160 |
| Code Word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities |
| ACSR | Rated Strength | AAC | insul. Thick. mm | XLPE | PE |
| Number | Dia. mm | Number | Dia. mm | Number | Dia. mm |
| Setter | 1x6+1x6 (AWG) | 1 | 1.68 | 6 | 1.68 | 1190 | 1 | 4.11 | 1.14 | 111 | 85 | 70 |
| Shepherd | 1x6+1x6 (AWG) | 1 | 1.68 | 6 | 1.68 | 1190 | 7 | 1.56 | 1.14 | 113 | 85 | 70 |
| Eskimo | 1x4+1x4 (AWG) | 1 | 2.12 | 6 | 2.12 | 1860 | 1 | 5.19 | 1.14 | 171 | 115 | 90 |
| Terrier | 1x4+1x4 (AWG) | 1 | 2.12 | 6 | 2.12 | 1860 | 7 | 1.96 | 1.14 | 173 | 115 | 90 |
| Chow | 1x2+1x2 (AWG) | 1 | 2.67 | 6 | 2.67 | 2850 | 7 | 2.47 | 1.14 | 266 | 150 | 120 |
| Bull | 1x1/0+1x1/0 (AWG) | 1 | 3.37 | 6 | 3.37 | 4380 | 19 | 1.89 | 1.52 | 427 | 205 | 160 |
| Code Word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities |
| AAAC | Rated Strength | AAC | insul. Thick. mm | XLPE | PE |
| Number | Dia. mm | Number | Dia. mm |
| Chihuahua | 1x6AWG+1x30.58 | 7 | 1.68 | 1110 | 1 | 4.11 | 1.14 | 98 | 85 | 70 |
| Vizsla | 1x6AWG+1*30.58 | 7 | 1.68 | 1110 | 7 | 1.56 | 1.14 | 100 | 85 | 70 |
| Harrier | 1x4AWG+1x48.69 | 7 | 2.12 | 1760 | 1 | 5.19 | 1.14 | 149 | 115 | 90 |
| Whippet | 1x4AWG+1x48.69 | 7 | 2.12 | 1760 | 7 | 1.96 | 1.14 | 151 | 115 | 90 |
| Schnauzer | 1x2AWG+1x77.47 | 7 | 2.67 | 2800 | 7 | 2.47 | 1.14 | 231 | 150 | 120 |
| Heeler | 1x1/0AWG+1x123.3 | 7 | 3.37 | 4460 | 19 | 1.89 | 1.52 | 372 | 205 | 160 |
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
Packing & Delivery

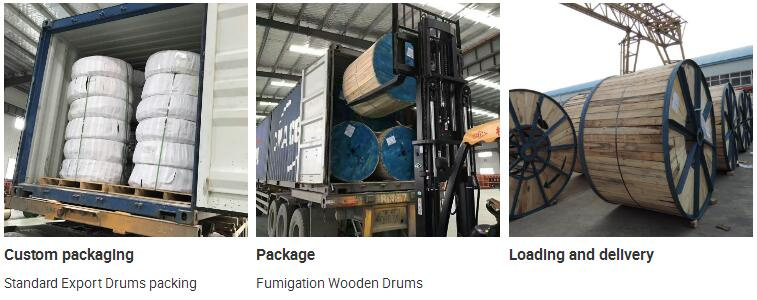

PackingSteel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:FOB/C&F/CIF/DAP quotation are all available.

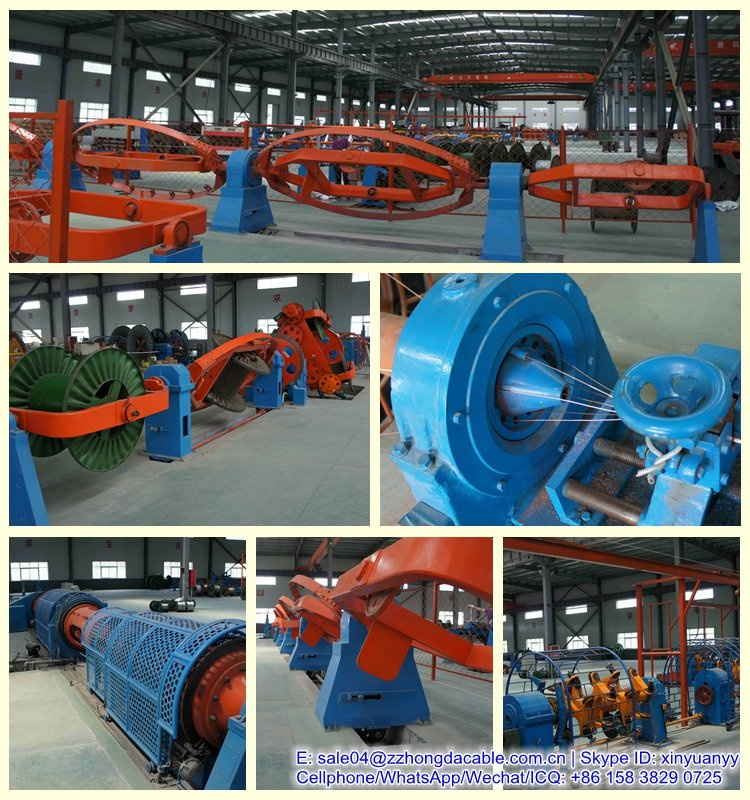

Duplex Triplex Quadruplex Aluminum Service Drop and Secondary Cables Produce Machine:
Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
