Dusk to Dawn Swivel Photocontrol Raintight Sensor Switch Energy Conservation

Name: Dusk to Dawn Swivel Photocontrol Raintight Sensor Switch Energy Conservation
Brand: all-electronics-online.com
SKU: 730626242
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	118
Type:	Automatic Sensor Switch

Product Description

Basic Specification:

Rated Loading	1000W Tungsten 1800VA ballast
Ambient Temperature	-40ºC ~ +70ºC
Power consumption	1.5VA
Rated Voltage	100-120VAC, 200-240VAC 50/60Hz
Voltage	90-260V

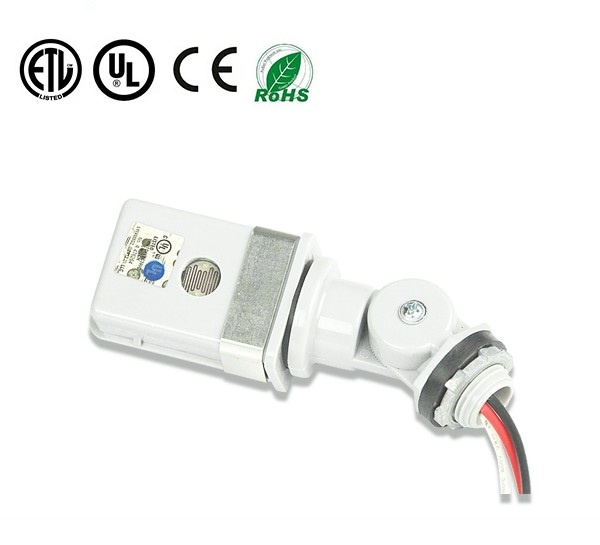

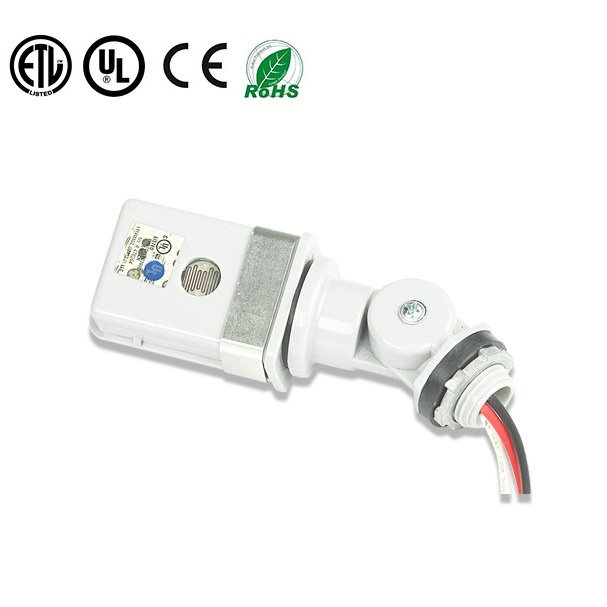

Product Pictures:

The photoelectric switch JL-118 series is applicable to control the street lighting, passage lighting and
doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30
seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature
compensator system provides consistent performance regardless of the ambient temperature.
JL-118 series is convenient direction adjustment after installation once an additional swivel is applied.

Item No.	JL- 118A/JL- 118B
Rated Voltage	100-120VAC, 200-240VAC
Rated Frequency	50/60HZ
Rated Loadings	1 0 0 0 W T u n g s t e n 1 8 0 0 V A B a l l a s t
Power consumption	1.5VA
On-Off Levels	10~20Lx On (Dusk) 30~60Lx Off (Dawn)
Ambient Temp	-40ºC ~ +70ºC
Related Humidity	95%
Body Meas.	41(wide) x 32(depth) x 72(height)mm
Swivel Meas.	65(L) x 35(Dia. Max.)mm; 180o
Lead Specs.	AWM3321, AWG#16
Leads Length	150mm or Customer request; AWM3321, AWG#16
Approx. Weight	55g (Body); 20g (Swivel)

Installation:

Disconnect power,
place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.

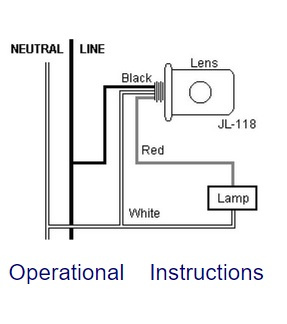

Wire according to the diagram in right hand.
Slide the mounted adjusting metal strip to have preferred On/Off levels, if necessary.
Do not install the switch with the Photocell facing artificial or reflected light.

This will cause the unit to cycle on and off at night.
