| Prod Model: |
MS4-16Z-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Force: |
1.5 N--3 N |
| Current: |
16A |
| MOQ: |
1000PCS |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Breaking Form: |
Single Type |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Brand: |
Yz |
Product Description

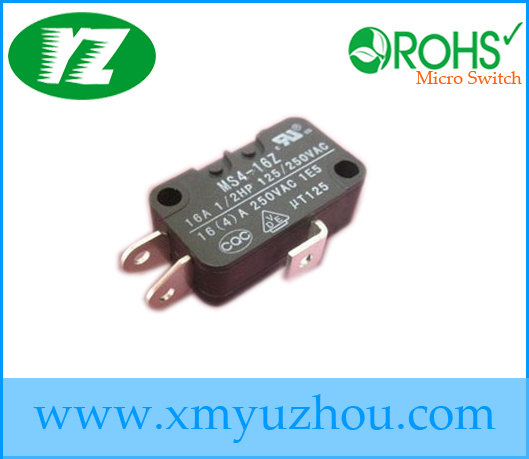

Solder Terminal Micro Switch
Good quality, All kinds of operating force, Several Kinds of Terminal
1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, e; Ectric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.
Micro switch is suitable for using in each kind of control circuit with the rated voltage less than 250V and rated current less than 10A for controlling elements. It is the sense switch with the certain movement strength through the certain travel ling to cause the electronic contact speed but to transform the electric circuit. It has small gap, instantaneous movement and small travel ling characteristics.
Why choose us?
1: Excellent quality with competitive price.
2: We have good quality-control team and precision testing machine to control the quality seriously.
3: Short lead time.
4: Long life time, Every switch approved with CE, CCC and ROHS certification
5: Sample for testing is available.
6: MOQ: 1000pcs, mixed order acceptable, welcome trial order.
|
Item |
Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
100 MΩ (500VDC) |
Contact resistance |
<=30mΩ(Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=5000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature |
125°C 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.5.95g(No lever) |
