DVI Cable SP1001009

Name: DVI Cable SP1001009
Brand: all-electronics-online.com
SKU: 675295485
Availability: InStock
Rating: 5 (21 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Species:	HDMI
Application:	Multimedia, Computer, Game Player
Type:	Coaxial
Certification:	RoHS, CE, ISO9001, UL, VDE
Connector:	HDMI
Material Shape:	Round Wire
Brand:	Jyft
Wire Core Material:	CCS

Product Description

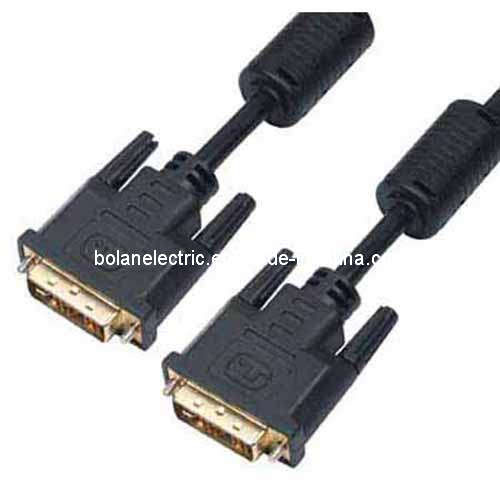

DVI to DVI cable
Description
？ Rated temperature:80ºC
？ Rated voltage:30V
？ Reference standard:Hight-definition
  Mulitimedia interface specification version 1.4

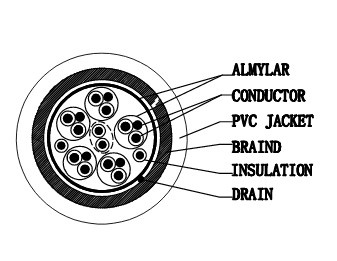

？ Stranded tinned copper conductor,32-22AWG
？ Color-coded foam PE or PE insulation
？ Over 85% coverage tinned copper or copper alloy braid shield
？ Leed free PVC jacket
？ Passes UL VW-1 & CSA FT1 vertical flame test
？ HDMI ethernet channel
？ Audio return channel
？ 3D over HDMI
？ 4K x 2K resolution support
？ Expanded support for color spaces
？ Micro HDMI connector
？ Automotive connection system
Electrical characteristic:
？ Differential impedance (20ºC):100±10
？ Differential delay ≤ 4.5ns/m
？ Propagation delay skew:
  Within a pair: ≤ 111ps/m
  Between pairs: ≤ 1.78ns/m
？ Far and cross-talk: ≤-20dB,1-5100MHz
Attenuation(NA)
Frequency(MHz)     Attn.dB(Max)
1~825             -5
5100              -25
Features
？ Displays natural vivid colors accurately
？ Enables single-link bandwidth of 340 MHz 10.2 gigabits per second (Gbps)
to support the demands of future HD display devices such as higher resolutions,
Deep Color™ and high-frame rates
？ Ensures compatibility with the lossless compressed digital-audio formats of Dolby™
TrueHD and DTS-HDMaster Audio™ for high-resolution audio
？ Features the latest technology with Audio Return Channel (ARC) functionality
？ Fully integrated High Speed capability to support fully
uncompressed HD 1080p resolution
？ Supports high-bandwidth uncompressed digital audio
？ Throughput of 10.2 Gbps

Model	Name	Unit	Spec	Metal Plug Spec	Jecket	Cable Spec
SP1001009	DVI Cable	PIC	DVI (18+5) plug to DVI (18+5) plug with ferrite	Gold and Nickel plated shells available	nylon sleeve availble	30 awg 28awg 26awg 24awg availble
