DVI Cable SP1001010

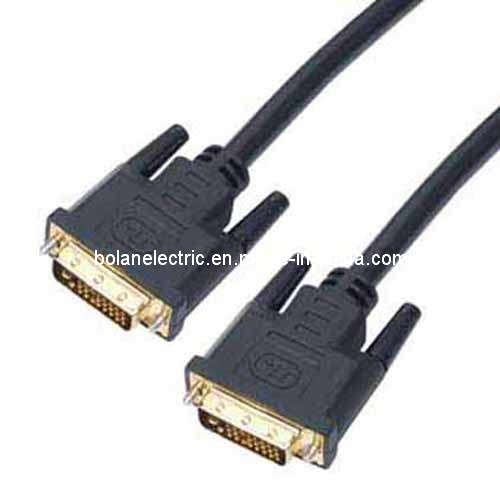

Name: DVI Cable SP1001010
Brand: all-electronics-online.com
SKU: 675295745
Availability: InStock
Rating: 5 (148 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Species:	HDMI
Application:	Computer
Certification:	RoHS, ISO9001, UL, VDE
Connector:	HDMI
Brand:	Jyft
Wire Core Material:	CCS

Product Description

DVI (24+1) plug to DVI (24+1) plug
SP1001010

Description
？ Rated temperature: 80ºC
？ Rated voltage: 30V
？ Reference standard: Hight-definition
Mulitimedia interface specification version 1.4
？ Stranded tinned copper conductor, 32-22AWG
？ Color-coded foam PE or PE insulation
？ Over 85% coverage tinned copper or copper alloy braid shield
？ Leed free PVC jacket
？ Passes UL VW-1 & CSA FT1 vertical flame test
？ HDMI ethernet channel
？ Audio return channel
？ 3D over HDMI
？ 4K X 2K resolution support
？ Expanded support for color spaces
？ Micro HDMI connector
？ Automotive connection system
Electrical characteristic:
？ Differential impedance (20ºC): 100±10
？ Differential delay ≤ 4.5ns/m
？ Propagation delay skew:
Within a pair: ≤ 111PS/m
Between pairs: ≤ 1.78ns/m
？ Far and cross-talk: ≤-20dB, 1-5100MHz
Attenuation(NA)
Frequency(MHz) Attn. DB(Max)
1~825 -5
5100 -25
Features
？ Displays natural vivid colors accurately
？ Enables single-link bandwidth of 340 MHz 10.2 gigabits per second (Gbps)
To support the demands of future HD display devices such as higher resolutions,
Deep Color™ and high-frame rates
？ Ensures compatibility with the lossless compressed digital-audio formats of Dolby™
TrueHD and DTS-HDMaster Audio™ for high-resolution audio
？ Features the latest technology with Audio Return Channel (ARC) functionality
？ Fully integrated High Speed capability to support fully
Uncompressed HD 1080P resolution
？ Supports high-bandwidth uncompressed digital audio
？ Throughput of 10.2 Gbps

Model	Name	Unit	Spec	Metal Plug Spec	Jecket	Cable Spec
SP1001010	DVI Cable	PIC	DVI (24+1) plug to DVI (24+1) plug	Gold and Nickel plated shells available	nylon sleeve availble	30 awg 28awg 26awg 24awg availble
