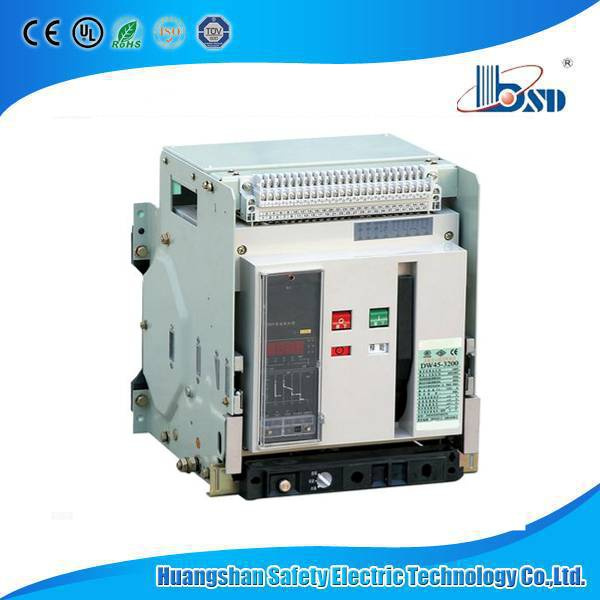

Dw45 Intelligent Universal Conventional Circuit Breaker Acb Drawer Type Upto 6300A Intelligent Air

Name: Dw45 Intelligent Universal Conventional Circuit Breaker Acb Drawer Type Upto 6300A Intelligent Air
Brand: all-electronics-online.com
SKU: 810588755
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 950-1200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW45
Items:	Ns Moulded Case Circuit Breaker(MCCB)
Rated Current:	2000A to 6300A
Grade Quality:	A Grade
Warranty Time:	2 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC
Poles Number:	3p ,4p

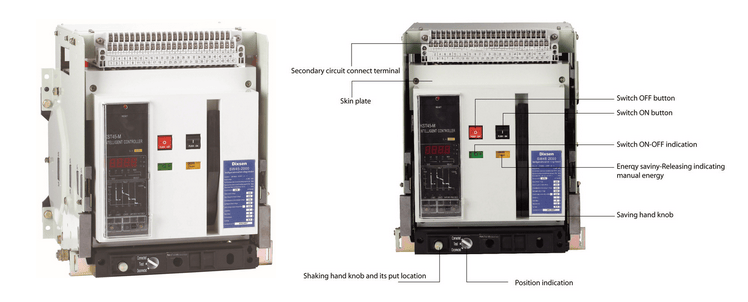

Product Description

DW45 3P 4P ACB air circuit breakera are applicable for AC 50/60Hz with rated voltage 400V, 690V

and rated current 200A 400A 630A 800A 1000A 2500 3200A 6300A electrical circuit .

Air circuit breaker is applied to distribute and protect circuit and load equipment from overload, under-

voltage, short-circuit damage and single-phase earthing.

Air circuit breaker is essential to the safety and normal usage of electricity user.

Strengths of Jubang Air Circuit Breaker

Maintenance free. Stable in operation.

High breaking overload and short-circuit capacity.

Module structure.

Conforms to IEC60947 standard.

Installation of air circuit breaker

Temperature : -5°c~+40°c ; the average value within 24h not exceed +35°c.

Elevation: altitude of installation place shall not 2000m.

Specification of Air Circuit Breaker

Type		DW45-1000	DW45-2000	DW45-3200	DW45-4000	DW45-6300
Frame rated current Inm (A)		1000	2000	3200	4000	6300
Number of poles		3,4	3,4	3,4	3,4	3,4
Rated current In (A)		200,400,630, 800,1000	630,800,1000, 1250,1600,2000	2000,2500,3200	2000,2500,3200,4000	4000,5000,6300
Icu (kA)O-CO	400V	42	80	100	100	120
Icu (kA)O-CO	690V	25	50	65	65	80
Ics (kA)O-CO-CO	400V	30	50	65	65	80
Ics (kA)O-CO-CO	690V	20	40	50	50	70
Icw(kA)O-CO	400V	20	50	65	65/80(MCR)	85/100(MCR)
Icw(kA)O-CO	690V	20	40	50	50/65(MCR)	65/75(MCR)
Rated current at N-pole In (A)	50%In, 100%In
Inherent making& breaking time	23-32ms
Operational performance (operations)	Electric life	500
Operational performance (operations)	Mechanical life	Maintenance-free2500 Maintenance 10000
Mounting mode		Fixed with drawable
Arcing distance(mm)		0
Intelligent controller		Standard type(M) Telecommunication type (H)

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
