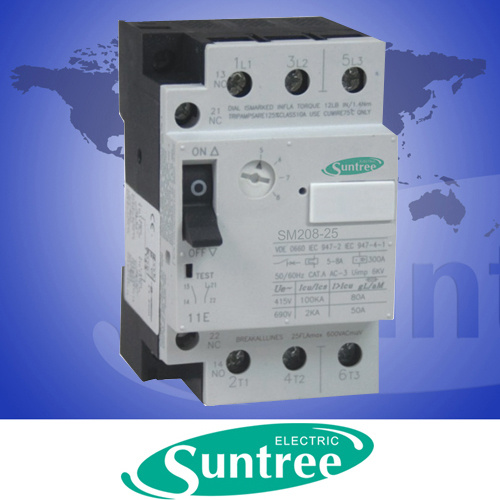

Dz108 3ve MPCB Motor Protective Circuit Breaker (SM208-235)

Name: Dz108 3ve MPCB Motor Protective Circuit Breaker (SM208-235)
Brand: all-electronics-online.com
SKU: 711716275
Availability: InStock
Rating: 4.7 (106 reviews)

Price:	US $ 17/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM208-235
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	690V
Certificate:	Ce-LVD, RoHS
Brand Name:	Suntree
Frequency:	AC 50Hz (60Hz)
All Standard:	IEC947-2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CE
Structure:	Moulded Case Circuit Breaker
Poles Number:	3p, 4p

Product Description

Application
3VE series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

Model		DZ108-20(3VE1)	DZ108-32(3VE3)	DZ108-63(3VE4)
Pole NO.		3	3	3
Rated Voltage(V)		660	660	660
Rated Current(A)		20	20	20
Rated breaking capacity of shortcircuit	220V	1.5	10	22
	380V	1.5	10	22
	660V	1	3	7.5
Mechanic life		4×10 4	4×10 4	2×10 4
Electric life		5000	5000	1500
Auxiliary Contact Parameters			DC	AC		It can be matched with the auxiliary contact only
		Rated Voltage(V)	24, 60, 110, 220/240	220	380
		Rated Current(A)	2.3, 0.7, 0.55, 0.3	1.8	1.5
Protective Features		Motor Protection	Su Current Multiple	1.05	1.2	6
			Action Time	No action	<2h	>4s
		Distribution Protection	Su Current Multiple	1.05	1.2
			Action Time	No action	<2h

Model	Rated Current(A)	Release Current Setting area(A)	Auxiliary contacts
DZ108-20(3VE1)	0.16	0.1-0.16	without
	0.25	0.16-0.25
	0.4	0.25-0.4
	0.63	0.4-0.63
	1	0.63-1	1NO+1NC
	1.6	1-1.6
	2.5	1.6-2.5
	3.2	2-3.2
	4	2.5-4	2NO
	4.5	3.2-5
	6.3	4-6.3
	8	5-8
	10	6.3-10	2NC
	12.5	8-12.5
	16	10-16
	20	14-20
DZ108-32(3VE3)	1.6	1-1.6	Special
	2.5	1.6-2.5
	4	2.5-4
	6.3	4-6.3
	10	6.3-10
	12.5	8-12.5
	16	10-16
	20	12.5-20
	25	16-25
	32	22-32
DZ108-63(3VE4)	10	6.3-10	Special
	16	10-16
	25	16-25
	32	22-32
	40	28-40
	50	36-50
	63	45-63
