| Prod Model: |
DZ208-25(3VU13. ) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
3ve.3vfa |
| Poles Of Number: |
3 or 4 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Arc-extinguishing Medium: |
MPCB |
| Installation: |
DIN Rail Installation |
Product Description

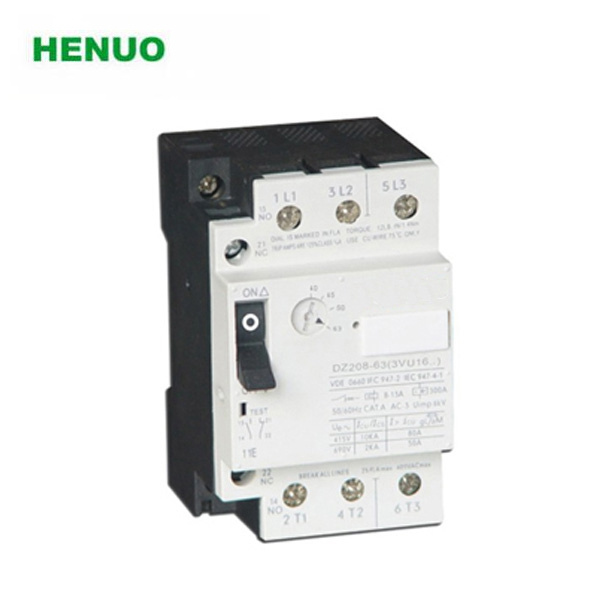

DZ208-25 Motor Protection circuit breaker
Protect of motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit
3VU Motor Protection circuit breaker
3VU series Motor Protection Circuit Breaker
APPLICATION
The product is suitable to be used in circuit of rated voltage up to AC 660V 50/60Hz, rated current from
0.1A to 63A. It is applicable for protection of overload & short circuit of 3 phase squirrel-cage motors. It also can be used as direct starter to start the motor and a switch for changeover the circuit under normal conditions.
Specifications
CE approved Residual Current Device(RCD) FIN is in conformity with the standard of IEC61008.
FIN RCD:
Application
Residual Current Device(RCD) FIN is in conformity with the standard of IEC61008.
It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
FIN ELCB is mainly suitable for varieties of plants and enterprises, buildings, construction, commerce, hotels and families. It can be used in circuits of 1 phase 230V and 3 phase 400V 50/60Hz.
Specifications
Number of Poles 2P, 4P
Rated Current (A) 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Residual Operating Current ()(mA) 10, 30, 100, 300, 500
Rated Residual Non-operation Current ()(mA) ≤0.5
Rated Voltage (V) AC 230/400
Residual Operating Current Scope 0.5~
Residual Current Off-time ≤0.1S
Short Circuit Capacity (Icu) 3000A
Endurance 4000
Protection Degree IP20
Specification
Type FIN25 FIN40 FIN63 FIN100
Rated current In(A) 25 40 63 100
Rated operating current for earth leakage In(A) 0.03,0.1,0.3,0.5 0.1,0.3,0.5
Rated non-operating current for earth leakage In(A) 0.5IN
Voltage Un(V) 240(220)V 415(380)V
Pole 2,4
Main technical Data
Operating time(second) IN 2IN 0.25A(or 5IN)
0.2 0.1 0.04
Limited value of non-operating current for balance load or unbalance load 2In
In minimum value of rated making and breaking capacity In=25 In=40 In=63
200 300 400
Rated conditional short circuit current Inc(A) 1500 2000 3000
Endurance(times) 4000
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
