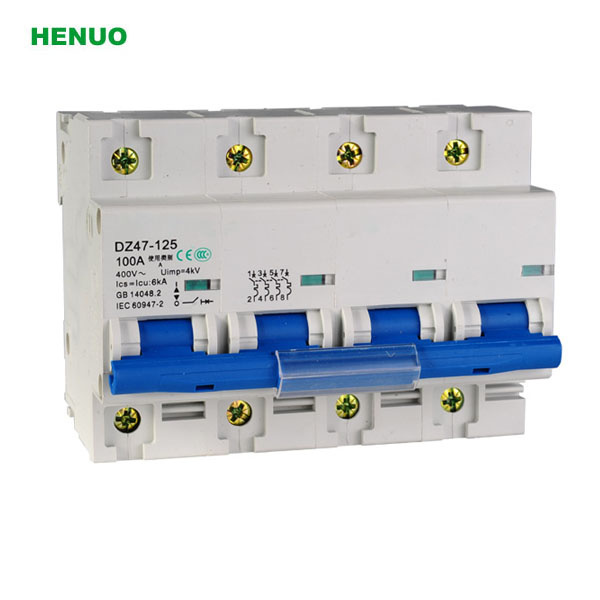

XIAN GOODNESS IMP. AND EXP. CO., LTD. >> Dz47-125 1p 2p 3p 4p 63A 100A MCB

Dz47-125 1p 2p 3p 4p 63A 100A MCB

Dz47-125 1p 2p 3p 4p 63A 100A MCB
Price: US $ 0.8-0.88/Piece
Trade Terms: FOB
Min Order: 200/Piece
Pay Type: L/C,T/T
Prod Model: DZ47-125
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number: Dz47-125
Shell Of Product: PA66
Coil Of Product: Copper
Electrical Life: 4000 Operating Cycles
Terminal Capacity: 1-25 mm2
Terminal Protection: Finger and Hand to
Place Of Origin: Zhejiang, China
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 3
Certification: CCC

Product Description


DZ47-125 1P 2P 3P 4P  MCB

Mini Circuit Breaker(MCB) is applicable to circuit with rated voltage up 400V AC, rated frequency 50/60Hz and rated current up to 63A for protection and control of circuit against overload and short circuit in commercial, household and electric equipment installation. The product is suitable for non-frequently making and breaking operation.

Basic specification and main parameters

Frame class

63,80,100A

Rated working voltage

240V/415V

Rated frequency

50/60Hz

Rated working current

63A,80,100,125

Making and breaking capacity

10KA

Release type

B,C,D

Poles

1,2,3,4P

Mechanical life

20000

Electric life

4000


The over-current tripping unit protection feature

Sequence
NO .

Release

Test
current I/In

Start state

Tripping
time

Expected
results

1

B,C,D

1.13In

Cold state

t≤1h

Not tripping

2

B,C,D

1.45In

Start right after
the serial NO .
1 test

t<1h

Tripping

3

B,C,D

2.55In

Cold state

1s

Tripping

4

B
C
D

3In
5In
10In

Cold state

t≤0.1s

Not tripping

5

B
C
D

5In
10In
20In

Cold state

t<0.1s

Tripping
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
