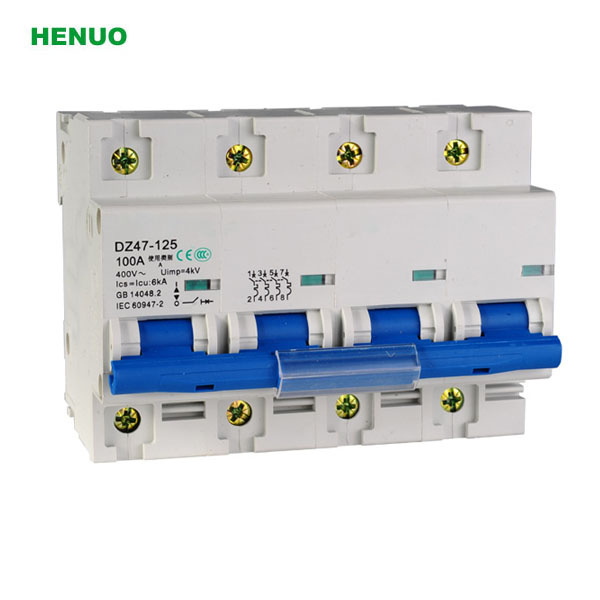

Dz47-125 Nc100 Mini Circuit Breaker MCB
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DZ47-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Tengen |
| Model Number: |
Dz47-125 |
| Poles: |
1p 2p 3p on Request |
| Current Range: |
32A 63A 100A 125A |
| Place Of Origin: |
Zhejiang, China (Mainl |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Specifications
1.CE/CB certificated
2.Designed to protect circuit carrying big current up to 125A
3.Contact position indication
Application:
The product is suitable for power distributions and control circuits which are used in AC50/60HZ,rated current100A and below, rated voltage is up to 400V. It can mainly used as the chief switch in the terminal combined electrical equipments as well as used for unfrequent control all kinds of small power equipments and lightings.
It is suitable for mining industry, building, business, residence,etc.
It is conformity with GB14048.3,IEC60947-3 standards.
Main Technical Data:
1. No. of pole: 1p, 2p, 3p, 4p.
2. Rated current: 32A, 63A, 100A.
3. Rated voltage: 230/400V.
4. Icw: 12Ie, t=1s.
5. Rated making and breaking capacity Icm: 3Ie,1.05Ue,cos=0.65.
6. Rated short-circuit making capacity Icm: 20Ie, 0.1s
Feature:
1. It is composed of insulation cover, operating mechanism, contact system, etc.
2. Compact and modularize design.
3. Operation reliability of the product has been greatly enhanced.
Packaging & Delivery
| Packaging Details: | 12pcs per box for 1P /6pcs per box for 2P /4pcs per box for 3P /3pcs per box for 4P |
| Delivery Detail: | 10-20days after confirm the payment |
DZ47-125(NC100H) high breaking capacity circuit breaker is used for AC 50Hz(60Hz), single pole 240V, 2, 3, 4 poles 415V, for protecting the circuit that overload and short circuit may take place. It can be used in lighting and electric motor distribution system. Meanwhile it is applicable to an unfrequent switch over the electric apparatus and lighting circuit under normal condition
|
| Rated current(A) | 50,63,80,100A,125A |
|
| Rated Voltage(V) | 240v/415v |
|
| Characteristic Curve | IEC60898 C,D |
|
| Rated Capacity of Short-Circuit Breaking | IEC947-2 10KA |
|
| Mechanical and Electrical life | >6000 operations |
|
| Tropicaliration | Treatment 2(RH95% at55 C ) |
|
| Connection method | 50mm 2 for rating |
|
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
