Dz47-63 Ce and CB Certificates 1p-3p MCB

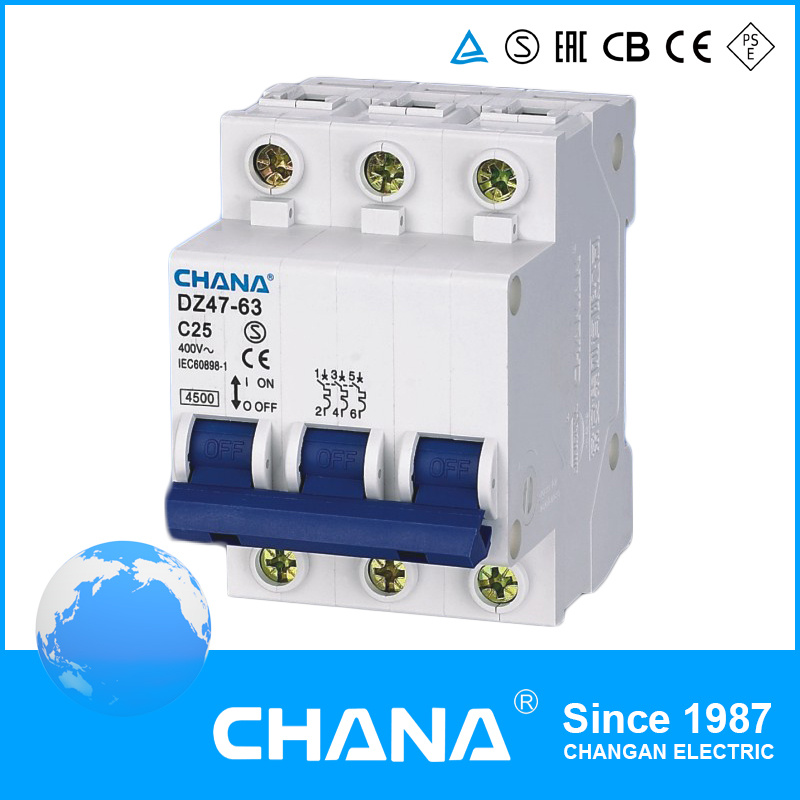

Name: Dz47-63 Ce and CB Certificates 1p-3p MCB
Brand: all-electronics-online.com
SKU: 758472895
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 1.8-1.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Breaking Capacity Range:	3ka,4.5ka
Customized:	Acceptable
Company Certification:	ISO9001,SGS
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CCC
Installation:	DIN Rail
Poles Number:	1,2,3,4

Product Description

Free samples can be provided!!!
Product Description

Model	MINI CIRCUIT BREAKER
Code	DZ47-63
Standard		IEC60898-1
Electrical features	Rated current in	A	1 2 3 4 6 10 16 20 25 32 40 50 63
	Poles		1P,1P+N, 2P, 3P,3P+N, 4P
	Rated voltage Ue	V	240/415
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500
	Rated impulse withstand voltage (1.2/50)Uipm	V	4000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2
	Pollution degree		2
	Themo-magnetic release characteristic		B(3-5In) , C(5-10In) , D(10-20In)
Mechanical features	Electrical life		4000
	Machanical life		10000
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2.0
	Mounting		35mm DIN rail
	Connection		From top and bottom

About US:
Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"
Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem. .

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
