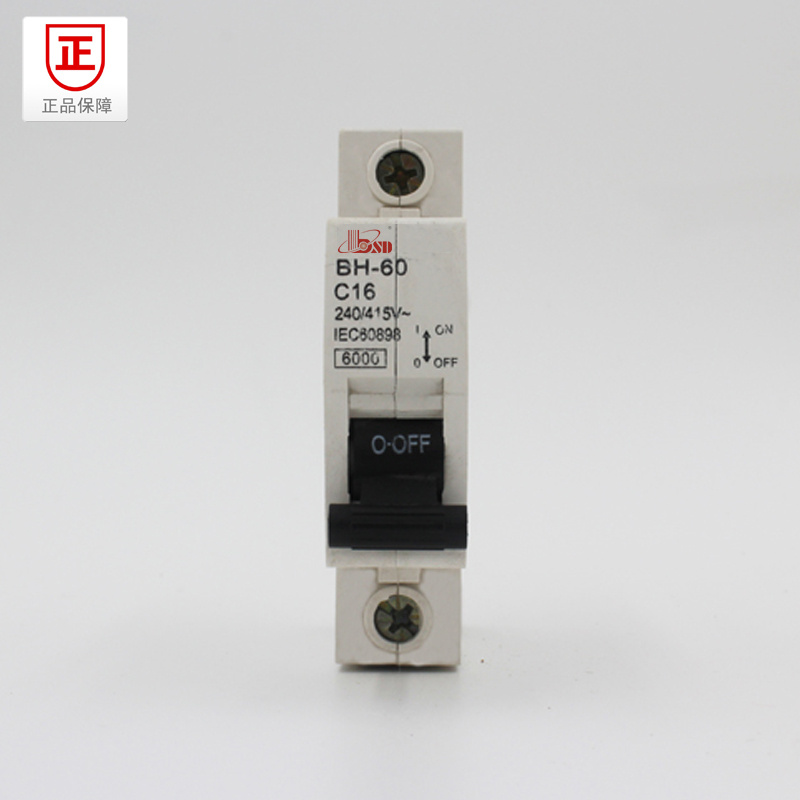

Dz47 MCB for Switch Protecting with Ce Certificate

Name: Dz47 MCB for Switch Protecting with Ce Certificate
Brand: all-electronics-online.com
SKU: 814688355
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	US $ 0.45/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47
Items:	C45 Mini Circuit Breaker
Breaking Capacity.:	6ka
Pole Number:	1,2,3,4 P
Certificate:	Ce ,CQC
Service:	OEM and ODM
Warranty Time:	3 Years
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Product Description

Model Dz47-63 Series 3p High Breaking Capacity MCB

Introduction:

1) DZ47-63 C45N series MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.

2)This product is novel in structure, light in weight, reliable and excellent in performance.

3)It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-retardant and shockproof plastic.

4)This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or
two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases. This product conforms to GB10963 and IEC60898 standards.

Specification

Certificate	SEMKO, CB, CE
Satandard ranges of instantaneous tripping	B-type, C-type, D-type
Rated voltage(V)	230/400
Rated current(A)	6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63
Rated frequency(Hz)	50/60
Rated short-circuit capacity	6000A(In<=40A), 4500A(In=50A/63A)
Number of poles	1, 2, 3, 4
Standard	IEC60898

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
