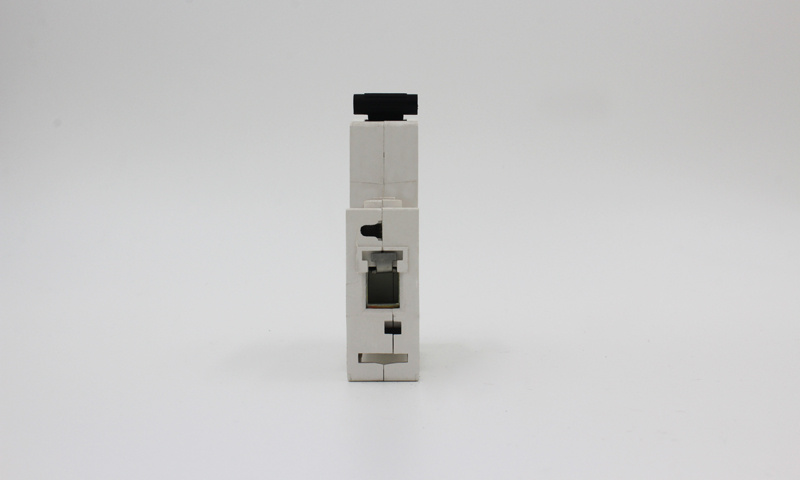

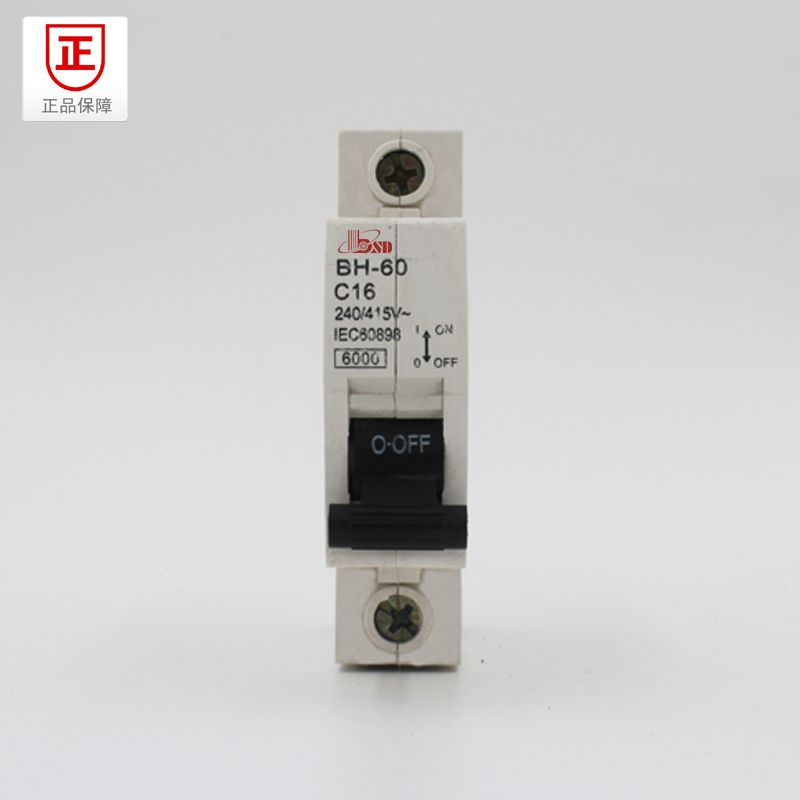

Dz47 Mini Circuit Breaker with High Breaking Capacity

Name: Dz47 Mini Circuit Breaker with High Breaking Capacity
Brand: all-electronics-online.com
SKU: 810268455
Availability: InStock
Rating: 4.4 (48 reviews)

Price:	US $ 0.45/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47
Items:	C45 Mini Circuit Breaker
Warranty Time:	3 Years
Pole Number:	1,2,3,4 P
Certificate:	OEM and ODM
Service:	OEM and ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Product Description

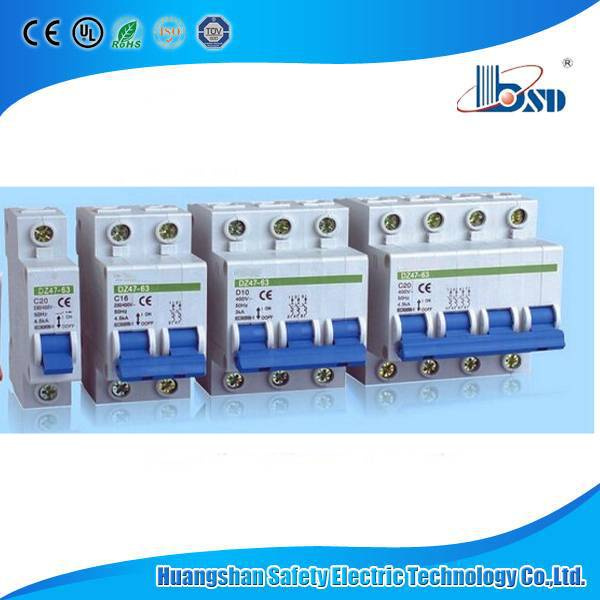

Model Dz47-63 Series 3p High Breaking Capacity MCB

Introduction:

DZ47 series mini circuit breaker is applied in the circuit of AC50Hz/60Hz, rated current 63, rated voltage 230V/400V or below. This product is
mainly used in the electric circuit and equipment of modern buildings, to protect them from the overload, short circuit and unfrequent operating and isolution.

Specification:

Rated voltage: 230/400V AC

Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Pole: 1P, 2P, 3P, 4P

Tripping curve: B, C, D type

Breaking capacity: 3000A, 4500A, 6000A,10000A

Merits

1.high breaking capacity

2.beautiful appearance

3.light in weight

4.excellent and reliable function

5.In accordance with IEC60898, GB10963

6.Protection functions: overload, short circuit, unfrequent operation and isolation.

Certificate	SEMKO, CB, CE
Satandard ranges of instantaneous tripping	B-type, C-type, D-type
Rated voltage(V)	230/400
Rated current(A)	6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63
Rated frequency(Hz)	50/60
Rated short-circuit capacity	6000A(In<=40A), 4500A(In=50A/63A)
Number of poles	1, 2, 3, 4
Standard	IEC60898

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
