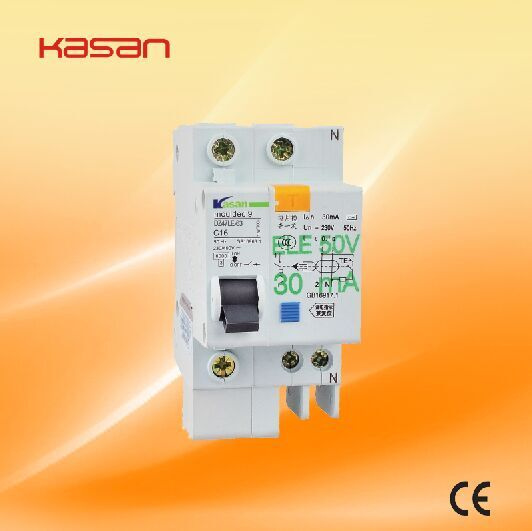

Dz47 Residual Current Circuit Breaker

Name: Dz47 Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 704248822
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	dz47
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard.:	IEC/En61009-1
Type.:	1p+N 2p+N 3p+N
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CE

Product Description

Application range

DZ47 series mini circuit breaker is applied in the circuit of AC50Hz, rated voltage 400V, rated current 63A/100A. I t has the functions of leakage, overload and short circuit, and it also can add the functions of overvoltage protection and under voltage protection as need as the users. It is mainly used in the lighting of the buildings and the protection to the distribution system.

Main technical parameter

product	DZ47LE Mini Circuit Breaker
type	DZ47LE-63
rated current (IN)	6,10,16,20,25,32,40,50,63A
rated voltage (Un)	230Vac/400V
number of poles	1P+N, 2P, 3P, 3P+N, 4P
range of instantaneous tripping overcurrent	C,D
rated short-circuit capacity(Icn)	6000A
rated service short circuit capacity(Ics)	6000A
energy limiting class	3
safety distance"a"grid	35mm
ambient temperature	30°C
method of mounting	flush type,for mounting on rail
degree of protection against moisture	IP20
connection	screw type terminals,pillar terminal
rated voltage of shunt release	230Vac
Rated insulation voltage (Ui)	500V
mechanical durability	10000 times
electrical durability	6000 times
operating frequency	120times/h
connection	connect with terminal block
connection capacity	connect within 16 mm2 wiring
tightening torque	2 N.M
weight	1P+N 0.29kg
	3P 0.42kg
	3P+N(4P) 0.55kg

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
