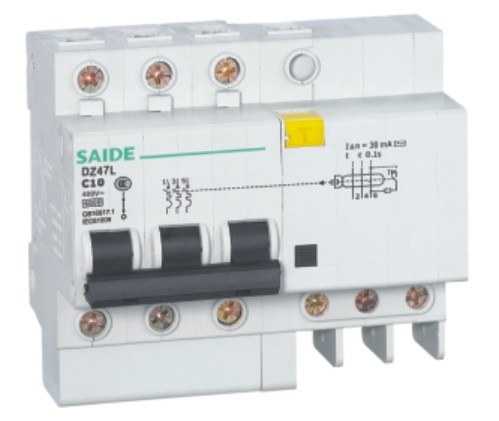

Dz47le-63 Residual Current Circuit Breaker with Over Load Protection

Name: Dz47le-63 Residual Current Circuit Breaker with Over Load Protection
Brand: all-electronics-online.com
SKU: 819375915
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 2.3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	dz47-63
Color:	Black, White
Functional:	Overload, Short-Circuit, Undervoltage
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

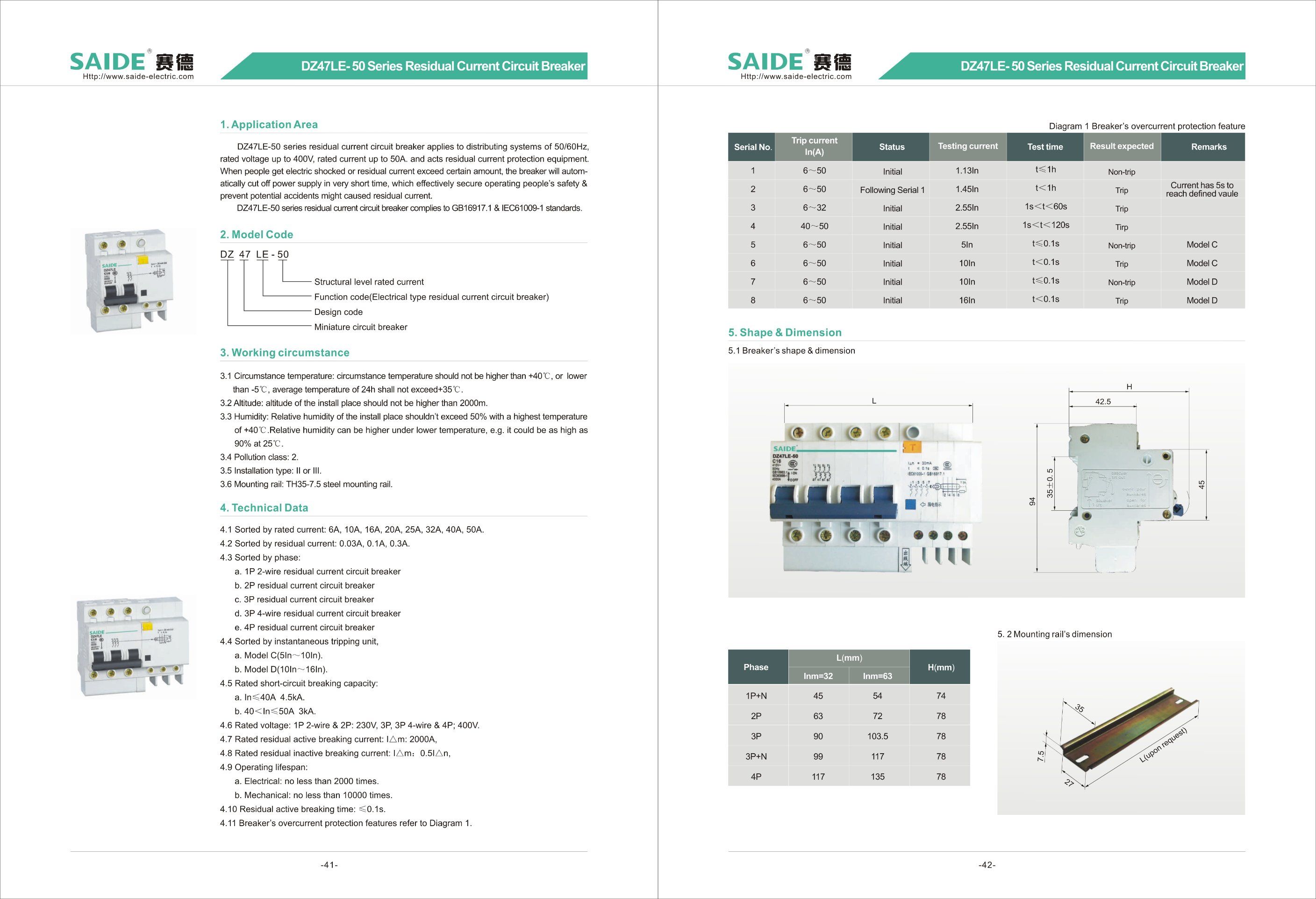

Our catalog

Technical Data

Standard: IEC60898-1,GB10963
Pole No.: 1P, 2P, 3P, 4P
Rated voltage: 240/415V AC
Rated current(A): 10,13,16,20,25,32,40,50,63
Tripping curve: B, C, D
Rated short-circuit capacity(Icn): 3-4.5Ka
Rated frequency: 50/60Hz
Rated impulse withstand voltage: 6.2kV
Electro-mechanicla endurance: 4000

Frame class			63A
Rated working voltage			240V/415V
Rated frequency			50/60Hz
Rated working current			6,10,16,20,25,32,40,50,63A
Rated short-circuit breaking capacity			6Ka
Poles			1,2,3,4P
Mechanical life			10000
Electric life			4000

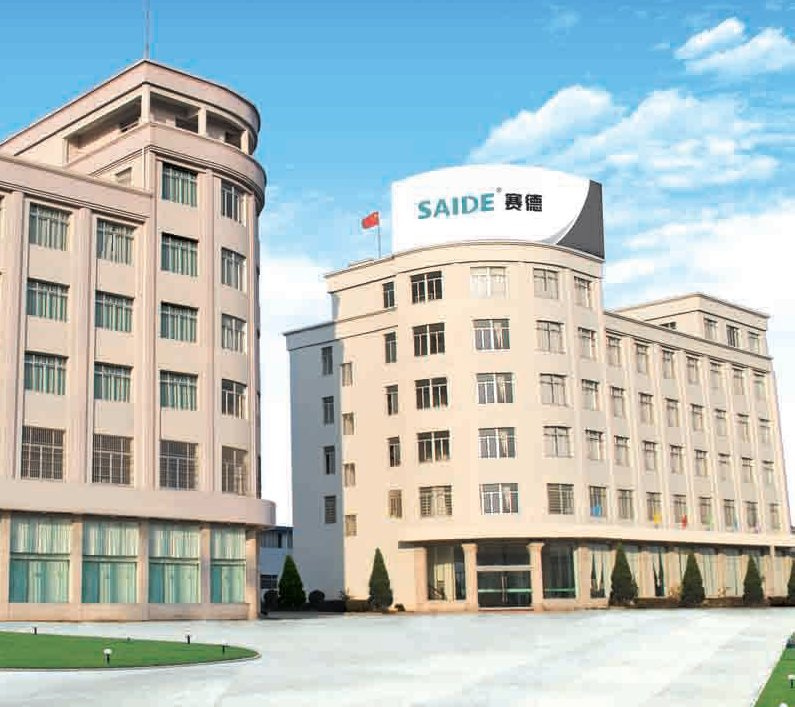

Our Factory

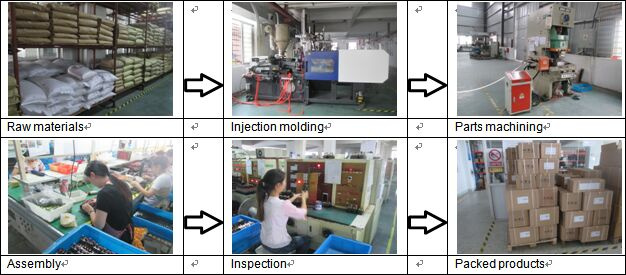

Our workshop

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
