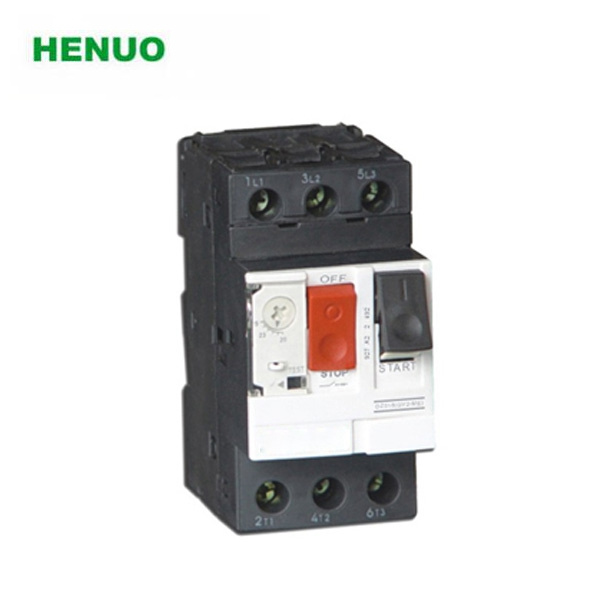

Dz518 Gv3-Me MPCB Motor Protection Circuit Breaker
| Price: |
US $ 22.5-24.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DZ518 GV3-ME |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
3ve.3vfa |
| Poles Of Number: |
3 or 4 |
| Motor(Kw) 660V: |
13kw,26kw,58kw |
| Rated Current(a): |
20A 63A |
| Rated Voltage(V): |
660V |
| The Color: |
White and Black |
| Place Of Origin: |
Zhejiang, China |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Arc-extinguishing Medium: |
MPCB |
| Installation: |
DIN Rail Installation |
Product Description
DZ518 GV3-ME MPCB Motor Protection Circuit Breaker
Protect of motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit
DZ518 GV3-ME MPCB motor protection circuit breaker
AN+GV2-M
APPLICATION
GV series motor protection circuit breaker are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
Specifications
DZ518(GV2)series electric motor protection circuit breaker is conformity with IEC60947.2, IEC60947-4.1, andEN60947-1 standards.
DZ518(GV2 )series motor protecting breaker adopts the design of module,It has beautifulshape,small value,complete range of function and reliable performance.DZ518 series is conformity with IEC60947.2, IEC60947-4.1, andEN60947-1 standards,Switch an contactor can make up the starting of the motor The prection grade of the case of DZ518 series can reach IP55. DZ518 series has three types of products. DZ518(GV2-M)series is button-controlling motor with hot magnetic protecting breaker.
Specification
DZ518(GV2-M)(ME) |
M01C |
0.1-0.16 |
M02C |
0.16-0.25 |
M03C |
0.25-0.40 |
M04C |
0.40-0.63 |
MO5C |
0.63-1 |
MO6C |
1-1.6 |
MO7C |
1.6-2.5 |
MO8C |
2.5-4 |
M10C |
4-6.3 |
M14C |
6-10 |
M16C |
9-14 |
M18C |
10-16 |
M20C |
13-18 |
M21C |
17-23 |
M22C |
20-25 |
M32C |
24-32 |
The rated power of three-phase electromtor controlled by breaker(GV2 motor circuit breaker)
Adjusting range of rated current (A) |
Standard power of three-phase electromotor( KW) AC-3
50/60Hz |
230/240V |
400V |
415V |
440V |
500V |
690V |
0.1-0.16 |
- |
- |
- |
- |
- |
- |
0.16-0.25 |
- |
- |
- |
- |
- |
- |
0.25-0.4 |
- |
- |
- |
- |
- |
- |
0.4-0.63 |
- |
- |
- |
- |
- |
0.37 |
0.63-1 |
- |
- |
- |
0.37 |
0.37 |
0.55 |
1-1.6 |
- |
0.37 |
- |
0.55 |
0.75 |
1.1 |
1.6-2.5 |
- |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
2.5-4 |
0.37 |
1.5 |
1.5 |
1.5 |
2.2 |
3 |
4-6.3 |
0.75 |
2.2 |
2.2 |
3 |
3.7 |
4 |
6-10 |
1.1 |
4 |
4 |
4 |
5.5 |
7.5 |
9-14 |
2.2 |
5.5 |
5.5 |
7.5 |
7.8 |
9 |
13-18 |
3 |
7.5 |
9 |
9 |
9 |
11 |
17-23 |
4 |
11 |
11 |
11 |
11 |
15 |
20-25 |
5.5 |
11 |
11 |
11 |
11 |
18.5 |
24-32 |
5.5 |
15 |
15 |
15 |
18.5 |
23
|
Packaging & Delivery
Packaging Details: | standard packing |
| Delivery Detail: | 15-20days(according to your quantity) |
