E-Motor LiFePO4 Battery Pack 72V 50ah

Name: E-Motor LiFePO4 Battery Pack 72V 50ah
Brand: all-electronics-online.com
SKU: 800798225
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 1530-1580/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDFP-60V-50Ah
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Battery Packs for E-Bike
Electrolyte:	Electrolyte

Product Description

Lithium Ion Battery cells and packs for E-bike, E-motorbike, E-golf car, E-wheelchair and E-Scooter, E-Skateboard, etc.

To realize mutiple power battery with different voltage and capacity ,we have new battery cells with big capacity and long lifespan and goodperfomance, which could build packs in series and parrallel.

LiFePO4 Battery pack 72V 50Ah
This battery pack is best for replacement of sealed lead acid batteries. Best applications are for electric vehicles and energy storage applications. Custom made battery packs are available.
LiFePO4 Battery Pack 72V 50Ah

LiFePO4 Battery Pack Characteristics
Model		TDFP-72V-50Ah
Capacity(0.2C₅A)		50Ah
Nominal Voltage		72V
Max. Charge Voltage		87.6V
Discharge Cut-off Voltage		60V (recommended)
Working Voltage Scope		876V~60V
Max. Charge Current		25A
Continuous Discharge current		50A
Max. Discharge current		100A 3Sec
PCM control Discharge current		50A (continuous)
Weight (Approx.)		45Kgs
Battery Dimensions		460x420x370mm(HXWXL)
Impedance (Max, at 1000Hz)		Single Cell≤25 mΩ
Cycle Life (80DOD%)		>2000 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	10A×5hrs
	Quick	25A×2hrs
Operating Temperature	Charge	0ºC~45ºC/ 32^oF~113^oF
	Discharge	-20ºC~60ºC/ -4^oF~149^oF

Battery Application
LiFePO4 battery packs can used for E-bike, E-motorbike, E-golf car, E-wheelchair and E-Scooter, etc.

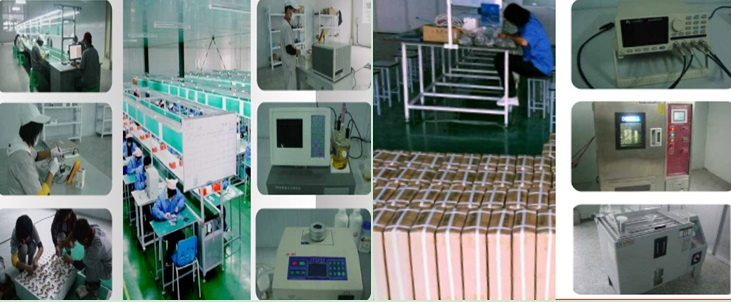

This is our factory's pictures and warmly welcome to visit us.

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
