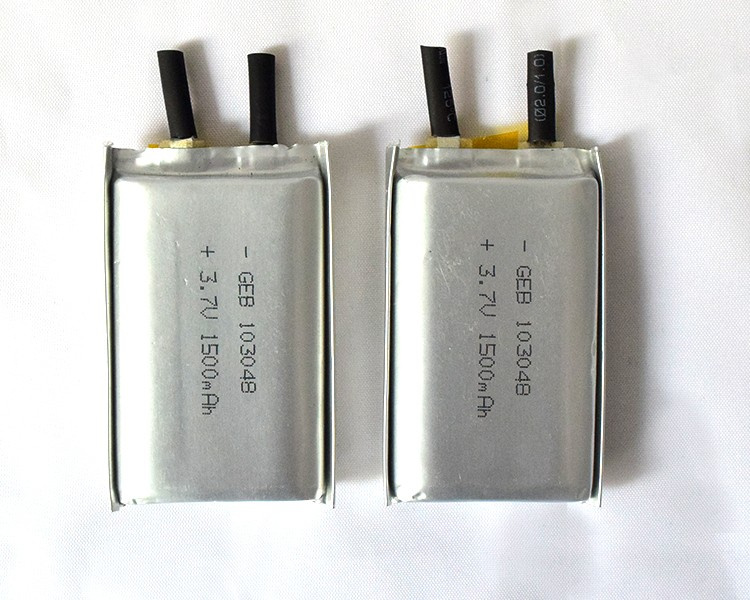

| Prod Model: |
103048 1500mah |
| Type: |
Lithium-Polymer Battery |
| Usage: |
Electric Bicycle |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.2V |
Product Description
Overview
Quick Details
Model Number:LX103048
Rechargeable:Yes
Use:e bicycle, digital camera, gps tr5acker, wireless phones, e scooter
Type:Standard Battery
Place of Origin:Guangdong, China (Mainland)
Norminal Voltage:3.7v
Norminal Capacity:1500mAh
Warranty:12 Months
Cycle life:500 times
Impedance:≤60mΩ
Assembling Battery Pack:customized
Discharge Cut-off Voltage:2.75V
Certificate:CE/RoHS/UN38.3/MSDS
Packaging & Delivery
Packaging Details
1. Standard export carton packaging or Custom-made Package
2.Mode of Transport:
By UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive).
By air cargo( It takes about one week to arrive)
By sea shipment ( It takes about one month to arrive).
Delivery Time
Shipped in 10 days after payment
Items | Parameter |
| Battery model | LX103078 |
| Nominal voltage | 3.7V |
| Minimum capacity | 1500mAh(0.2C discharge) |
| Charging voltage | 4.2V |
| Discharging cut-off voltage | 2.75V |
| Standard charging | 0.2C /4.2V |
| Max charging | 1.0C /4.2V |
| Standard discharging | 0.2C/3.0V |
| Max discharging | continuous discharge | 1.0C/3.0V |
| non-continuous discharge | 2.0C/3.0V |
| Shipment voltage | ≥3.85V |
Battery pack impedance | ≤60mΩ |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~60°C |
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) |
-10ºC~55ºC | (1 month ≥90% ) |
| 20±5ºC is the recommended storage temperature |
Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
Reference standard | GB/T 18287-2013,IEC/EN61960, UL1642 |
Product advantages
- Intelligent Battery Pack Design
- Environmental Friendly Chemistry
- High Energy Density
- High Power Density
- Fast Charge Capability
- Excellent Cycle
Main Applications
A.Telecommunications: Cellular phone, interphone, blue tooth earphone, ect.
B.Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television, electronic cigarettes, electricity sound box, ect.
C.Portable Devices: GPS,PDA, E-book ,PMP, PSP, laptop, walkie-talkies , portable medical device, etc.
D.Illuminate Devices: Miner lamp, search light, ect.
E.Others: Electric Toys, RC models, model aircraft, backup power, mobile power supply, hand electric drill, ec.
Remark
If it is not the model you need, please feel free to let me know. I would like to help you to check and provide you with the best offer.
Special model which should be customized, we could help you. Just let me know your requirements, best solution and offer will be given to you.
Related Products
Instruction&Storage
1. Lithium Polymer Battery Precautions and Safety Instructions
(1)Guarantee to keep the battery in good repair in 12 months from the shipment.
(2)Please use 0.5C current to charge up 60% capacity after the battery placed 3 months.
(3)Before Use the battery, carefully read the instruction manual and battery labels on the surface.
(4)Need to use the original battery charger, and should be placed in a dry ventilated place.
(5)Such as long-term when not in use, the battery charger to charge state half full, remove the battery from the device and separated, to avoid metal contact with the battery, causing
short-circuit or damage to the phenomenon.
(6)In use or during storage, battery found there has been high fever, leakage, odor, distortion and other anomalies, please stop using it immediately and stay away from the battery.
(7)Do not short-circuit the battery positive and negative, and careful not to allow the battery to moisture, to avoid danger.
(8)Using, keep away from heat, High pressure place, and do not beat, hit the battery.
(9)Battery end of life should be immediately removed from the equipment, Please properly handle security of spent batteries, do not put into fire or water.
(10) Shocks, high temperature, or contacts of sharp edge components should not be allowed in battery pack assembling process.
2.Storage of Lithium Polymer Battery
(1)Batteries should be charged to about 30% to 50% of capacity.
(2)Indoor storage in cool conditions without direct sun light on the packs or cartons.
(3)Store batteries in a dry location with low humidity, and a temperature range of -20°C to +30°C.
(4) Long-term storage can accelerate batteries self-discharge and lead to the deactivation of the batteries.To minimize the deactivation effect,store batteries in atemperature range of +10°C to +30°C.
(5) When charging for the first time after long-term storage,deactivation of batteries may have led to decreased capacity.Recover such batteries to original performance through repeating several cycles of fully charging and discharging.
(6) When storing batteries for more than 6 months,charge at least once every 6 months to prevent leakage and deterioration in performance due to self-discharging
