| Prod Model: |
E1042Ad6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 17bit Absolute Encoder: |
42mm |
| Rotary Number: |
Single Button |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Structure: |
Self-Locking |
| Operation: |
Open Type |
| Certification: |
CE |
| Condition: |
New |
Product Description

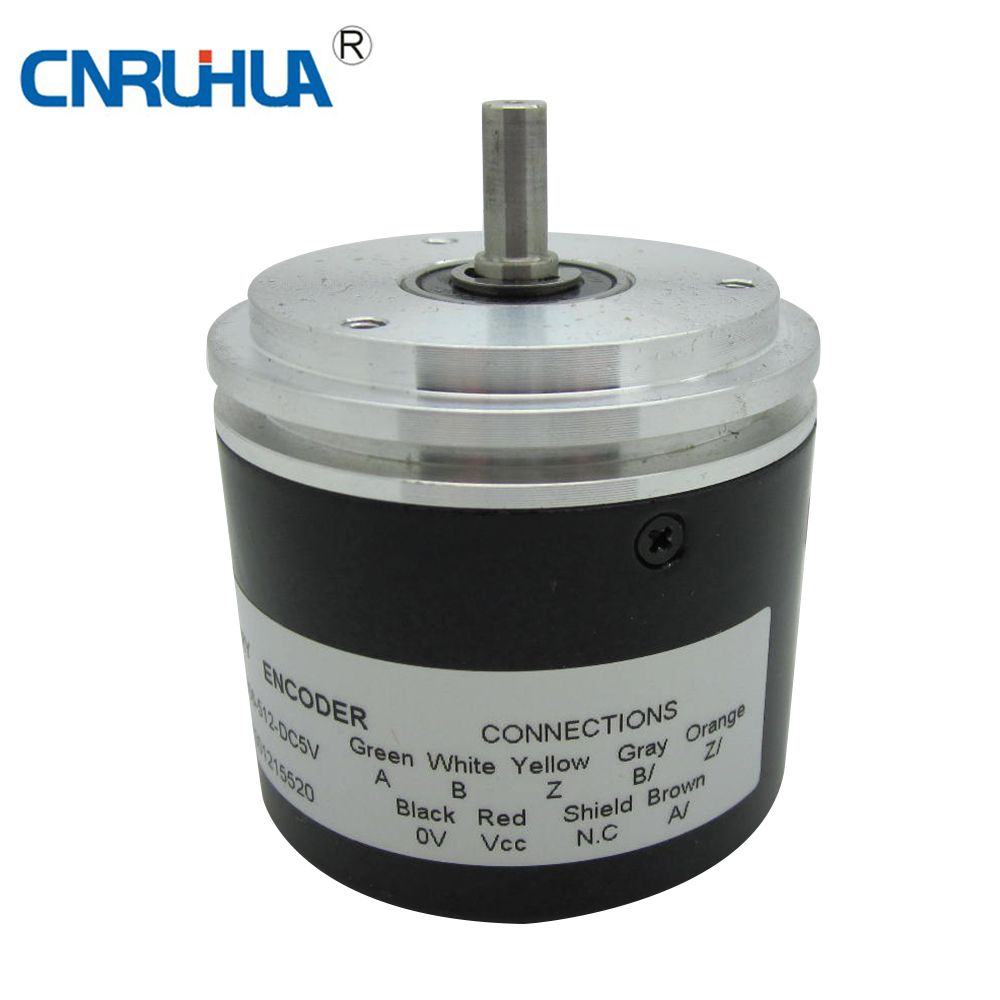

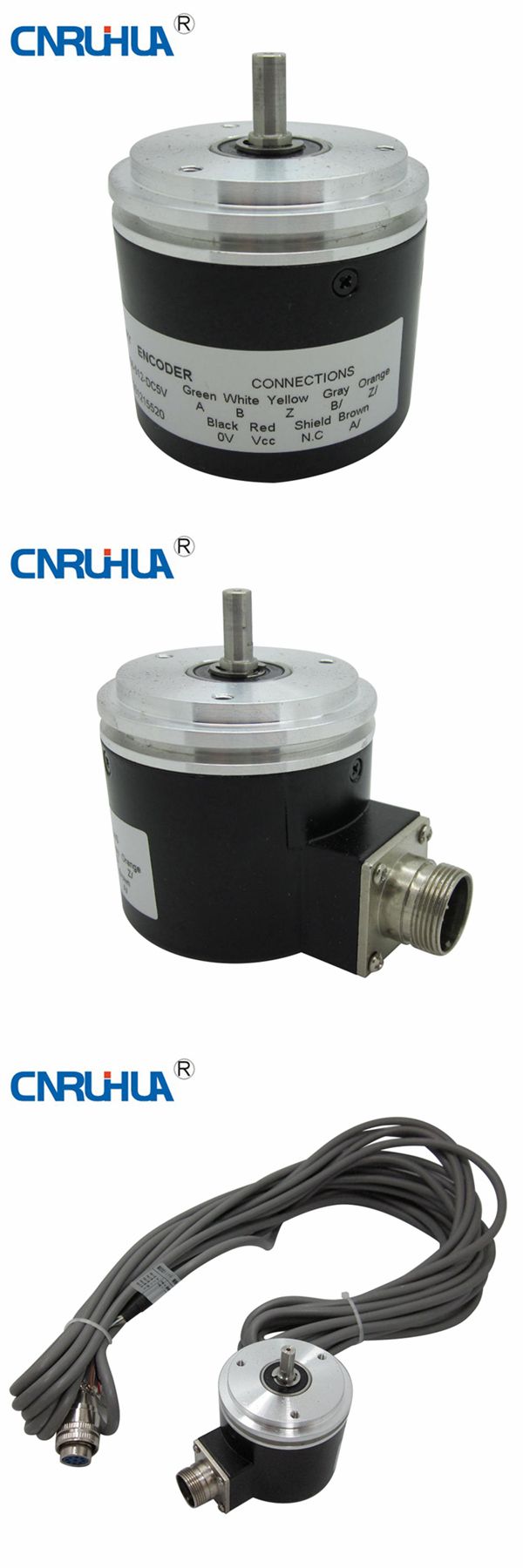

Absolute encoder
Technician indexes, houring diameter is 42mm, shaft diameter is 6mm
Model E1042Ad6
Bit 17bit
Resolution ratio 10
Precision 30
Signal output RS485 serial output, baud rate 57.6kbps, date updating rate500 times/S
Working temperature -10 degree~+55 degree
Shake 3G
Impact 20g
Work power DC 12V 0.3A
Frame header date
The first byte The second byte the third byte the fourth byte the fifth byte
0ffH 81H A higher in the middle of eight in the low of eight
RS485 communication protocol
Signal ouput is 4 cores, cable length 1M, Connection:
Name DC5V GND TXD+ TXD-
Color Red Black White Green
2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money
| ELECTRICAL SPEC |
| output circuit | open collector NPN output | voltage output | push pull output | line driver output |
| supply voltage | 5-24 | 5-24 | 5± 0.25 5-24 | 5± 0.25 5-24 |
| current consumption | ≤ 80mA | ≤ 80mA | ≤ 80mA | ≤ 150mA |
| load current | 40mA | 40mA | 40mA | 60mA |
| single high level | min Vcc*70% | min Vcc-2.5V | min Vcc-1.5V | min 3.4V |
| single low level | Max 0.4V | Max 0.4V | Max0.8V | Max 0.4V |
| rising time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| declining time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| response frequency | 300kHz | 300kHz | 300kHz | 300kHz |
| MECHANICAL SPEC | | | |
| number of pulses | starting torque without sealing | Max load permitted on shaft | shock resistance | vibration proof |
| 2500 | ≤ 0.05Nm | radial 50N, Axial 20N | 50G /11ms | 10G 10-2000Hz |
| rotational inertia | Working temperature | Storage temperature | Protection class | Weight |
| 4x10 -8 kgm 2 | - 30 ~ 85 C | - 35 ~ 95 C | IP65 | 100g |
