| Fiber Mode: |
Sm/mm |
| Sm Insertion Loss: |
Type 0.4 dB, Max 1dB |
| Mm Insertion Loss: |
Type 0.2 dB, Max 0.5dB |
| Sm Return Loss: |
50dB, Min 40dB |
| Mm Return Loss: |
30dB, Min 20dB |
| Operating Temperature: |
-40ºC to +85ºC |
| Storage Temperature: |
-40ºC to +85ºC |
| Type: |
Simplex |
| Features: |
Available with Flange for Simplex, Saving Panel S |
| Application 1: |
Telecommunication/ CATV/ LAN & Wan/Network/FTTH |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Connector Type: |
E2000 APC |
| Structure: |
E2000 |
Product Description

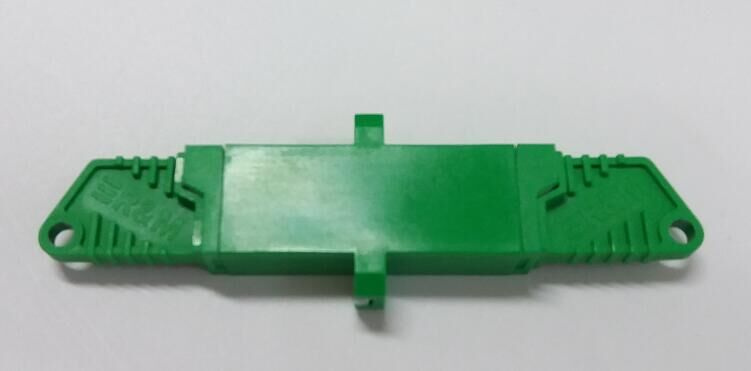

E-2000 SM/MM Simplex Optic Fiber Adapter
Tags:Fiber Optical Adapter
Intro:Fiber Optic Adapter is a fiber optic connector on the activities of linking components
Parameter:E-2000 SM/MM,Simplex, Insertion Loss: S.M(Zroz):Type 0.4 dB, Max 1dB M.M(P.B):Type 0.2 dB, Max 0.5dB, Return Loss: S.M(Zroz) 50dB, Min 40dB M.M 30dB , Min 20dB ,Plastic Material
Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
E-2000 fiber optic adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve.
E-2000 Adapter Specification
Features:- Single mode, Multimode and Angle PC
- NTT standard compatible
- Available with flange for Simplex, saving panel space
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Application:- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Parameter:| Product | SC Adapter |
| Mode | S.M | M.M | APC |
| Insertion Loss | Type 0.4 dB, Max 1dB | Type 0.2 dB, Max 0.5dB | Type 0.15dB, Max 0.4dB |
| Return Loss | 50dB, Min 40dB | 30dB , Min 20dB | 50dB, Min 40dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
Order Information:| CODE | SLEEVE | TYPE | HOUSING |
| H26 | No
| 1. Simplex
| 1. SM Blue
2. MM Blue
3. APC Green
|
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB / C&F
