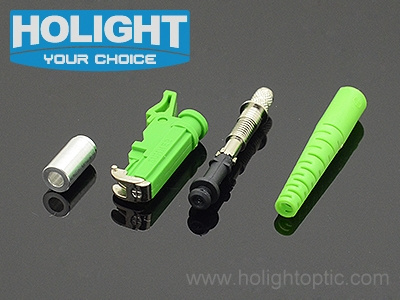

E2000/APC Fiber Optic Connector

Name: E2000/APC Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 807355905
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 1-4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	C06EA
Lead Time:	3-5 Working Days
MOQ:	No Demand
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Structure:	E2000
Connector Type:	E2000
Brand:	H+S and R&M

Product Description

Fiber optic connectors are unique. Fiber cables transmit pulses of light instead of electrical signals, so the terminations must be much more precise. Instead of merely allowing pins to make metal-to-metal contact, fiber optic connectors must align microscopic glass fibers perfectly in order to allow for communication. While there are many different types of fiber connectors, they share similar design characteristics. Simplex vs. duplex: Simplex means 1 connector per end while duplex means 2 connectors per end. There are three major components of a fiber connector: the ferrule, the connector body, and the coupling mechanism.

APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
· Industrial, medical & military

FEATURE
· The integrated shutter protects the ferrule all round against dust, and prevent laser emanating
· The integrated spring ensure the obscuration of the connector housing
· Especially suitable for serried installation
· Special ferrule of short time polish
· Comply with IEC 61754-15 specification and RoHS
· Low insertion Loss
· High Return Loss
· One-piece construction and pull-proof design
· Free-floating pre-radiuses ceramic ferrule
· Precision anti-rotation key and Corrosion resistant body
· Variety of boot types and colors

Parameter

Item	Single mode	APC	Multi mode
Insertion Loss	≤0.3db
Durability	0.2db Max
Operating temperature	-40 ºC to +75 ºC
Storage temperature	-40 ºC to +75 ºC
Remark	Ferrule concentricity SM <1um; MM <4um
	Ferrule inner diameter tolerance : SM125+1/-0um; MM127+3/-0um
	Ferrule outer diameter tolerance : ±0.5um
