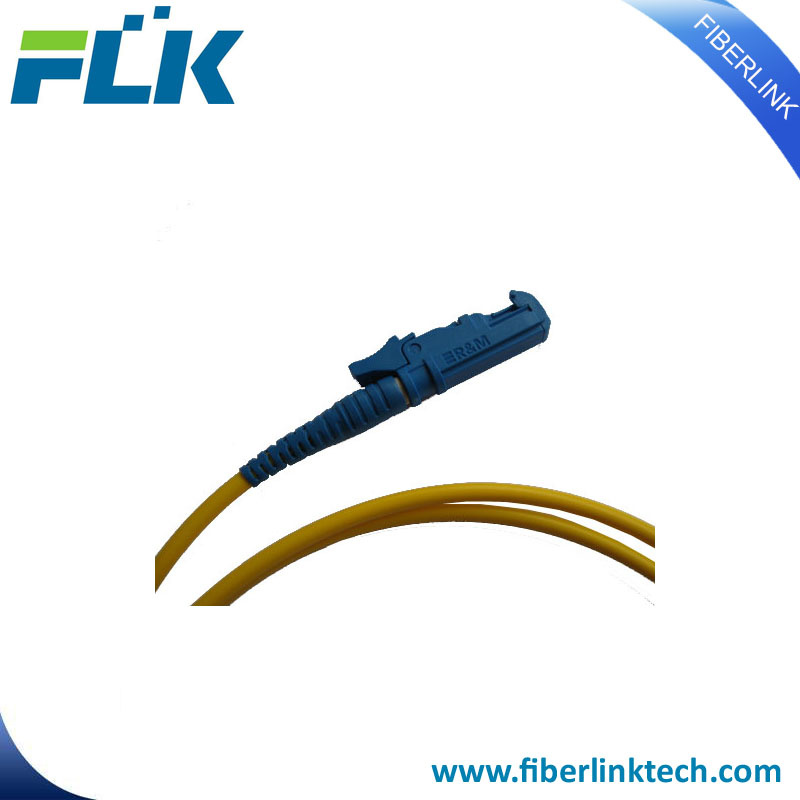

E2000 Fiber Optic Patch Cord Assembly

Name: E2000 Fiber Optic Patch Cord Assembly
Brand: all-electronics-online.com
SKU: 832665105
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	US $ 0.5-3/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	E2000
Application:	Communication
Certification:	ISO9001
Type:	Single-Mode or Multi-Mode
Connection Structure:	E2000
Core:	Simplex or Duplex
Sheath Material:	LSZH

Product Description

Descriptions

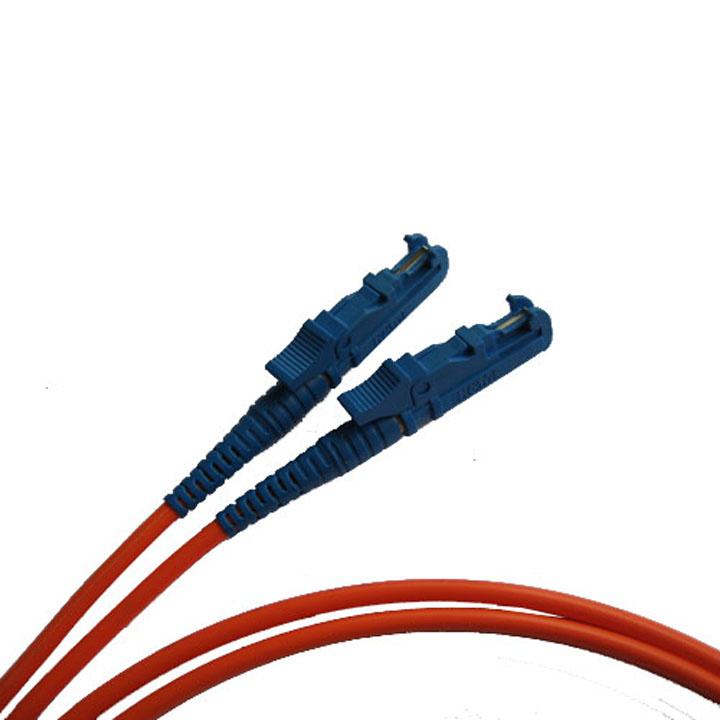

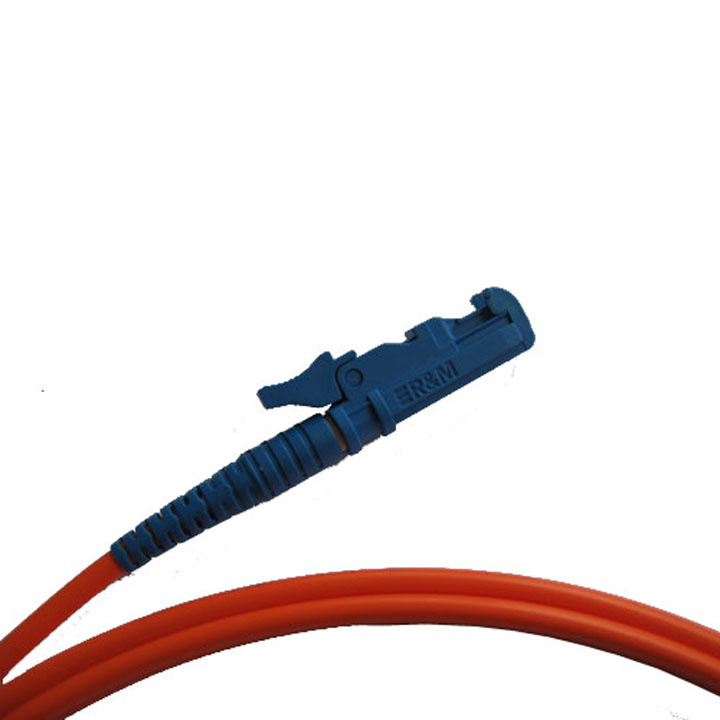

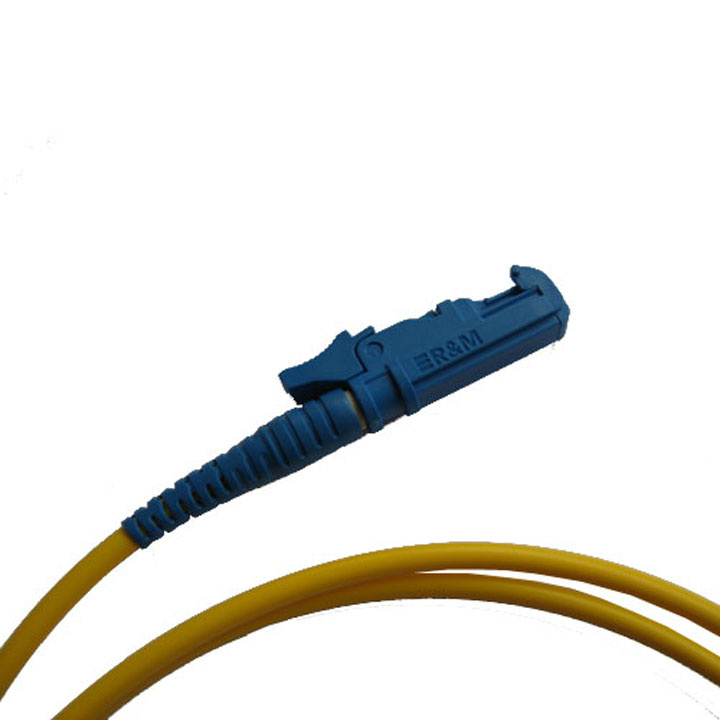

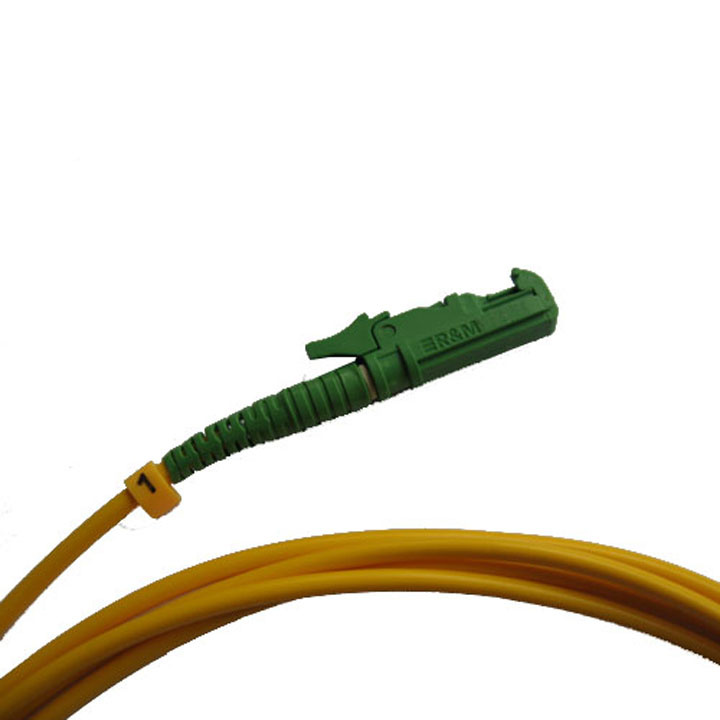

E2000 fiber optic patch cords are with E2000 fiber optic connectors which were developed by Diamond, E2000 features a spring-loaded shutter used to protect the ferrule from dust and scratches. E2000 fiber connector is similar size of SC fiber connectors. E2000 fiber optic patch cords can be single mode or multimode, PC or APC polish. E2000 fiber optic patch cord colors are same as SC fiber optic patch cord, blue for single mode PC E2000 fiber cable, green for single mode APC E2000 cable.

Features
The ferrule is protected by the integrated spring-loaded shutter
The connector housing protects the ferrule all round against dust, dirt and scratches
No different expansion coefficients due to monopoly ceramic ferrule
Latched push-pull locking type
PC or APC polishing available
Interferential parameters available
Hybrid patch-cords are available upon request
Pigtail available

Applications
Connection of optical transmission equipments E2000-SM-APC
Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Computer Network
ODF of optical transmission systems
High speed data transmission networks

Specification

Types	Single mode	Multi mode
Diameter (mm)	Ф0.9, Ф2.0, Ф3.0
Fiber cable	Simplex or Duplex available
Operating Wavelength	1310, 1550nm
Insertion Loss (dB)	≤ 0.3 (PC) ≤ 0.3 (UPC) ≤ 0.3 (APC)	≤ 0.5 (PC) ≤ 0.5 (UPC)
Return Loss (dB)	>= 45 (PC) >= 50 (UPC) >= 60 (APC)	>= 35 (PC) >= 40 (UPC)
Exchangeability	≤ 0.2 dB
Repeatability	≤ 0.2 dB
Operating Temperature	-40 to +75 ºC
Storage Temperature	-40 to +85 ºC

Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
