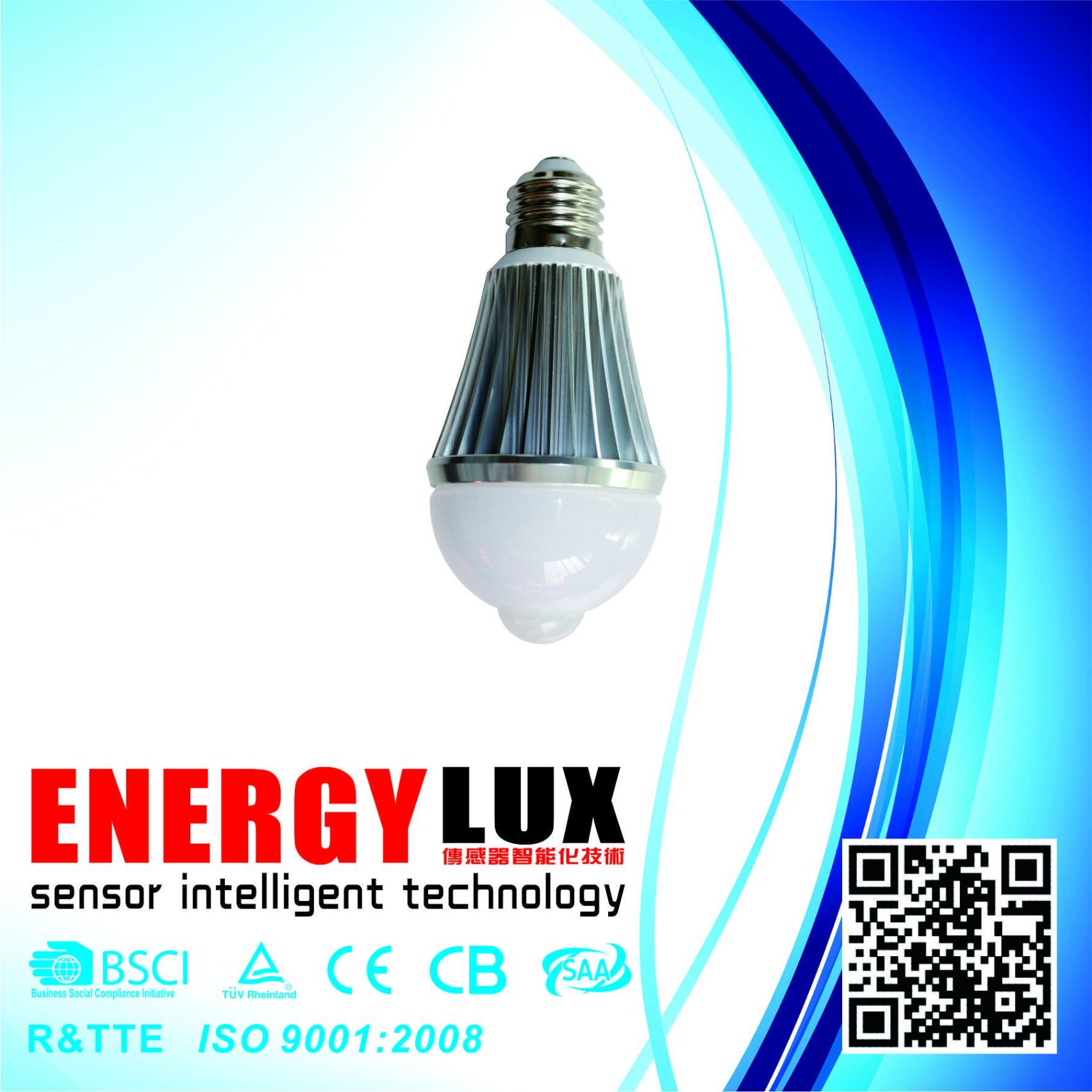

E27 Infrared Motion Sensor Light for Popular Item

Name: E27 Infrared Motion Sensor Light for Popular Item
Brand: all-electronics-online.com
SKU: 817287045
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 5-10/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ES-B04

Product Description

Welcome to use ES-B04 Sensor LED Bulb!
The product is an energy-saving sensor LED bulb, which adopts integrated circuit and precise detecting components. It can be on when one comes and be off automatically after one leaves. Its performance is stable. It can identify day and night.

SPECIFICATION
Power Source: 110-240V/AC                Detection Range: 360°
Power Frequency: 50/60Hz                  Ambient Light: <20LUX
Working Temperature: -20~+40ºC            Time-Delay: 60sec
Installation Height: 2-3.5m                   Rated Load: 6W
Detection Distance: 6m (max)                Total luminance: 480lm

FUNCTION

Can identify day and night: The original setting in LUX is less than 20LUX. It only works in this environment (<20lux), such as dusk or evening .In daylight, it will stop working.
Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic.(setting time is 60sec)

INSTALLATION

Switch off the power;
Connect the sensor lamp with E27 lamp holder.
Switch on the power to test and use

TEST

Before the testing, make sure the working ambient is less than 20LUX
When you switch on the power, the sensor lamp doesn't work at once. It needs to preheat 30 seconds. When the lamp gets the induction signal, it will be turned on. After the lamp is turned off, it will be turned on again when the sensor gets induction signal within 5~15 sec.
After the first induction, the lamp will make sense again 5~10sec later. The load should work. When there is no induction signals in the sensor, the lamp stops working;

Note: when testing in daylight (more than 20LUX), the sensor lamp will not work!

Energylux is located in east China Port city Ninghai, Ningbo, where it has convenient transportations and developed economies. Energylux is dedicated in the R&D, manufacturing, and marketing of sensors, intelligent lighting products. After years of development, Energylux now has mold development department, injection department, PCB manufacturing department and final products assembly department, it accepts OEM and ODM orders.

Based on the slogan of "Science Originates From Human Being", Energylux has always dedicated itself in the R&D of modern intelligent home electrical products. Its product range covers, infrared sensors, microwave sensors, intelligent sensor lights, photocells, smoking alarms, etc. Most of the products are CE, CB, SAA, RoHS, REACH, TUV MARK approved, can meet the wide requirements of clients from different regions. Now Energylux products are selling to European countries, America, Russia, and Southeast Asia countries.

We, Energylux, sincerely wish to create a bright future with you together!
