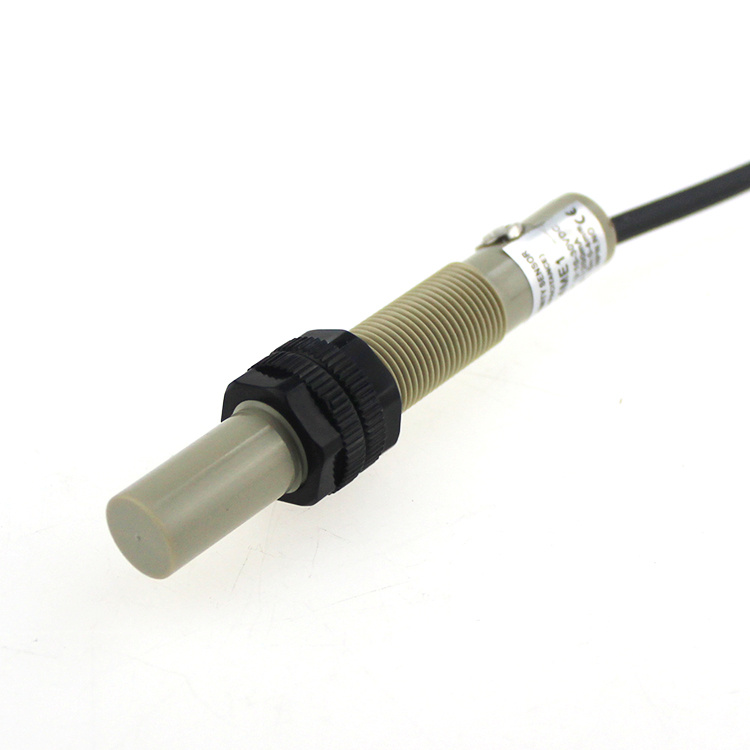

E2K-X4me1 Liquid Level Detect 4mm Sensing Range No 10-30VDC Capacitive Sensor
| Price: |
US $ 6.6-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
E2K-X4ME1 |
| Detecting Distance: |
4 mm ±10% |
| Output Signal: |
NPN No |
| Voltage: |
DC6-24V |
| Output Current: |
200mA |
| Standard Detected Object: |
Conductor and Dielectric Body |
| Response Frequency: |
Metal or ABS Resin , |
| IP: |
IP67 |
| Setting Distance: |
0 to 2.8 mm |
| Principle: |
Capacitive |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitive Sensor |
| Application: |
Level Detection |
Product Description
Feature
Capacitive type, Unshielded, Cylinder typeM12,
DC Three-wires models,
Sensing distance 4 mm,
Operation mode NO, NPN,
Pre-wired models (2 m)
Tecnical Parameter
| Sensing head size | M12 |
|---|
| Type | Cylinder type
Capacitive type
Unshielded |
|---|
| Sensing distance | 4 mm ±10% |
|---|
| Setting distance | 0 to 2.8 mm |
|---|
| Differential distance | 4% to 20% of sensing distance |
|---|
| Sensing object | Conductor and dielectrics |
|---|
| Standard sensing object | With grounded metal 50 x 50 x 1 mm |
|---|
| Response frequency | 100 Hz (Average value) |
|---|
| Power source | DC Three-wires models |
|---|
| Power supply voltage | 12 to 24 VDC |
|---|
| Operating voltage range | 10 to 30 VDC |
|---|
| Current consumption | 15 mA max. |
|---|
| Control output (Output type) | NPN |
|---|
| Control output (Switching capacity) | 200 mA |
|---|
| Control output (Residual voltage) | 2 V (Load current 200 mA with cable length of 2 m) |
|---|
| Indicator | Detection indicator (red) |
|---|
| Operation mode | NO |
|---|
| Protective circuit | Output short-cut protection, Output reverse polarity protection, Reverse polarity protection, Surge suppressor |
|---|
| Ambient temperature | Operating: -25 to 70 ºC
Storage: -25 to 70 ºC
(no icing) |
|---|
| Ambient humidity | Operating: 35 to 95% RH
Storage: 35 to 95% RH
(no condensation) |
|---|
| Temperature influence | ±20% max. of sensing distance in temperature range of -25 to +70 ºC
(As the basis for sensing distance of 23 ºC) |
|---|
| Voltage influence | ±2% max. of sensing distance in rated voltage range ±20%.
(As the basis for sensing distance at standard power voltage) |
|---|
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
|---|
| Dielectric strength | Between charged parts and the case: 1,000 VAC 50/60 Hz for 1 min |
|---|
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | 500 m/s**2, 3 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC: IP66
Company standard: Oil-proof |
|---|
| Connection method | Pre-wired models
(Cable length: 2 m) |
|---|
| Weight (Packed state) | approx. 65 g |
|---|
| Material | Case: Heat-resistant ABS resin
Sensing surface: Heat-resistant ABS resin
Clamping nuts: Polyacetal |
|---|
| Accessories | Instruction manual |
|---|
