Prod Model:	E3F1

Product Description

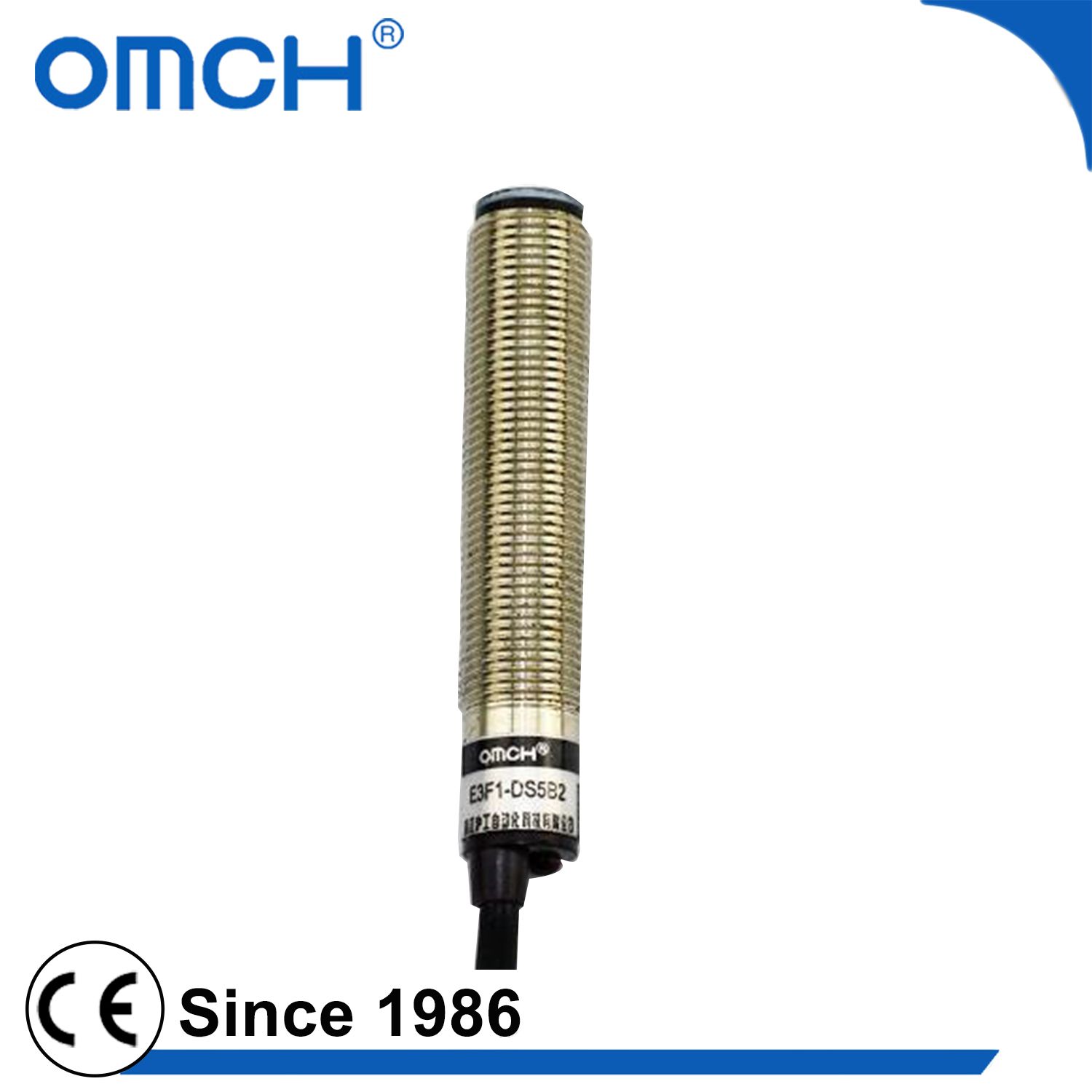

E3F1 M12 Series Reflection / Through Beam / Diffuse Reflection Photoelectric Switch, Photo Sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection;short-circuit protection,can directly connect with PLC
Newly added current over-load protection
Long service life, high reliability and strong resistance property to environment
Red Led indicates that it's avaible to detect the sensor operationg state
Newly added metal housing to improve the installation intensity
Counter measure to improve the housing intensity and to solve disconnection
IP65 protection structure

Type and Specification
We sincerely welcome agents from all over the world

Dimension			M12x1
Detection method			Diffuse type	Feedback reflex	through beam type
DC type	NPN	NO	E3FI-DS8C4	E3F1-R1NK	E3F1-3DN1-3L
		NC	E3F1-DS8B2	E3F1-R1N2	E3F1-3DN2-3L
	PNP	NO	E3F1-DS9P1	E3F1-R1PK	E3F1-3DP1-3L
		NC	E3F1-DS8P2	E3F1-R1P2	E3F1-3DO2-3L
Detection range			8cm ± 10%	1m ± 10%	3m ± 10%
Detection target			transparent/opaque object	opaque object	opaque object
Detection range regulation			fixed	sensitivity adjuster	fixed
Respnose time			1ms
Power supply			DC 12-24V(6-36V)
Current output			<300mA
Ambient temperature			-25~65
Production structure			IP65
