E3jk 30cm Relay Output Diffuse Reflection Photoelectric Switch, Photocell Sensor

Name: E3jk 30cm Relay Output Diffuse Reflection Photoelectric Switch, Photocell Sensor
Brand: all-electronics-online.com
SKU: 840547415
Availability: InStock
Rating: 4.6 (69 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E3JK

Product Description

E3JK 30cm Relay Output Diffuse Reflection Photoelectric Switch, Photocell Sensor

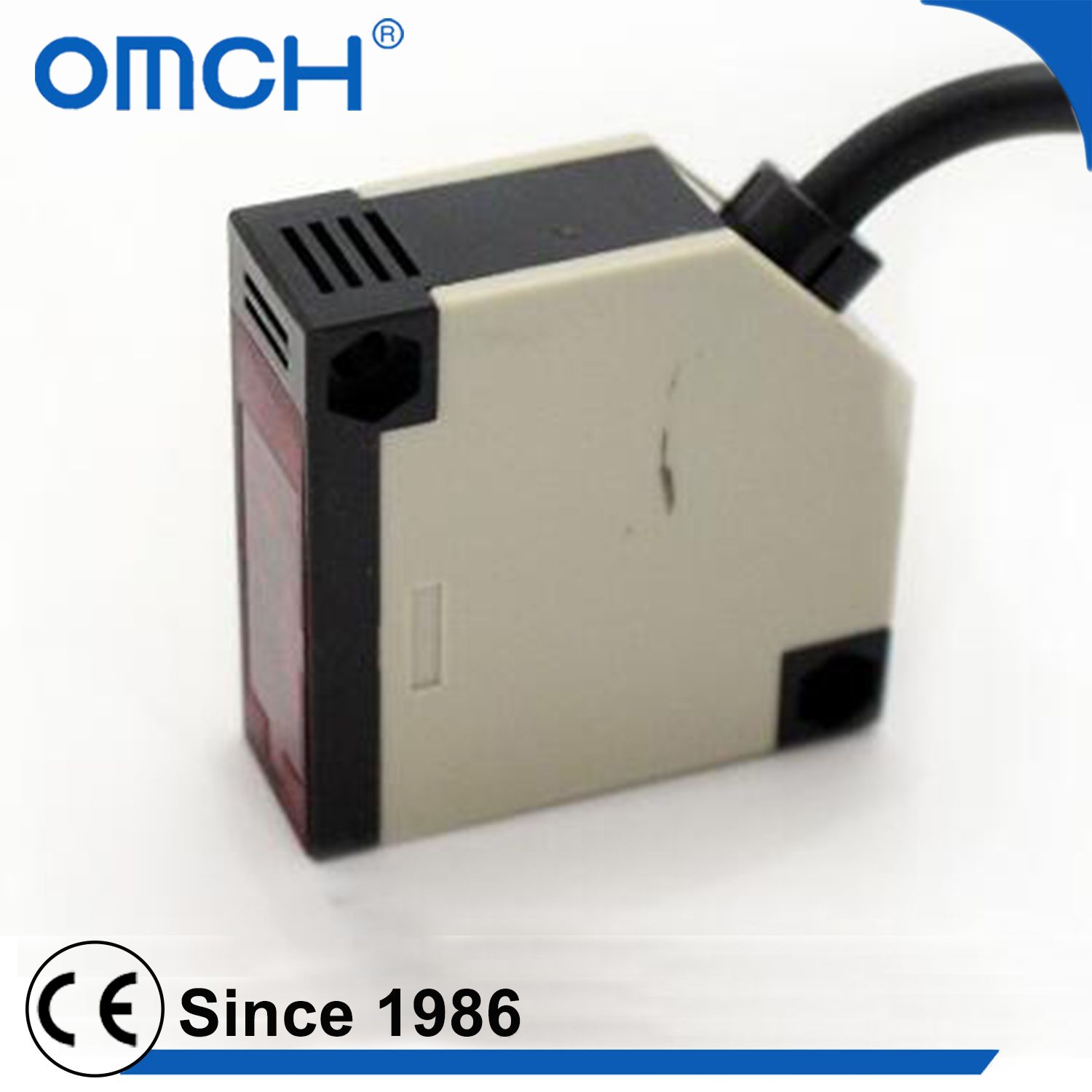

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Multiple functions, built-in relay, can drive high current load
Cabling type and connection terminal type
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it's available to derect the sensor operating state
Countermeasure to improve the housing intensity and to solve disconnection
Can provide time-delay output type
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

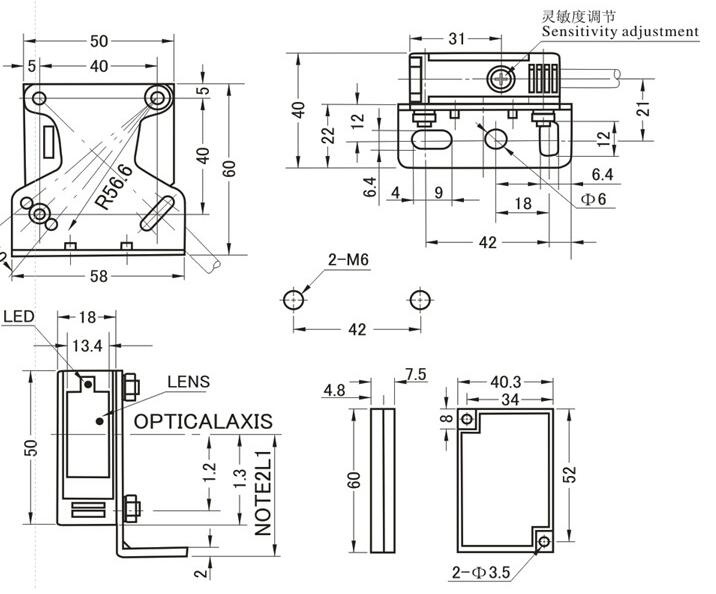

Dimension			18×50×50
Detection method			Diffuse Reflection type	Reflection type	Through Beam type
type	Relay outpu	DC illuminate	E3JK-DS30M1	E3JK-R4M1	E3JK-5DM1-5L
		AC illuminate	E3JK-DS30M1	E3JK-R4M1	E3JK-5DM1-5L
		DC non-illuminate	E3JK-DS30M2	E3JK-R4M2	E3JK-5DM2-5L
		AC non-illuminate	E3JK-DS30M2	E3JK-R4M2	E3JK-5DM2-5L
Detection range			30cm±10%	4m±10%	5m±10%
Detection target			Transparent/Opaque object	Opaque object	Opaque object
Detection range regulation			Sensitivity adjuster	Sensitivity adjuster	Fixed
Response time			30ms	30ms	30ms

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
