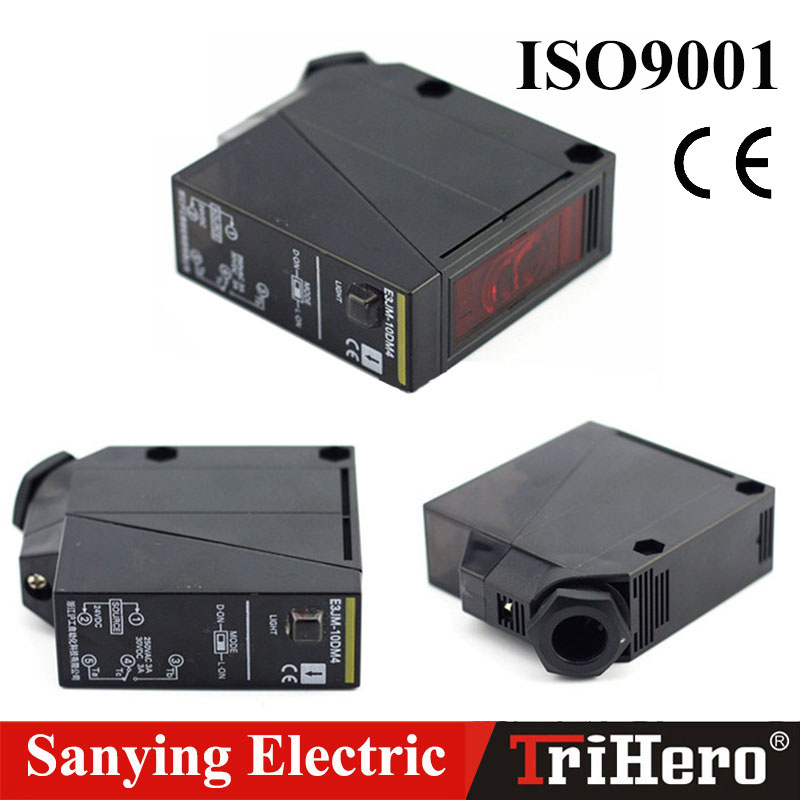

E3jm Built-in Power Supply Photoelectric Sensor Switch
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
E3JM |
| Light Source: |
Infrared LED |
| Power Supply Voltaged: |
12 to 240 VDC±10%;24 to 240 VAC±10% |
| Sensing Distance: |
10m,4m,700mm |
| Standard Sensing Object: |
Opaque: 14.8-mm Dia. Min. |
| Degree Of Protection: |
IP66 |
| Connection Method: |
Terminal Block |
Product Description
Built-in Power Supply Photoelectric Sensor
E3JMFeatures:Easy to wire and adjust.Specifications:| Sensing method | Through-beam model | Retro-reflective model
(with MSR function) | Diffuse-reflective model |
|---|
| Model | E3JM-10[]4(T)-N | E3JM-R4[]4(T) | E3JM-DS70[]4(T) |
|---|
| Sensing distance | 10 m | 4 m (When using E39-R1) | White paper (200 × 200 mm):
700 mm |
|---|
| Standard sensing object | Opaque: 14.8-mm dia. min. | Opaque: 75-mm dia. min. | --- |
|---|
| Differential travel | --- | 20% max. of sensing distance |
|---|
| Directional angle | Both Emitter and Receiver
3° to 20° | 1° to 5° | --- |
|---|
| Light source (wavelength) | Infrared LED (950 nm) | Red LED (660 nm) | Infrared LED (950 nm) |
|---|
| Power supply voltage | 12 to 240 VDC±10%, ripple (p-p): 10% max.
24 to 240 VAC±10%, 50/60 Hz |
|---|
Power
consump-
tion | DC | 3 W max. (Emitter 1 W max.
Receiver 2 W max.) | 2 W max. |
|---|
| AC | 3 W max. (Emitter 1 W max.
Receiver 2 W max.) | 2 W max. |
|---|
| Control output | Relay output (E3JM-[][]M4 (T) model): SPDT, 250 VAC, 3A (cosφ=1) max., 5 VDC, 10 mA
min.
DC SSR output (E3JM-[][]S4 (T) model): 48 VDC, 100 mA max. (residual voltage: 2 V max.)
Light-ON/Dark-ON selectable |
|---|
Life
expectancy
(relay
output) | Mechanical | 50,000,000 times min. (switching frequency: 18,000 times/h) |
|---|
| Electrical | 100,000 times min. (switching frequency: 1,800 times/h) |
|---|
Response
time | Relay output | (E3JM-[][]M4 (T) models) Operate or reset: 30 ms max. |
|---|
DC SSR
output | (E3JM-[][]S4 (T) models) Operate or reset: 5 ms max. |
|---|
| Sensitivity adjustment | --- | One-turn adjuster |
|---|
| Timer function * | ON-delay/OFF-delay/One-shot delay switch selectable
Delay time: 0.1 to 5 s (adjustable), only for E3JM-[][][]4T |
|---|
Ambient illumination
(Receiver side) | Incandescent lamp: 3,000 lx max. |
|---|
Ambient temperature
range | Operating: -25°C to 55°C, Storage: -30°C to 70°C (with no icing or condensation) |
|---|
| Ambient humidity range | Operating: 45% to 85% (with no condensation), Storage: 35% to 95% (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. at 500 VDC |
|---|
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min. |
|---|
Vibration
resistance | Destruction | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
|---|
| Malfunction | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
|---|
Shock
resistance | Destruction | 500 m/s2 3 times each in X, Y, and Z directions |
|---|
| Malfunction | 100 m/s2 3 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC 60529: IP66 |
|---|
| Connection method | Terminal block |
|---|
| Weight (packed state) | Approx. 270 g | Approx. 160 g |
|---|
| Material | Case | ABS (Acrylonitril Butadiene Styrene) |
|---|
| Lens | Methacrylic resin |
|---|
| Cover | Polycarbonate |
|---|
Mounting
Bracket | Iron |
|---|
| Accessories | Mounting Bracket (with screw), Nuts, Terminal Protection Cover, One set of cable
connection nuts (excluding -US Models), Instruction manual, Reflector (E39-R1: only for
Retro-reflective Sensors) |
|---|
Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.
The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.
After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.
With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
