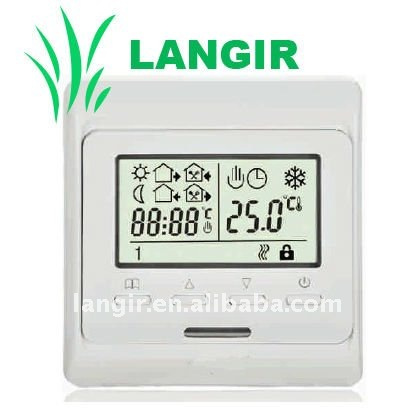

E5 Weekly Programmable Digital Heating Thermostat, Heating Thermostat with LCD

Name: E5 Weekly Programmable Digital Heating Thermostat, Heating Thermostat with LCD
Brand: all-electronics-online.com
SKU: 765821145
Availability: InStock
Rating: 4.8 (145 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	Langir
Model Number:	E5
Product Usage:	Temperature Controller
Colour:	White,Ivory
Certificate:	CE,ISO

Product Description

Specifications

E5 weekly programmable digital heating thermostat
1.CE ISO certificate
2.Weekly programming set
3.Fast delivery

E5 weekly programmable digital heating thermostat with LCD

Introduction

Weekly circulation digital programming thermostat with LCD screen, which has 6-event everday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...

Technical data

Voltage: 220V/230V

Power comsuption: 2W

Setting range: 5°c~90°c (Can adjust to:35-90°c)

Limitation range: 5...60°c ( factory setting: 35°c)

Switching differential: 0.5-10°c adjustable( factory setting±1°c)

Ambient temperature: -5~50°c

Protective housing: IP20
Housing material: Anti-flammable PC

Selection table

Model Number	Current	Application
E51.713	3A	Built-in&floor sensor,floor limit sensor,weeking programing
E51.723	3A	Built-in&floor sensor,floor limit sensor,weeking programing. A potential-free output
E51.716	16A	Built-in&floor sensor,floor limit sensor,weeking programing

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
