Ea1000 Series 500va-2000va CE Certificates Offline UPS

Name: Ea1000 Series 500va-2000va CE Certificates Offline UPS
Brand: all-electronics-online.com
SKU: 672995125
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 10-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EA1000 seris
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cover:	Plastic
Color:	Black or Optional Color
Transfer Time:	2-6ms
Battery Type:	1PC&2PCS 12V7ah;1PC&2PCS 12V7ah
Size:	29595140mm
Phase:	Single Phase
Type:	Standby
Protection:	Short Circuit
Brand:	Must/OEM

Product Description

500va-2000va CE Certificates Offline UPS, EA1000 series

1, delivery time fast
2, 500va to 2000va
3, plastic or iron case
4, samples 3-5 days
5, T/T L/C West union

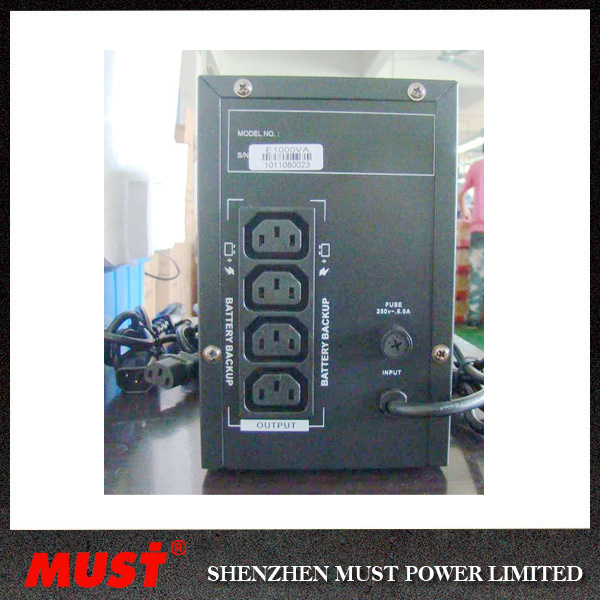

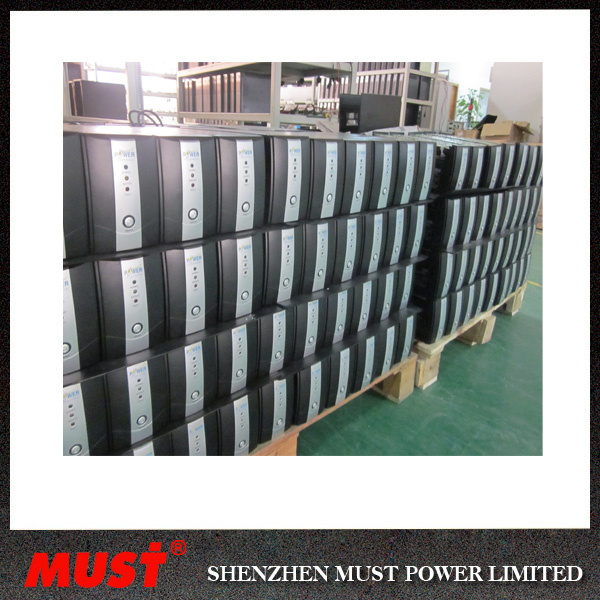

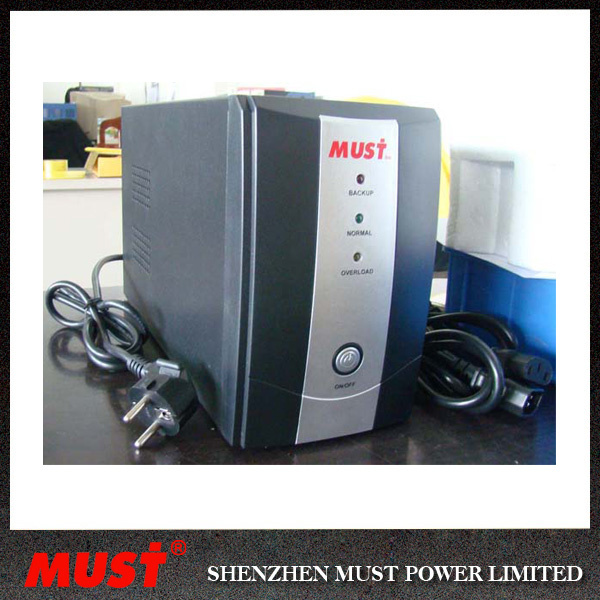

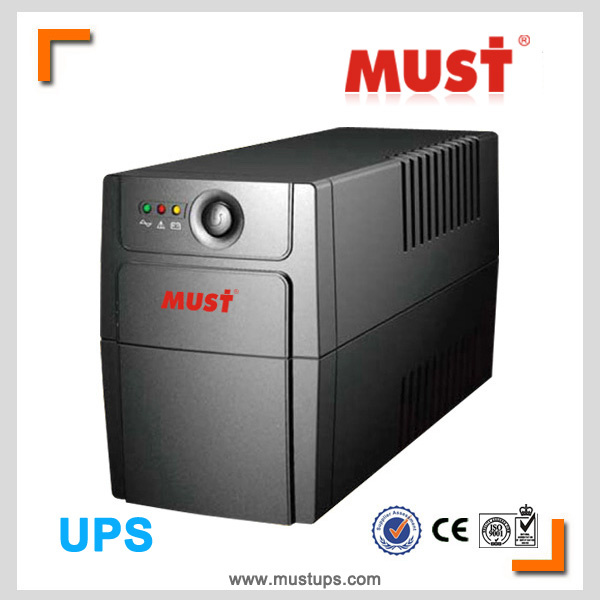

Photos:

MODEL		EA1000-500	EA1000-650	EA1000-800	EA1000-1000
CAPACITY		500VA/300W	650VA/390W	800VA/480W	1000VA/600W
INPUT
Voltage	Nominal Voltage	110/120 VAC or 220/230/240 VAC
	Acceptable Voltage Range	90-145 VAC/150-290 VAC
Frequency Range		50 /60 Hz
OUTPUT
AC Voltage Regulation (Batt. Mode)		±10%
Frequency Range (Batt. Mode)		50 Hz or 60 Hz
Transfer Time (Typical)		2-6 ms
Waveform (Batt. Mode)		Modified Sinewave
BATTERY
Battery Type & Numbers		12 V 7 Ah x 1	12 V 7 Ah x 1	12 V 9 Ah x 1	12 V 7 Ah x 2
Back up Time(at a PC load		8 minuters	10 minuters	20 minuters	20 minuters
Typical Recharge Time		10 hours to 90% after complete discharge
INDICATORS
AC Mode		Green LED lighting
Battery Mode		Green LED flashing every 4 seconds
Low Battery at Battery Mode		Green LED flashing every second
Fault		Red LED lighting
Battery Fault at AC modes		Green LED flashing three times every 2 seconds
Battery Week at AC modes		Red LED flashing every 2 seconds for 30 seconds
Overload		Red LED flashing every twice every second
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Fault		Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)		29595140
Net Weight (kgs)		5.5	6.2	6.8	10.5
ENVIRONMENT
Humidity		0 to 90% Relative Humidity(Non-condensing)
Operating Temperature		0°Cto 40°C
