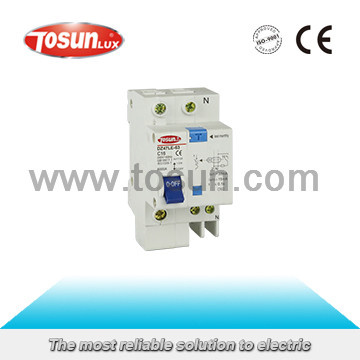

Earth Leakage Circuit Breaker with Over Current Protection

Name: Earth Leakage Circuit Breaker with Over Current Protection
Brand: all-electronics-online.com
SKU: 754308775
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 2.67-2.75/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47LE-63 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	240/415V
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	TUV, CB
Operation:	Manual Type
Arc-extinguishing Medium:	Air
Speed:	Normal Type Circuit Breaker
Function:	Overload and Short-Circuit Protection
Poles Number:	1,2,3,4
Installation:	DIN Rail

Product Description

APPLICATION:

1. DZ47LE-63 RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 1 phase 240V and 3 phase 415V, rated current up to 63A.

2. When somebody gets an electric shock or the residual current of the circuit exceed the fixed value, the RCBO can cut off the power within the time of 0.1s automatically to protect the personal safety and prevent the equipment from the fault resulted by the residual current.

3. The RCBO can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions.

4. It can confirms to IEC61009

SPECIFICATION:

Number of Poles	1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Rated Operating Current (mA)	30, 100, 300, 500
Rated Non Operating (lΔN)(mA)	<=0.5lΔN
Rated Voltage (V)	240/415
Tripping Curve	C, D
Type	Electronic

WHY US?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

5. Unique design for packing.

6. Experienced salesmen offer one-to-one service.

FOR MORE INFORMATION:

www.tosun.com
www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
