| Prod Model: |
RDX6LE-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220V/380V |
| Rated Current: |
6~63A |
| Customized Design: |
Yes |
| Tripping Type: |
B, C, D |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Open Frame |
| Structure: |
ELCB |
| Poles Number: |
2 |
| Certification: |
CCC |
Product Description

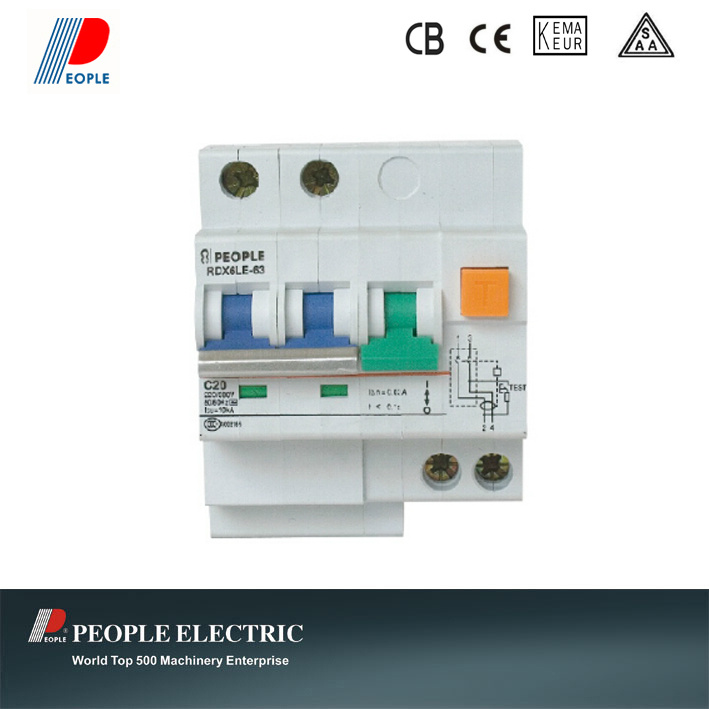

ApplicationRDX6LE-63 Residual circuit breaker,be mainly applied to the circuit of AC50Hz(60Hz), rated working voltage 220V or 380V, rated current up to 63A to protect human against the electric leakage indirectly, and to prevent the fire result from the ground fault due to the damaged insulation of the equipment.And it also has the overload protection for the building circuit or other similar circuit. And it has the powerful auxiliary function module, like auxiliary contact, alarm indication contact, shunt and underlvoltage release, remote release control.
This prodution conforms the standard of GB16817.1 and IEC61009-1.
Advantage:electronic type
compact structure,small volume,(two modules in width)
short circuit,overload and residual current protection
with netural line cut-off functions,safe and reliable
action function is not related with main circuit votlage
with two functional connection terminals,it has strong connection ability
with on-off indicator,it is easy to recognize the contact situation
rated current is indicated by different color handle.
high breaking capacity:10kA
with wide rang of rated current,it can be used as housing circuit main switch
united accessories series
type can provent the error tripping caused by electric equipment
