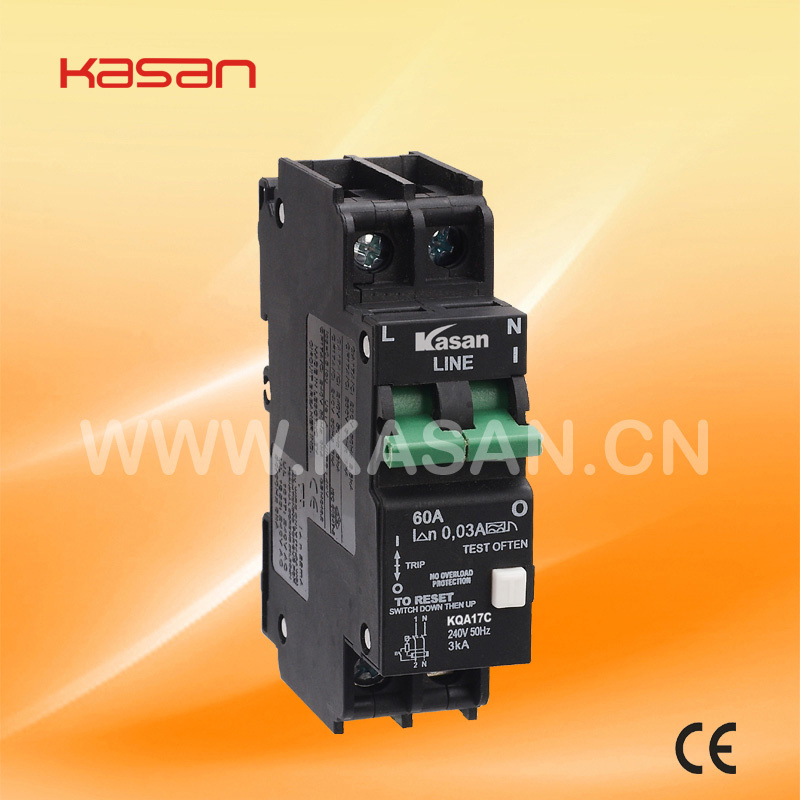

Earth Leakage Circuit Breakers Cbi ELCB (QA17C)

Earth Leakage Circuit Breakers Cbi ELCB (QA17C)
Price: US $ 3.00/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: QA17C
Markets: Africa
Type: Circuit Breaker
Function: RCCB
Breaking Capacity: Low Voltage Circuit Breakers
Certification: CE
Operation: Electric Type
Installation: Fixed
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Oil-immersed
Structure: Conventional Circuit Breaker

Product Description

SA AF QA QF and DIN Ranges

1. Special Earth Leakage Protection Devices Earth Leakage protection Devices Abbreviation Codes

All Products manufactured by CBI to meet special non-standard requirements of customers Suffix A Earth leakage protection device with overload. Single pole and Neutral / 3 pole and Neutral versions

2. Standard Current Ratings

Ampere ratings indicated are standard. Non-standard ratings can be provided (POR) Suffix C Earth leakage protection device ( switch disconnector) single pole and 3 pole versions

3. Earth Leakage Protection Device Sensitivities

Sensitivities indicated are standard. Non-standard sensitivities can be provided (POR) Suffix D DIN Rail Mounting only (Escutcheon Height 45MM

Residential +Commercial/ Industrial Clip in Earth Leakage Protection

Residential Earth Leakage Protection Device Single Device Single Phase with Overload Protection

Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack

QA17A 1+N 230VAC 2.5 30 26 15 20 30 40 50 63 10

Residential Earth Leakage Protection Device (Switch Disconnector) single Phase without overload protecton

QA17C 1+N 230VAC 2.5 30 26 63 10

Residential Earth leakage Protection Device, 3 phase with overload protection

SA36A 3+N 415VAC 2.5 30 78 15 20 30 40 50 63 5

Residential Earth Leakage Protection Device (Switch Disconnector) 3 phasw withour overload protection

SA36C 3+N 415VAC 2.5 30 78 60 5

Commerical/ Industrial Earth Leakage Protection Device Single phase with overload protection

QF17A 1+N 230VAC 5 30 26 15 20 30 40 50 63 10

QF14A-D 1+N 240VAC 6 30 36 6 10 16 20 30 40 50 63 10

Commerical/ Industrial Earth Leakage Protection Device, Single Phase with overload protection. Mini Rail Mounting

SF15A 1+N 240VAC 5 30 65 80 100 10

Commercial/ Industrial Earth leakage protection Device (Switch Disconnector) Single Phase without overload portection

QF17C 1+N 230VAC 5 30 26 63 10

QF14C-D 1+N 240VAC 6 30 26 63 10
Product Type KQA17A KQA17C
Standard Ampere Ratings (A) 5 and 63A 40 and 63A
Sensitivity (mA) 30 (CE) 30 (CE)
Number of Poles 1+N 1+N
Equipment Type Eearth Leakage Eearth Leakage
Rated Voltage (V) 230 (CE) 230 (CE)
Rated Interrupting 2, 5 kA -
Withstand Capacity (kA) - 2, 5 kA
Weight (kg) 0.26 0.24
Tripping Curves (1)(standard) 2(1), 3 -
Operating Temperature -40º C to+60º C -40º C to+60º C
