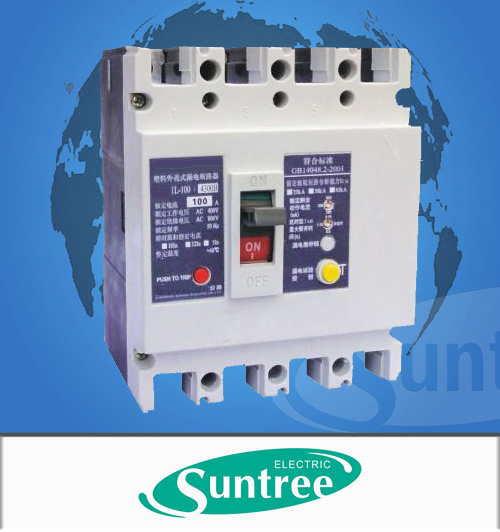

Earth Leakage Moulded Circuit Breakers (SM1L-100A)

Name: Earth Leakage Moulded Circuit Breakers (SM1L-100A)
Brand: all-electronics-online.com
SKU: 706438655
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 160/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM1L-100A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	690V
Certificate:	CE-LVD, RoHS
Model:	Ns MCCB
Rated Working Current:	12.5 to 1250A
Rated Insulating Voltage:	950V
All Standard:	Iec947-2
Type:	Circuit Breaker
Function:	OVP(Overvoltage Protection)
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

SM1L series moulded case circuit break with residual current production. Rated insulation Voltage is 800V. It applies to circuit of AC 50Hz, rated working voltage 400V and rated working Current up To 630A, for infrequent switch over and infrequent start of motor.
With overload, Short Circuit and under-voltage production, it can Protect circuits and power-supply equipment from damage, can also Be used for production from damage and any potential fire-hazard Caused by long Existing earth fault which can not be detected by Over-current production. The value of residual current is selectable.

Type	Frame Rated Current Inm(A)	Rated Current In(A)	Rated Ultimate Short Circuit Breaking Capacity Icu(kA)	Rated Service Short Circuit Breaking Capacity Icu(kA)	Rated Residual Action Current I n(mA)	Rated Residual Non-action Current I no(mA)
SM1L-100 SM1L-225 SM1L-400 SM1L-630	100 225 400 630	16,20,32,40,50 63,80,100 100,125,140, 160 180,200,225 225,250,315 350,400 400,500,630	35 35 50 50	22 25 35 35	100/300/500 300/500/1000	1/2I no

Conventional heat current lth(A)	Rated insulating voltage Ui(V)	Rated working current le(A) AC 400V DC 220V	Rated current of frame lnm(A)
1	400	0.3	0.15	Used as auxiliary contact
2	400	0.3	0.15	≤ 225
3	400	0.4	0.2	≥ 400

Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
