| Prod Model: |
SLT-130SD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Range (V): |
6.0-12.0 |
| Nominal (V): |
9.00 |
| No Load Speed: |
6122r/Min |
| No Load Current: |
0.037A |
| At Max Efficiency Speed: |
4798r/Min |
| At Max Efficiency Current: |
0.134A |
| At Max Efficiency Torque: |
1.46mn.M |
| At Max Efficiency Output: |
0.63W |
| Stall Torque: |
6.75mn.M |
| Stall Current: |
0.486A |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Product description
Voltage:9V
No Load Speed:6122pm
No Load Current:0.037A
Load Speed:4798rpm
Load Current:0.134A
Load Torque:1.46mn.M
Output:0.63W
Stall Torque:6.75mn.M
Stall Current:0.486A

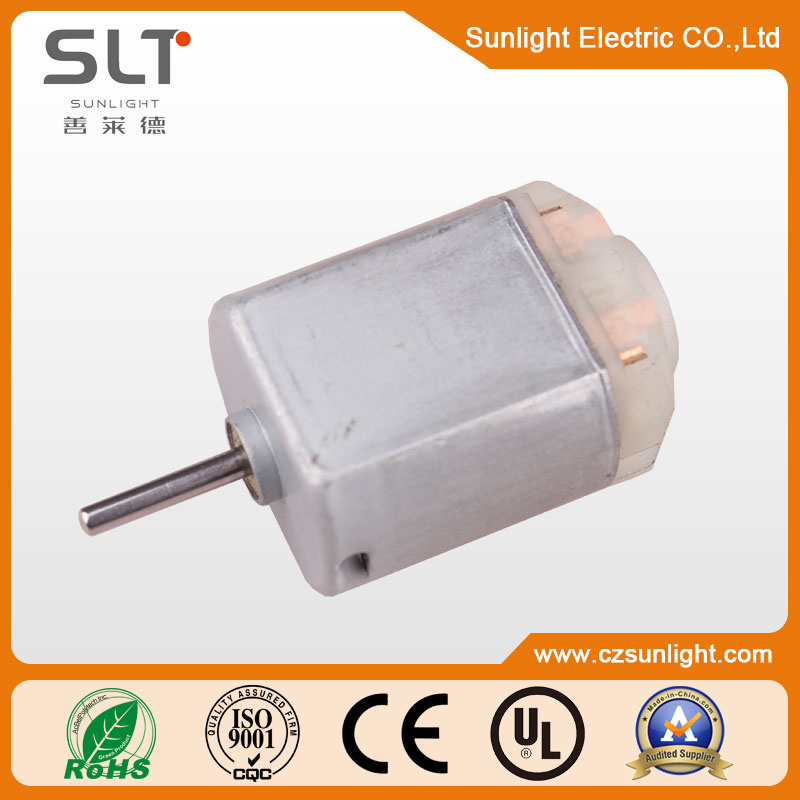

Advantages of Easy Carry 9V Inexpensive Brush DC Mini Motor A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wideAdvantages of Easy Carry 9V Inexpensive Brush DC Mini Motor Specification | Model | SLT-130SD-10420 | SLT-130SD-08610 |
| Voltage | Operating Range (V) | 6.0-12.0 | 9.0-15.0 |
| Nominal (V) | 9.00 | 12.00 |
| NO Load | Speed | r/min | 6122 | 5278 |
| Current | A | 0.037 | 0.028 |
| At Max Efficiency | Speed | r/min | 4798 | 4004 |
| Current | A | 0.134 | 0.088 |
Torque | mN.m | 1.46 | 1.4 |
| g.cm | 14.9 | 14.3 |
| Output | W | 0.63 | 0.49 |
| Stall | Torque | mN.m | 6.75 | 5.81 |
| g.cm | 68.9 | 59.2 |
| Current | A | 0.486 | 0.277 |
Application of Easy Carry 9V Inexpensive Brush DC Mini Motor :
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Electrical tools and Garden tools.
Product Structure
1,Casing bearing;
2,totor;
3,magnet shoe
4,brush group
5,diverter
6,terminal
7,end cap bearing
8,end cover
9,cabinet
10,shaft extension
