Easy Field Assembly Fiber Optic Sc Fast Connector

Name: Easy Field Assembly Fiber Optic Sc Fast Connector
Brand: all-electronics-online.com
SKU: 805577405
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 1-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC connector
Insertion Loss:	Upc<0.2dB, APC<0.3dB
Polishing:	APC
Cable Applicable:	3.1 X 2.0 mm Drop Cable
Material:	Plastic or Steel
Mode:	Sm,mm
Type:	Fiber Optic Components
OEM:	Available
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

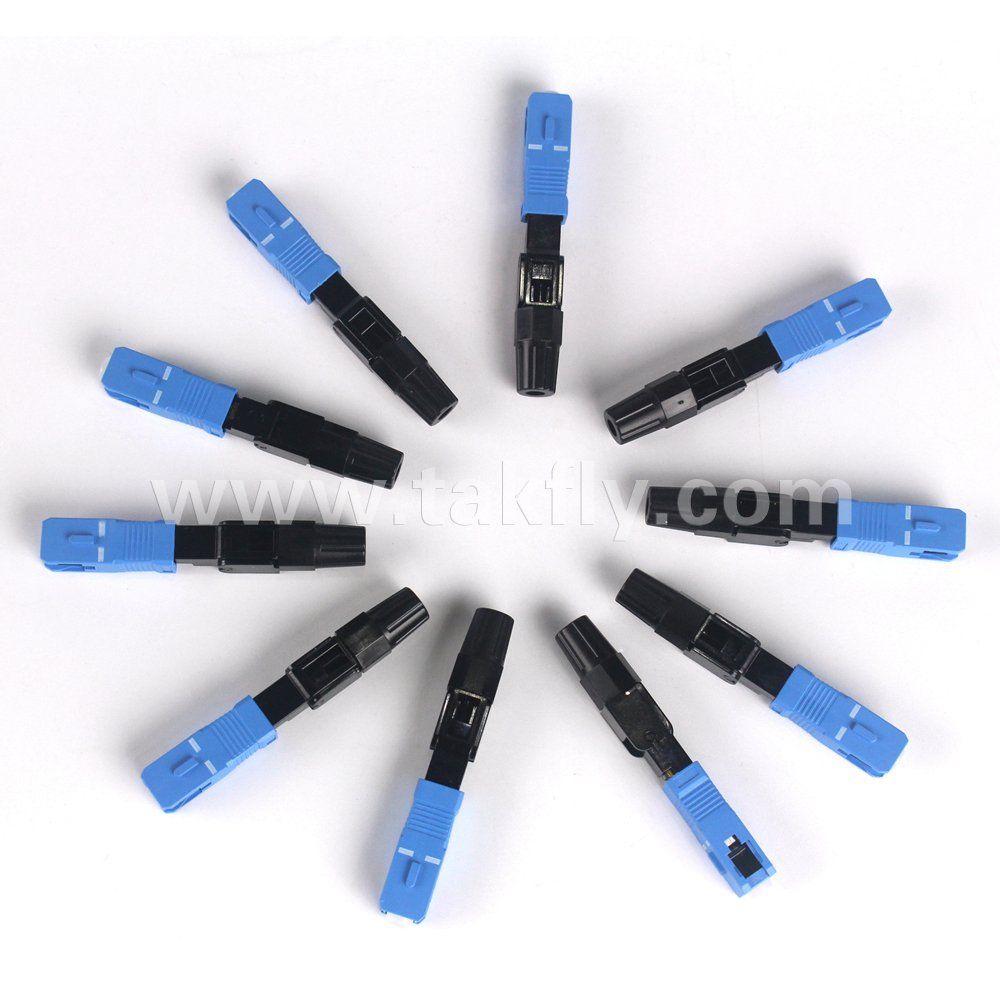

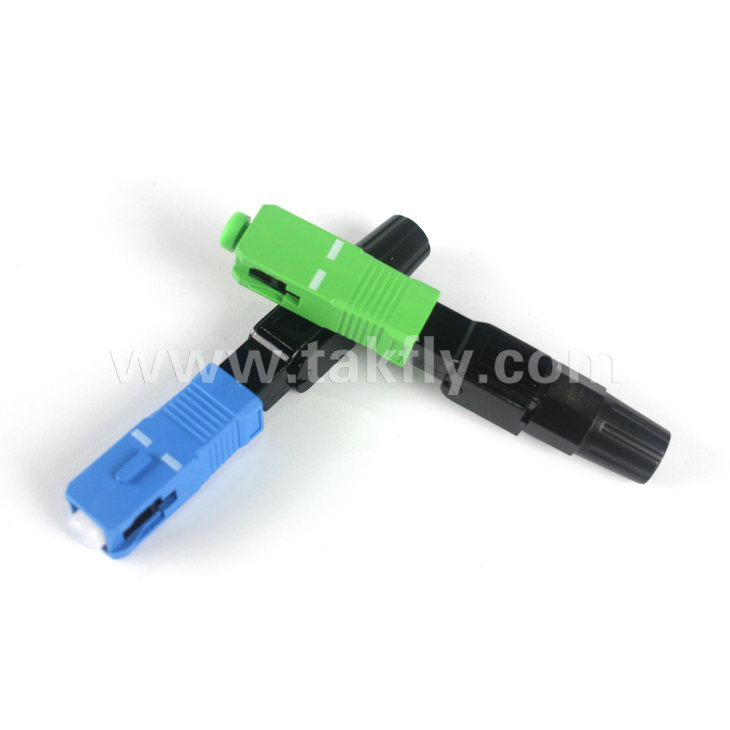

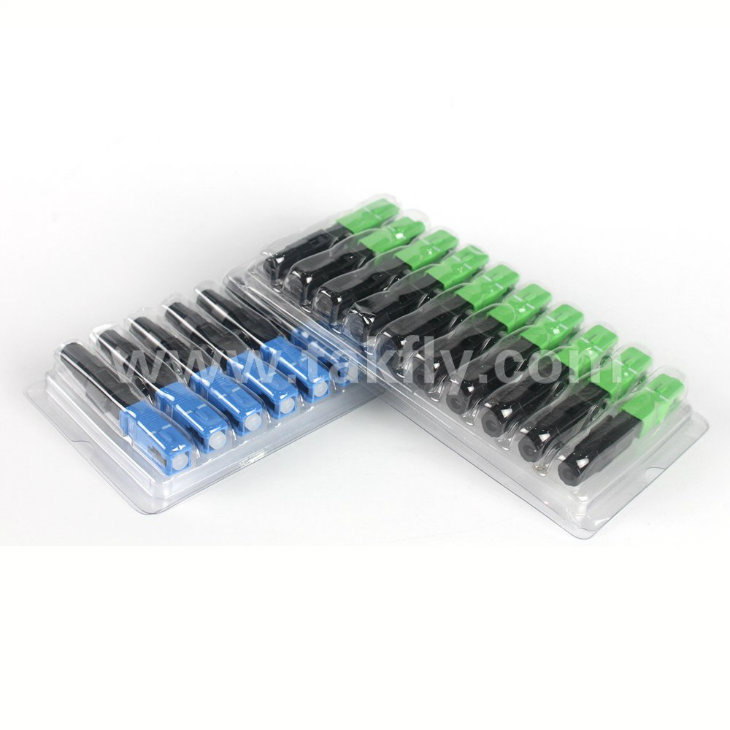

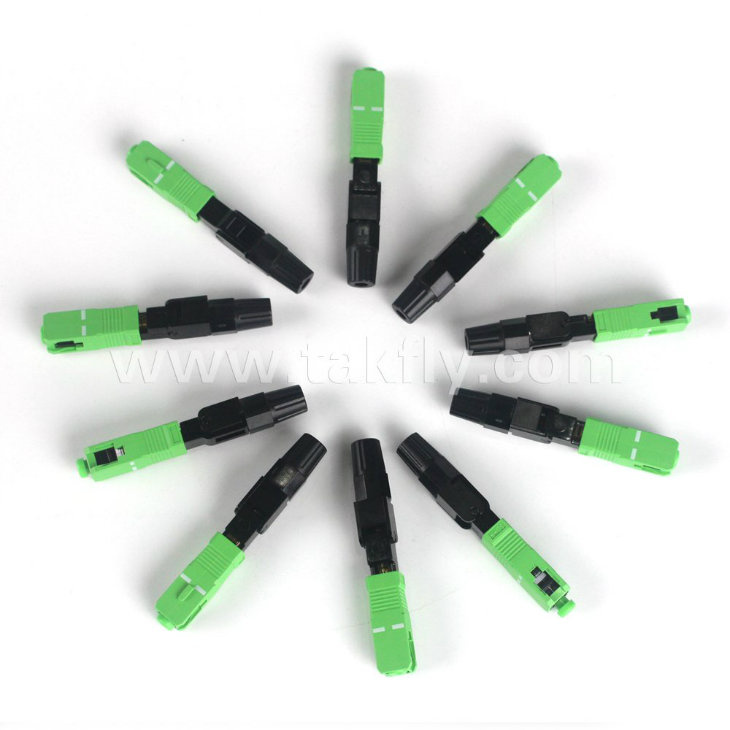

Easy Field Assembly Fiber Optic SC Fast Connector

Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.

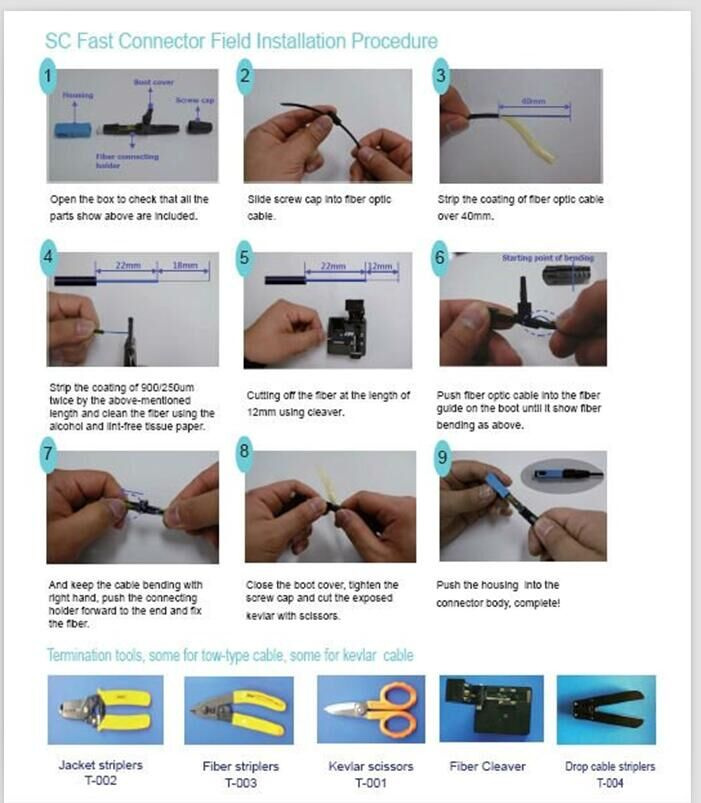

It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.adopted fiber preinstalled structure, and convenient for field installation.

Features:
1. Easy to operate can save time
2. 100% qualified, reduce the maintenance cost.
3. Easy to assembling with mechanical splice and no polishing
4. High stablity ,low insertion loss ,high return loss

Technical Parameters:

ITEM	Technical Parameters
Application	FTTH indoor&outdoor
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insertion loss	≤ 0.2dB(1310nm & 1550nm)
Return loss	≤ -50dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
On-line tensile strength (20 N)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Mechanical durability (500 times)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Using temperature	-40~+75°C

Application:
1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
