Easy Install Car/ Motorcycle GPS Tracker 303f Vehicle GPS Tracking Device
| Price: |
US $ 20.16-21.77/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
GPS303F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Size: |
8.9×5.0×1.6cm |
| Weight: |
70g |
| Band: |
850/900/1800/1900MHz |
| OEM: |
Silk Print, Customize Package for Free |
| GPS Accurancy: |
5m |
| Network: |
GSM/GPRS |
| Application: |
Vehicle, Motorcycle etc Tracking |
| Fuel Sensor: |
Optional |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description

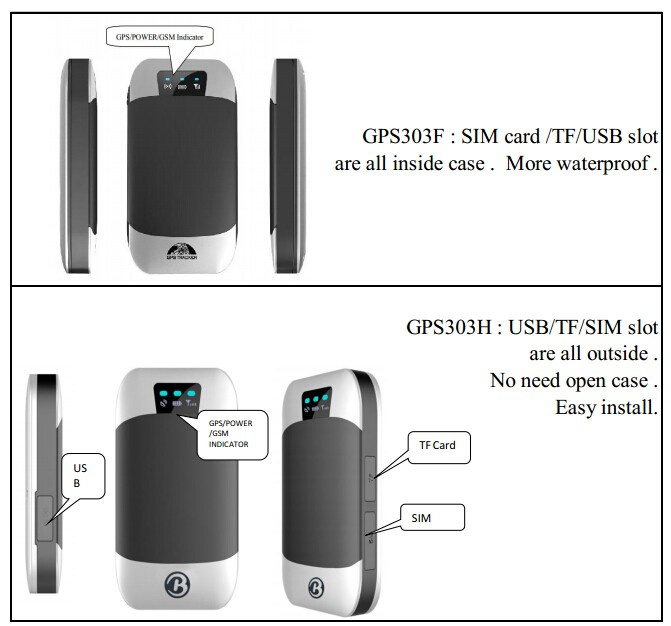

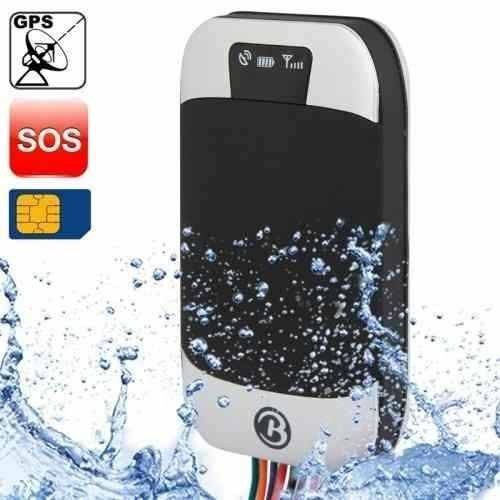

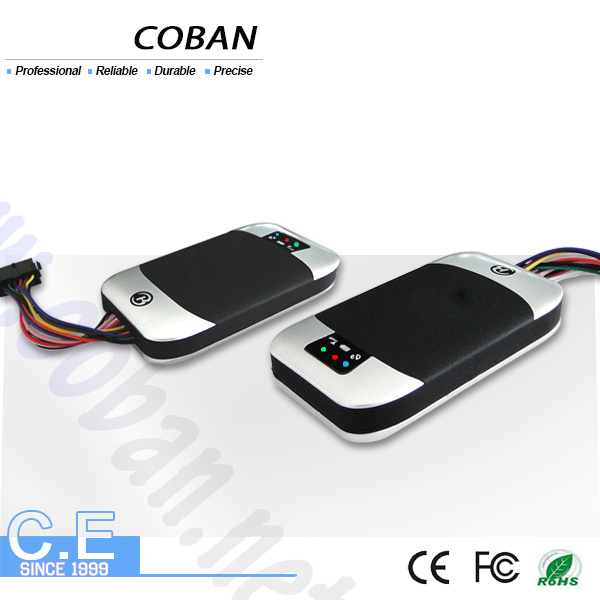

Easy Install Car/ Motorcycle GPS Tracker 303f Vehicle GPS Tracking Device
Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
Features
1. Handheld and Vehicle purpose.

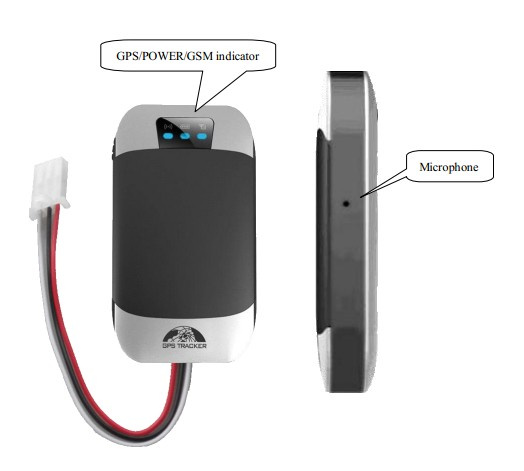

2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
This device is divided into the following four types according to the function parts:
Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.
Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.
Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement
Type D: Add remote controller to ARM & DISARM on the basis of type C.
Fuctions
-Auto track continuously
-Automatic update positions of vehicle turns
-Location based service (LBS)
-Voice Monitor
-Low battery alarm
-External Power off alarm (Suitable for B, C and D model)
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm (Option, for model B, C, D)
- Fuel level measurement, fuel theft and leak alert (Option, for model C, D)
-Remote cut off the Oil and Power System (Option, for model C, D)
-Function of Remote Controller (Option, for model D ONLY)
-Check the Vehicle State
-Reset Hardware
-Sleep Mode(save battery mode)
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting/tracking
Multiple Tracking Ways:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website, demo ID: Demo, password: 8888
It is ok to track 10, 000PCS units in platform at one time!
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link | Content | Specifications |

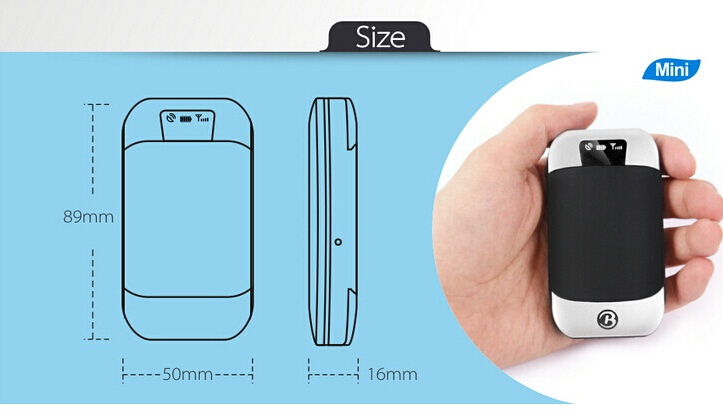

| DIM. | 89*50*16mm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V-24v
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Tem. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
| | |
Waranty:
- All products have been strictly quality checked in house before packing
- All products have been well packed before shipping
- One year warranty is provided
- We will bear maintenance cost during warranty
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Contacts:
Grace Ma
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
