| Prod Model: |
T209 |
| GPS Chipset: |
Ublox 7020 |
| GSM Chip: |
Mt6261 |
| Remote Diagnose Function: |
Support |
| Over Speed Alarm: |
Support |
| Frequency Bands: |
850/900/1800/1900 MHz |
| GPRS: |
Class12, TCP/ IP Build in GSM Module |
| Size: |
71(L)×49(W)×24(H)mm |
| Colors: |
Black |
| Feature: |
Platform/APP Free of Charge Lifetime |
| Working Voltage: |
9-50V DC |
Product Description
T209 is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna, Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle remotely via SMS or GPRS. Easy to install, no wiring harness.
Note: Please kindly note our APP/Platform is free of charge lifetime
T209 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose
Applying directions
12-24V cars,vehicles, Taxi, fleet management

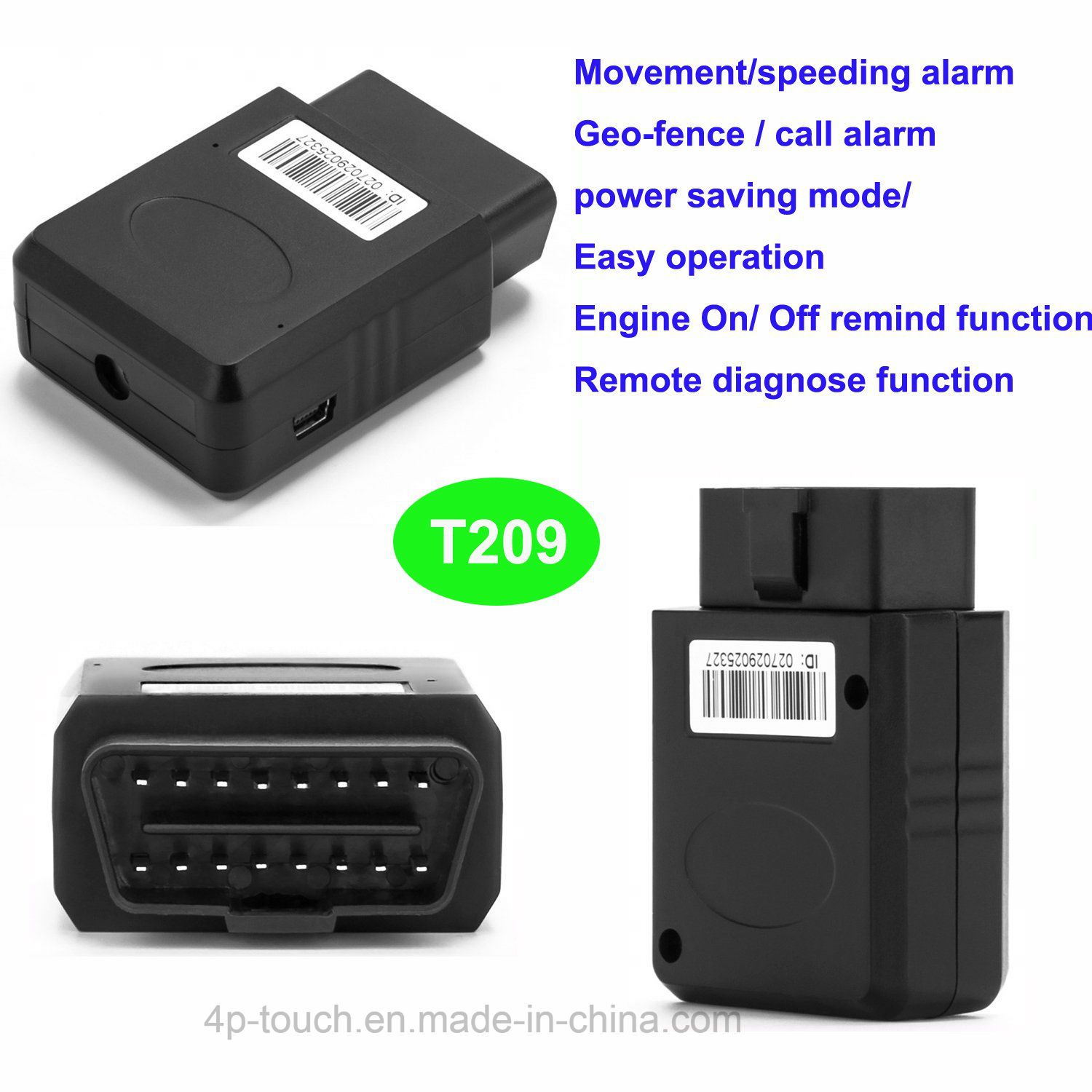

obd gps tracker main function
Real-time tracking
Movement/speeding alarm
Power failure alarm(Contains battery)
Geo-fence
add power saving mode
add call alarm
low battery alarm(optional)
No need to install, insert can be used
easy operation, Powered via OBD (without breaking cable)
Remote diagnose function
Remind of maintenance
Report of driving data
Alarm for security issue
trip fuel consumption statistics
to get the total mileage of the vehicle
Engine On/ Off remind function
Technical parameter
GSM:850/900/1800/1900 Quad band
GPRS: Class12, TCP/IP
Working Voltage:9-50V DC
Working current:≈22mA (12vDC
Working current:≈12mA (24vDC)
GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky)
GPS Precision:10m(2D RM)
Working temperature:-20ºC~+70ºC
Working humidity:20%~80%RH
Measurement:71(L)×49(W)×24(H)mm
GPS chips: U-bolx
GSM chips: MT6261
It supports all OBD-II protocols 0.Automatic
1) SAE_ J1850_VPW
2) SAE_J1850_PWM
3) ISO_15765_STD_500
4) ISO_15765_EXT_500
5) ISO_15765_STD_250
6) ISO_15765_EXT_250
7) ISO_9141_08_Init
8) ISO_9141_94_Init
9) ISO_14230_Slow_Init
10) ISO_14230_Fast_Init
What is an OBDII connector?
Mechanics will use your OBDII connector to plug diagnostic equipment into your car. Because of this, the OBDII connector is designed to be accessed easily. The T209 capitalizes on this easily accessible connector to provide you with a convenient method of installing and removing your GPS tracking system. If the port is needed for vehicle diagnostics, the mechanic must simply unplug the T209, and reconnect it when finished servicing the vehicle.

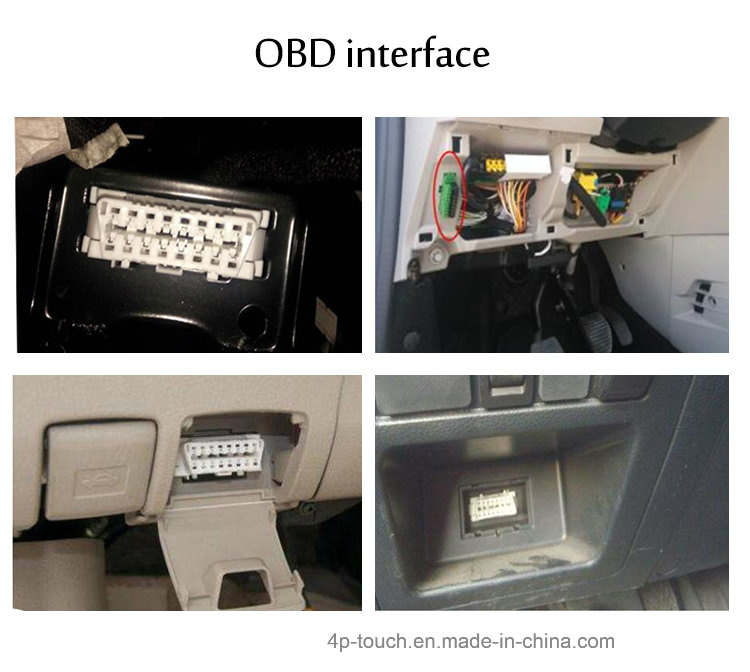

How to find your OBDII Connector?
Start by looking around the underside of your dashboard, below your steering wheel but above your gas and brake pedals. The diagram below will show you the general area to search.
How to tracking ?
The GPS devices support phone tracking and 28 languages website tracking. ( English Polska Vietnamese Turkey Russian German French Spanish Arabic Portuguese and so on)
There are five types tracking way:

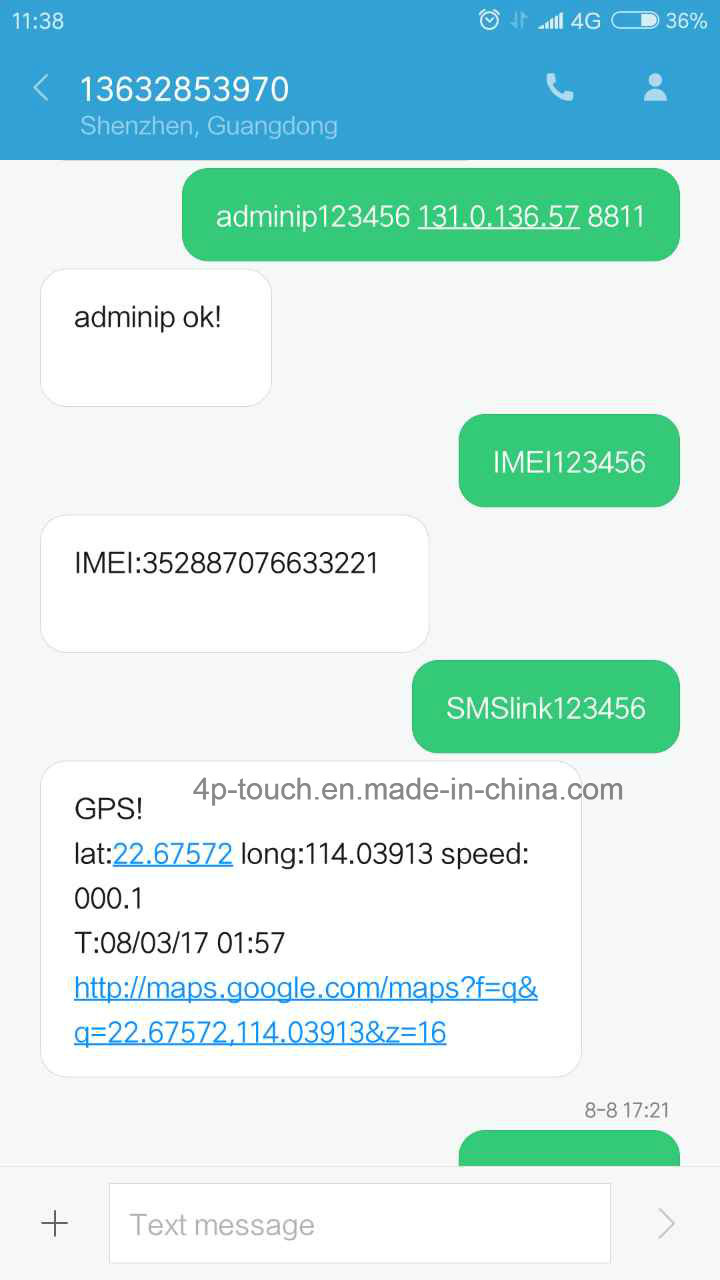

1>: SMS + Map software;
2>: PDA Cell Phone;
3>: Real time tracking, and track via your computer;
4>: simple & useful real time tracking via our website www.12gps.com

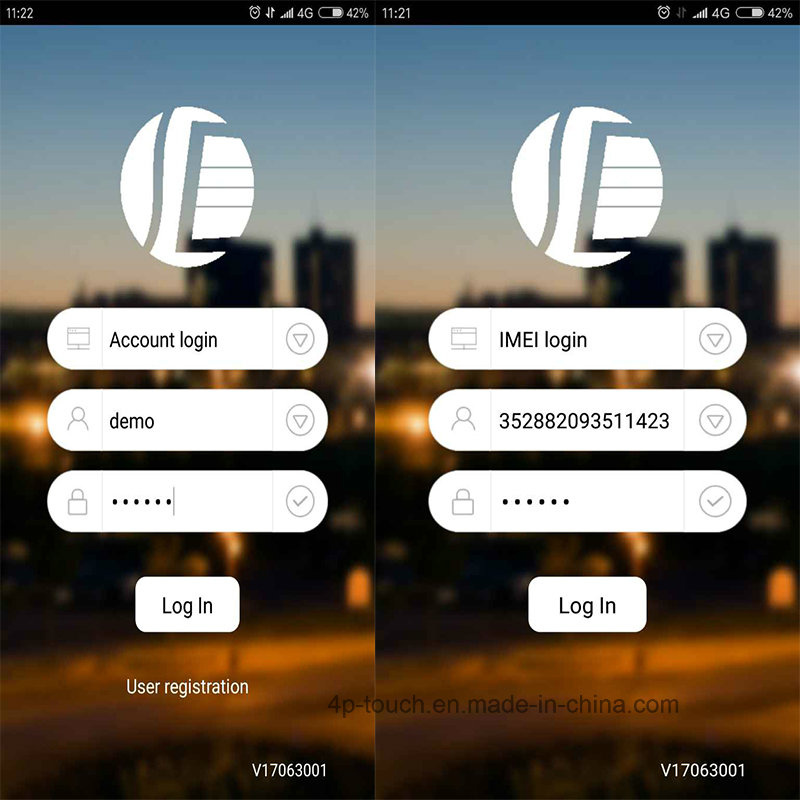

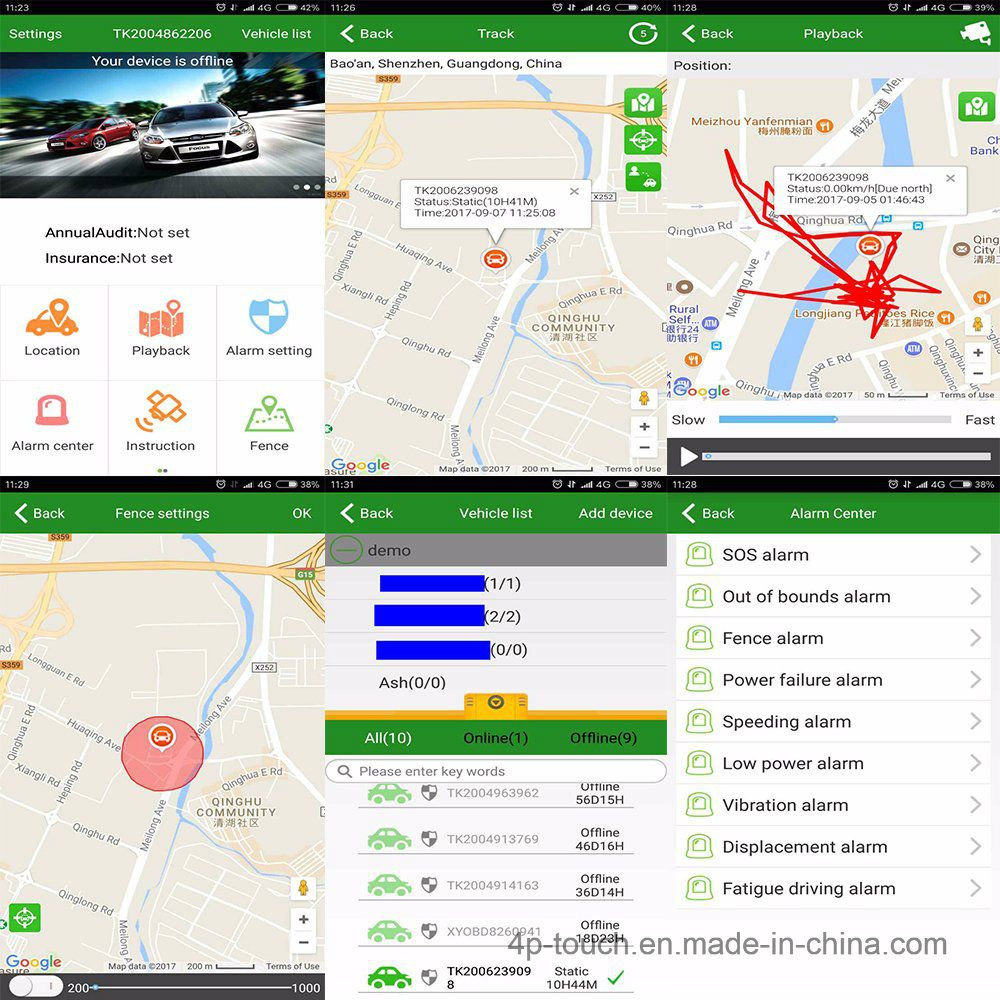

5 >: IOS and Android APP
Our websiet tracking platform and app free of charge any timeNote: our 2G/GSM GPS tracker are ok with 3G SIM card ,just check with phone operator ,
the 3G SIM card is compatible with 2G GSM network is fine. Because even 2G is quit from market, but the 3G network still use the 2G base station, so the voice +data feature still valid as isOur Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How about the shipping?
For sample dispatch, we normally send through International Courier door to door(such as DHL, FedEx, UPS, TNT etc.)
If any questions or comments, please kindly feel free to contact us.
