Prod Model: |
MT08 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
62*50*22mm |
Free Tracking Platform: |
Yes |
Fuel Monitoring: |
Yes |
Arm/Disarm: |
Yes |
Stop The Car: |
Yes |
Built-in Antenna: |
Yes |
Waterproof Design: |
Yes |
Sos Button: |
Yes |
Anti-Theft: |
Yes |
Over Speed Alert: |
Yes |
Product Description

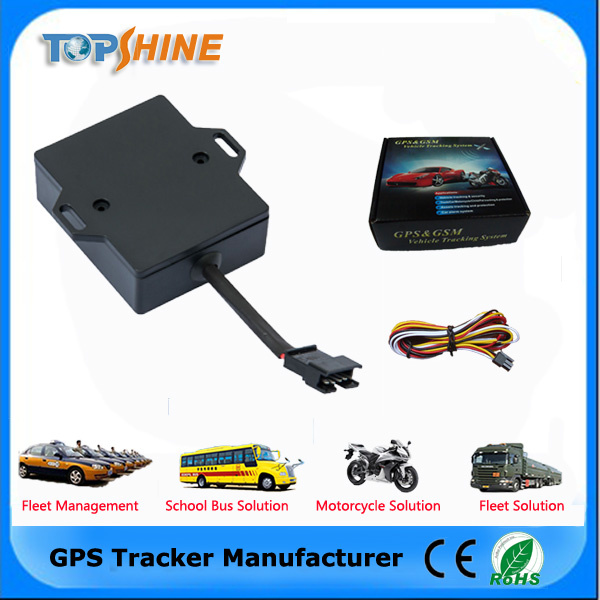

Easy Install Cheapest Mini GPS Tracker for vehicleBrief Description
MT08 is high cost-effective mini GPS motorcycle tracker with waterproof design. It is suitable for all kinds of vehicles and fleet management. MT08 has just one digital input and one output, with normal functions of GPS trackers. Functions of MT08Real time tracking for motorcycle / private car | Waterproof GPS Tracker |
Track by time interval | Remote engine cut off to stop vehicle (Optional) |
Track by distance interval | SOS emergency alarm (Optional) |
Track by angle interval | Fuel consumption monitoring (Optional) |
Online Reports | Engine ON/OFF alarm |
Geo-fence setting / alarm | Speeding alarm / over speed report |
Power saving / Sleep mode | Check real address name |
Check Google Map link | Monitor from online free tracking platform |
Technical Specifications of MT08 Items | Specification |
Dimension | 63*50*20mm |
Weight | 85g |
GPS Chip | uBlox 7 |
GPS Sensitivity | -159dBm |
GPS Accuracy | 10 meters, 2D RMS |
GSM Chip | M35 |
GSM Frequency | GSM850/900/1800/1900MHz |
Hot Start Warm Start Cold Start | 1sec, average 38sec, average 42sec, average |
Operating Temperature | - 20 deg C ~ 65 deg C |
LED | 2 LED lights to show GPS / GSM working status |
Charge Voltage | 9V~36V |
Waterproof | Yes |
Button | SOS button (optional) |
Sensor | Fuel, temperature, gravity, motion / shock, crash / accident, alcohol, door sensor, etc. |
Data Logger | 2MB default |
Input / Output | 2 digital inputs, 1 output, 1 alternative analog input, 1 12V power wire, 1 GND; 1 internal RS-232 USB port |
Standard Packing
Main unit 5pin wiring
Optional Accessories
Fuel sensor
Relay
SOSbutton
Microphone
Shipment Terms
We usaually use DHL, FeDex, EMS express for small orders. You can also assign your special couriers.
Unix box: color box or neutral white box / yellow box.
Shipment: 3 to 5 days after payment.Our ServiceOur price comes with high quality products,lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.With purchase of our GPS tracker, there is no additional or hidden cost to use our tracking platform. We can creat free user name and password for you to monitor various vehicles. Why choose us
1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.

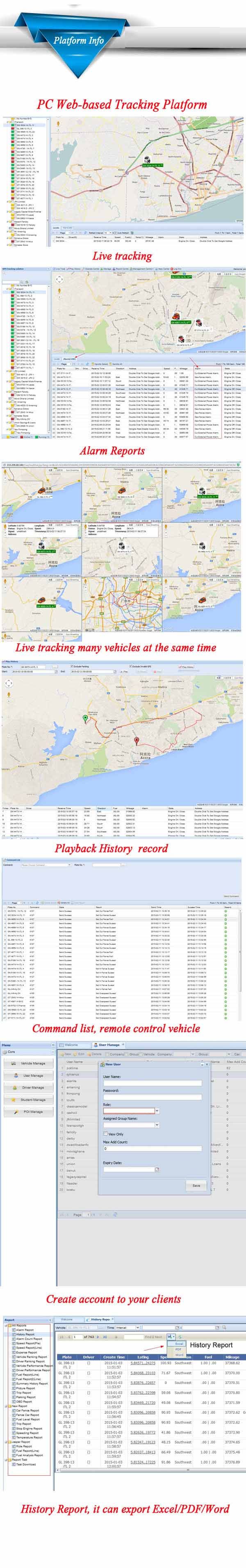

2.Provide two free tracking platform, one is for PC ,other is for moblie
phone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:
PC : www.track-car.com
Mobile : www.track-car.com/phone.jsp
user name: hongkong
Password: 123
3. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.
4. We are good at customization job, if you have any good idea in gps tracker, we will try to achieve for you.
